18.2. Read an EDI Survey#

This tutorial is the first practical step in most pyCSAMT workflows. It shows how to read one EDI file, a line directory, or a recursive survey tree, then turn the result into a station inventory that can be inspected, saved, passed to quality control, or used by downstream processing.

The goal is simple:

load the survey once, verify what was found, and keep a clean object for the next processing step.

18.2.1. What You Will Learn#

After this tutorial you should be able to:

read EDI files through the public pycsamt.api.read_edis() API
understand the returned APISurvey object
inspect station names, paths, frequency counts, and section availability
convert the survey summary to a pandas dataframe
handle recoverable parser errors during first inspection
choose a duplicate-station policy
run equivalent command-line inspection commands
decide whether the survey is ready for QC, static-shift correction, or inversion preparation

18.2.2. Input Layouts#

read_edis accepts a single file, a directory, a glob-like path, or a sequence of sources. The examples below use the bundled WILLY L18PLT line:

data/AMT/WILLY_DATA/L18PLT

Replace that path with your own EDI directory when you repeat the workflow. A common field layout is one folder per line:

data/AMT/WILLY_DATA/
    L18PLT/
      18-001A.edi
      18-002U.edi
      18-003A.edi
    L22PLT/
      22-001A.edi
      22-002U.edi

If you pass data/AMT/WILLY_DATA with recursive=True, pyCSAMT scans the line folders and reads every .edi file it can discover.

For a flat directory, the layout can be simpler:

data/
  edis/
    S001.edi
    S002.edi
    S003.edi

The same API call works for both layouts.

18.2.3. Read a Survey Directory#

Use pycsamt.api.read_edis() for the public v2 API. During first inspection, strict=False is usually the best choice because it keeps reading the remaining stations when one file has a recoverable issue.

>>> from pycsamt.api import read_edis
>>> survey = read_edis(
...     "data/AMT/WILLY_DATA/L18PLT",
...     recursive=False,
...     strict=False,
...     on_dup="replace",
...     progress=False,
... )
>>> print(survey)
APISurvey: edi_survey
sites: 28
stations: 23-18-001A, 23-18-002U, 23-18-003A, 23-18-004A, 23-18-005U, 23-18-006A, 23-18-007U, 23-18-008U, ...
source: data/AMT/WILLY_DATA/L18PLT

The returned object is an APISurvey. It is a friendly public facade over the lower-level EDI collection. It keeps the high-level workflow readable while still exposing the raw collection when you need advanced operations. The 23- prefix on every station name is the EDI DATAID field (23-18-001A, encoding the 2023 acquisition year), reported as-is rather than trimmed – worth knowing before matching these names against a QC or confidence table keyed on the plain 18-001A form.

>>> from pathlib import Path
>>> print(survey.n_sites)
28
>>> print(survey.stations[:5])
['23-18-001A', '23-18-002U', '23-18-003A', '23-18-004A', '23-18-005U']
>>> print([Path(p).name for p in survey.paths[:5]])
['18-001A.edi', '18-002U.edi', '18-003A.edi', '18-004A.edi', '18-005U.edi']
>>> collection = survey.collection
>>> same_collection = survey.to_collection()
>>> collection is same_collection
True

survey.paths itself returns fully-resolved absolute filesystem paths, not bare filenames – Path(p).name is applied above to keep the printed list short and portable across machines; use the raw survey.paths value when you need the actual location on disk. survey.collection and survey.to_collection() return the identical EDICollection object, not just the same type – to_collection() is a convenience alias, not a fresh copy, and is the type used by many lower-level EDI, site, editing, and QC helpers.

18.2.4. Read One EDI File#

For a single EDI file, use pycsamt.api.read_edi() when you want the raw EDIFile object directly:

>>> from pycsamt.api import read_edi
>>> edi = read_edi("data/AMT/WILLY_DATA/L18PLT/18-001A.edi")
>>> print(edi.station)
23-18-001A

If you want the same APISurvey interface used by the rest of this tutorial, read the file with read_edis instead:

>>> survey1 = read_edis(
...     "data/AMT/WILLY_DATA/L18PLT/18-001A.edi",
...     recursive=False,
...     progress=False,
... )
>>> print(survey1.n_sites)
1
>>> print(survey1.summary())
APIFrame: edi_survey_summary
kind: edi.summary
shape: 1 rows x 6 columns
columns: station, path, n_freq, tipper, spectra, ts
numeric: 1 columns
missing: 0.0%
source: data/AMT/WILLY_DATA/L18PLT/18-001A.edi

This is useful when you are writing reusable code that should accept either one file or many files.

18.2.5. Build a Station Inventory#

The fastest survey inventory is survey.summary(). It returns an APIFrame with a compact station-level table.

>>> summary = survey.summary()
>>> print(summary)
APIFrame: edi_survey_summary
kind: edi.summary
shape: 28 rows x 6 columns
columns: station, path, n_freq, tipper, spectra, ts
numeric: 1 columns
missing: 0.0%
source: data/AMT/WILLY_DATA/L18PLT
>>> inventory = summary.to_pandas(copy=True)
>>> compact = inventory.copy()
>>> compact["path"] = compact["path"].map(lambda value: Path(value).name)
>>> print(compact.head(5).to_string(index=False))
   station        path  n_freq  tipper  spectra    ts
23-18-001A 18-001A.edi      53   False    False False
23-18-002U 18-002U.edi      53   False    False False
23-18-003A 18-003A.edi      53   False    False False
23-18-004A 18-004A.edi      53   False    False False
23-18-005U 18-005U.edi      53   False    False False

The figures in this tutorial are generated by docs/scripts/generate_tutorial_read_edi.py. This overview shows that every loaded station has 53 impedance-frequency rows and that the bundled line does not include tipper, spectra, or time-series sections:

Station inventory and optional EDI section availability for L18PLT.

Both panels confirm the same two facts visually: the top panel’s markers sit on a flat line at 53 for every one of the 28 stations (no station lost frequencies during acquisition or parsing), and the bottom panel is solid dark blue across the whole period range for every station (every frequency sample is present, not just counted). A ragged top line or a mottled bottom panel would be the visual signal to investigate specific stations before moving on, rather than a uniform coverage problem.

The default columns are:

station: Station name inferred from the EDI file.
path: Source file path.
n_freq: Number of frequency rows read from the impedance section.
tipper: Whether non-empty tipper data are available.
spectra: Whether a spectra section was parsed.
ts: Whether a time-series section was parsed.

For a focused table, request the columns you want:

>>> station_table = survey.summary(
...     fields=["station", "n_freq", "tipper", "path"],
... )
>>> focused = station_table.to_pandas(copy=True)
>>> focused["path"] = focused["path"].map(lambda value: Path(value).name)
>>> print(focused.head(3).to_string(index=False))
   station  n_freq  tipper        path
23-18-001A      53   False 18-001A.edi
23-18-002U      53   False 18-002U.edi
23-18-003A      53   False 18-003A.edi

Save the inventory for a field notebook, spreadsheet review, or processing report:

>>> inventory.to_csv("survey_inventory.csv", index=False)

18.2.6. Inspect Stations Programmatically#

The APISurvey object behaves like a small collection. You can iterate over loaded EDI objects, select one by name, or access a station by index.

>>> for i, edi in enumerate(survey):
...     if i >= 3:
...         break
...     print(edi.station, Path(edi.path).name)
23-18-001A 18-001A.edi
23-18-002U 18-002U.edi
23-18-003A 18-003A.edi
>>> first = survey[0]
>>> type(first).__name__, first.station
('EDIFile', '23-18-001A')
>>> station = survey.stations[0]
>>> selected = survey.get_site(station)
>>> selected.station == first.station
True

Dropping the if i >= 3: break guard iterates over all 28 stations instead of just the first three shown here. first is a real EDIFile, the underlying EDI object, and its station is still 23-18-001A – the DATAID-derived name is consistent at every level of the API, not just at the survey-table level. get_site accepts the common identifiers used by the collection resolver, including station names and file stems, and selected above resolves to the exact same station as first.

get_site returns None by default when a station cannot be resolved, rather than raising:

>>> maybe_site = survey.get_site("S999")
>>> maybe_site is None
True
>>> if maybe_site is None:
...     print("Station not found")
Station not found

18.2.7. Handle Parser Errors#

EDI files from different acquisition or processing software can vary in metadata style. For a first pass, keep strict=False and inspect parser errors after loading:

>>> errors = survey.errors()
>>> print(f"{len(errors)} read error(s)")
0 read error(s)
>>> for path, exc in errors[:10]:
...     print(path, type(exc).__name__, exc)

The bundled line reads without parser errors, so the second loop above prints nothing – on a survey with real parser issues, each line would show the offending file path, the exception class, and its message, which is usually enough to tell a recoverable metadata quirk apart from a file that needs re-export.

Use strict=True in automated validation jobs when the workflow should fail as soon as one EDI cannot be read:

>>> strict_survey = read_edis(
...     "data/AMT/WILLY_DATA/L18PLT",
...     recursive=False,
...     strict=True,
...     progress=False,
... )
>>> strict_survey.n_sites
28

This stricter mode is useful before committing data to a project archive or before running a batch inversion pipeline. On this clean bundled line, both modes load the same 28 stations; the difference only shows up on a survey with a genuinely broken file.

18.2.8. Choose a Duplicate Policy#

Station names should normally be unique inside one survey or line. When two EDI files resolve to the same station name, on_dup controls which object is kept in the returned survey:

on_dup="replace": Keep the last station discovered for that name. This is the default and is useful when a later file is the corrected version.
on_dup="keep": Keep the first station discovered for that name. This is useful when the directory contains temporary exports that should not override the original file.

Example:

>>> multi_line = read_edis(
...     "data/AMT/WILLY_DATA",
...     recursive=True,
...     on_dup="keep",
...     progress=False,
... )
>>> len(multi_line.stations)
128
>>> multi_line.stations[:5]
['23-18-001A', '23-18-002U', '23-18-003A', '23-18-004A', '23-18-005U']
>>> multi_line.stations[-3:]
['23-34-023U', '23-34-024U', '23-34-025A']

data/AMT/WILLY_DATA contains five line folders (L18PLT, L22PLT, L26PLT, L30PLT, L34PLT), and this recursive read finds all 128 stations across them, distinguished by their line-number prefix (18-, 22-, 26-, 30-, 34-). No station name collides across lines here, so on_dup="keep" never actually has to choose between two files – but on a project where two exports genuinely share a station name, this is exactly the setting that decides which file wins. If duplicate names are unexpected, inspect the source paths and fix the station metadata or file selection before continuing.

18.2.9. Control Progress Output#

The progress argument is intended for both notebooks and scripts:

>>> interactive = read_edis("data/AMT/WILLY_DATA/L18PLT", progress="auto")
>>> quiet = read_edis("data/AMT/WILLY_DATA/L18PLT", progress=False)
>>> always_show = read_edis("data/AMT/WILLY_DATA/L18PLT", progress=True)
>>> interactive.n_sites, quiet.n_sites, always_show.n_sites
(28, 28, 28)

progress only changes whether a progress indicator is written to the console while reading; it never changes which stations are loaded. Use progress=False in tests, scheduled jobs, and log files. Use progress="auto" during interactive survey inspection.

18.2.10. Read Several Sources#

You can pass several folders or files at once. This is helpful when a project has separate field folders but you want one in-memory survey for inspection.

>>> two_lines = read_edis(
...     [
...         "data/AMT/WILLY_DATA/L18PLT",
...         "data/AMT/WILLY_DATA/L22PLT",
...     ],
...     recursive=True,
...     on_dup="replace",
... )
>>> print(two_lines.summary())
APIFrame: edi_survey_summary
kind: edi.summary
shape: 53 rows x 6 columns
columns: station, path, n_freq, tipper, spectra, ts
numeric: 1 columns
missing: 0.0%
source: ['data/AMT/WILLY_DATA/L18PLT', 'data/AMT/WILLY_DATA/L22PLT']

The merged survey has 53 rows – the full 28 from L18PLT plus 25 from L22PLT, so no station names collided between the two lines. Individual files can be mixed into the same list alongside folders (for example a single stray .edi recovered separately from the rest of a line); the list form and the loading behaviour are identical whether every entry is a folder or some entries are single files.

Before moving into QC, a quick filename regularity check can catch mixed exports or accidental files:

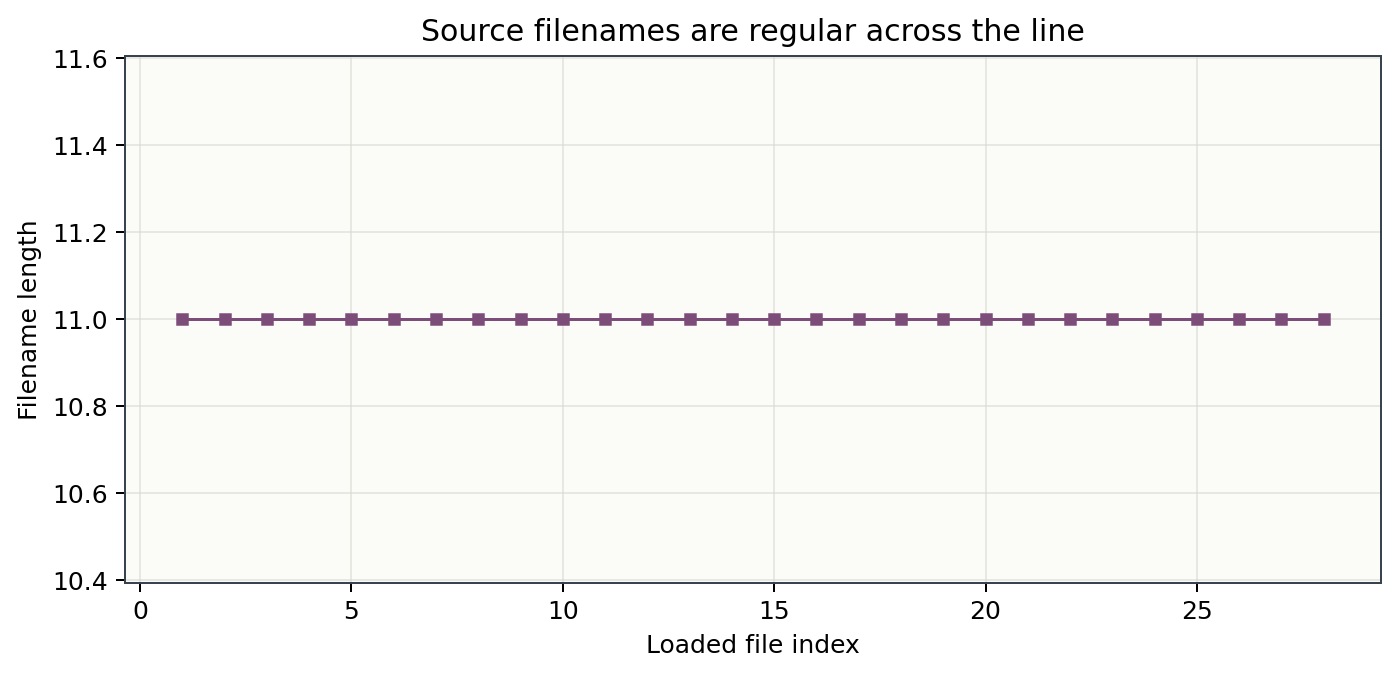

Source filename length check for the L18PLT tutorial line.

Every one of L18PLT’s 28 filenames is exactly 11 characters (18-001A.edi, 18-002U.edi, …), so the plotted line is perfectly flat. A single station with a differently formatted filename – a longer name, a missing zero-pad, an extra suffix from a re-export – would show up as a visible spike, which is often the fastest way to notice that one file in a folder came from a different acquisition batch or software export than the rest.

Keep this merged survey only when the stations belong to the same processing context. For inversion preparation, line identity and profile geometry often matter, so many projects keep one survey object per line.

18.2.11. Use the CLI for Quick Checks#

The command-line interface is useful before opening Python or when you want a small report in a shell workflow.

Show a compact metadata summary:

pycsamt edi info data/AMT/WILLY_DATA/L18PLT
pycsamt edi info data/AMT/WILLY_DATA/L18PLT --top 10
pycsamt edi info data/AMT/WILLY_DATA/L18PLT --format csv

Show station coordinates:

pycsamt edi stations data/AMT/WILLY_DATA/L18PLT
pycsamt edi stations data/AMT/WILLY_DATA/L18PLT --sort-by lat
pycsamt edi stations data/AMT/WILLY_DATA/L18PLT --pattern "18-*" --format csv

Validate EDI structure:

pycsamt edi validate data/AMT/WILLY_DATA/L18PLT
pycsamt edi validate data/AMT/WILLY_DATA/L18PLT --no-deep
pycsamt edi validate data/AMT/WILLY_DATA/L18PLT --format json

Estimate profile geometry when a directory represents one survey line:

pycsamt edi profile data/AMT/WILLY_DATA/L18PLT
pycsamt edi profile data/AMT/WILLY_DATA/L18PLT --bearing-method linear --distances

These commands complement the Python API. Use the CLI for fast inspection; use Python when you need reusable processing, filtering, plotting, or export logic.

18.2.12. Move to QC#

After reading the survey, the next step is normally a quality-control table. The survey.collection object can be passed directly to the QC helpers:

>>> from pycsamt.emtools.qc import build_qc_table
>>> qc = build_qc_table(
...     survey.collection,
...     include_skew=True,
...     recursive=False,
...     api=True,
... )
>>> qc_df = qc.to_pandas(copy=True)
>>> qc_df.to_csv("survey_qc.csv", index=False)

The QC tutorial (Inspect and QC a Survey) explains how to interpret this table and decide which stations need review.

If you want one more visual check before QC, a survey fingerprint compresses phase-tensor behavior across stations and periods:

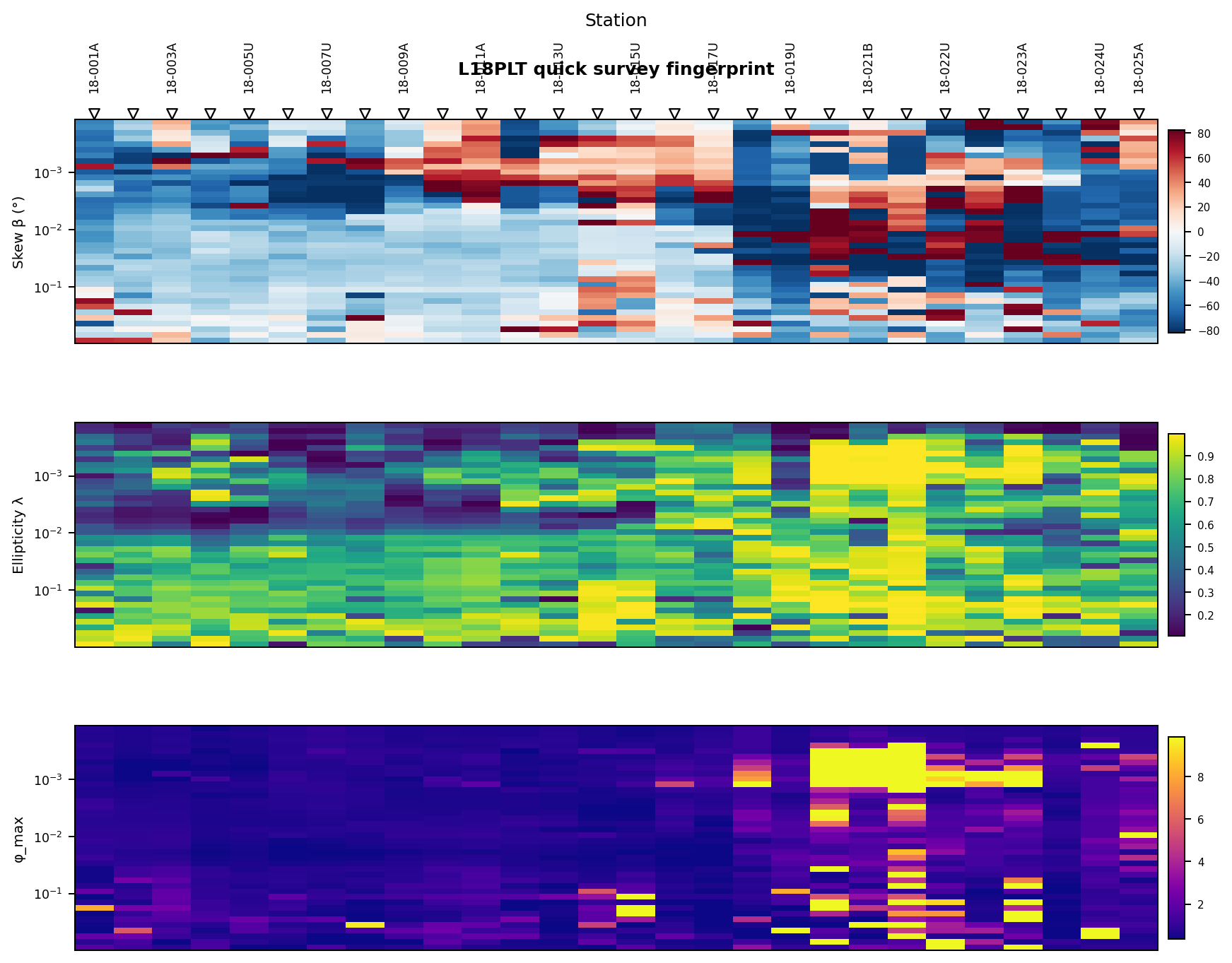

Quick phase-tensor survey fingerprint for the L18PLT tutorial line.

The three panels (skew, ellipticity, and maximum phase) all show the same break partway along the profile: stations from 18-001A to roughly 18-017U are comparatively calm (pale, low-contrast skew; muted ellipticity), while stations from about 18-019U onward turn visibly noisier – strong alternating red/blue skew patches and bright yellow ellipticity and phi_max streaks concentrated at short periods. That is not a coincidence: 18-017U, 18-021U, 18-021B, and 18-022U are exactly the stations Inspect and QC a Survey flags as low-confidence using an entirely different, non-visual method (tensor consistency, diagonal leakage, and spatial coherence scores). Seeing the same stations stand out in a quick phase-tensor image and in a numeric confidence table is a useful cross-check – neither view depends on the other, so agreement between them is real evidence, not a restatement of the same calculation.

18.2.13. Troubleshooting#

No stations were loaded: Check that the source path exists, that files use the .edi extension, and that recursive=True is enabled when EDI files are inside line subdirectories.
The station count is smaller than the number of files: Some files may share the same station name. Inspect survey.paths and review on_dup. Use unique station names before final processing.
The reader reports errors but still returns a survey: This is expected with strict=False. Review survey.errors() and decide whether the affected files can be ignored, repaired, or re-exported.
The summary has fewer columns than expected: survey.summary() is intentionally lightweight. Use EDI station, profile, site, QC, or plotting tools for richer diagnostics.
The CLI and Python show different station order: Directory traversal and sorting options can affect display order. Use the CLI --sort-by options or sort the pandas dataframe explicitly when order matters.

18.2.14. Next Steps#

Run quality-control tables with Inspect and QC a Survey.
Compare two lines before reusing one QC config with Compare Survey Lines for QC.
Correct static shift with Correct Static Shift.
Prepare inversion files with Prepare an Occam2D Inversion.
