11.5. Static-Shift Correction#
Static shift is a station-dependent, frequency-independent offset in
apparent resistivity. In CSAMT, AMT, and MT data it is usually caused
by shallow galvanic distortion: the curve keeps nearly the same shape,
but it is lifted or lowered by a multiplier. Because apparent
resistivity is proportional to |Z|**2, pyCSAMT estimates the shift in
log10(rho) and applies the square-root correction to the impedance
tensor Z.
The static-shift tools in pycsamt.emtools cover four related jobs:
Job |
Main tools |
Use when |
|---|---|---|
Estimate correction factors |
|
You want a per-station table of static-shift amplitudes before modifying data. |
Apply factors |
|
You have accepted a factor table and want corrected |

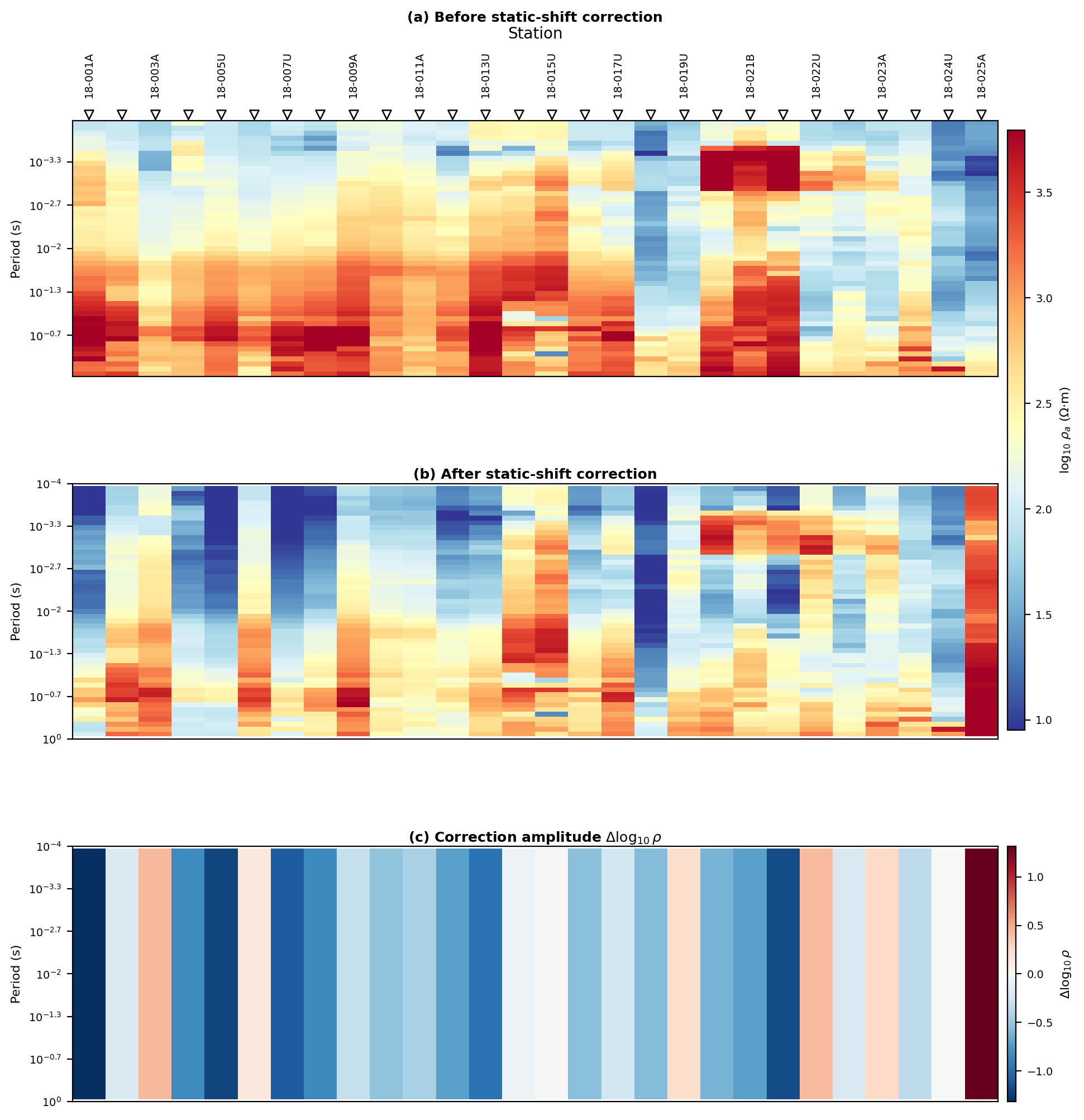

Check the correction visually |
|
You need before/after diagnostics rather than only a table. |

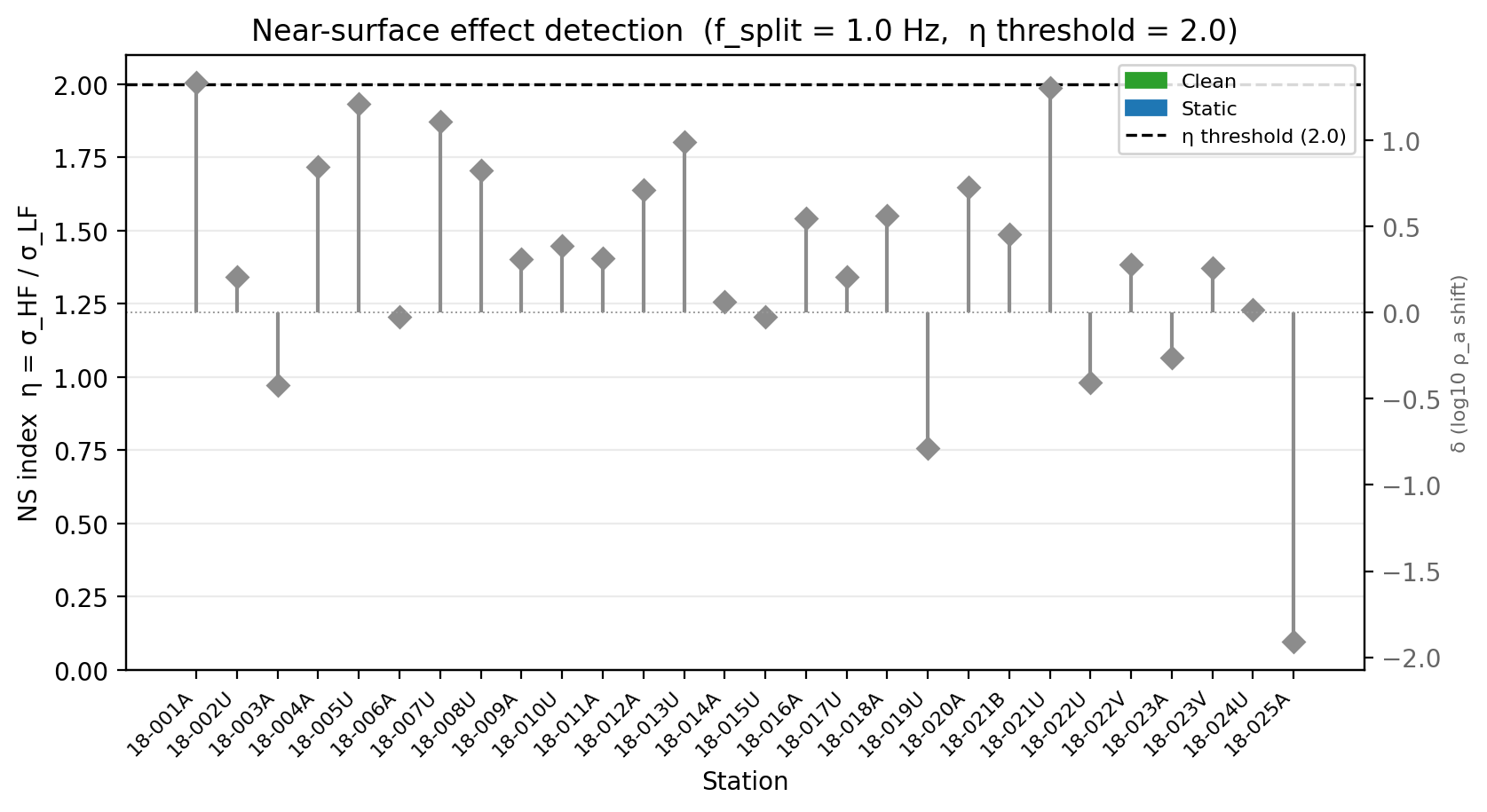

Separate static shift from near-surface effects |
|
The distortion may be frequency-dependent and therefore not removable by a conventional static-shift multiplier. |
The examples below use two-level imports from pycsamt.emtools because
the static-shift functions are exported as public user-facing symbols.
Most of this page works through pyCSAMT’s bundled L18PLT AMT line
(data/AMT/WILLY_DATA/), a tight, regularly spaced grid where
Adaptive moving average (AMA) correction behaves the way the

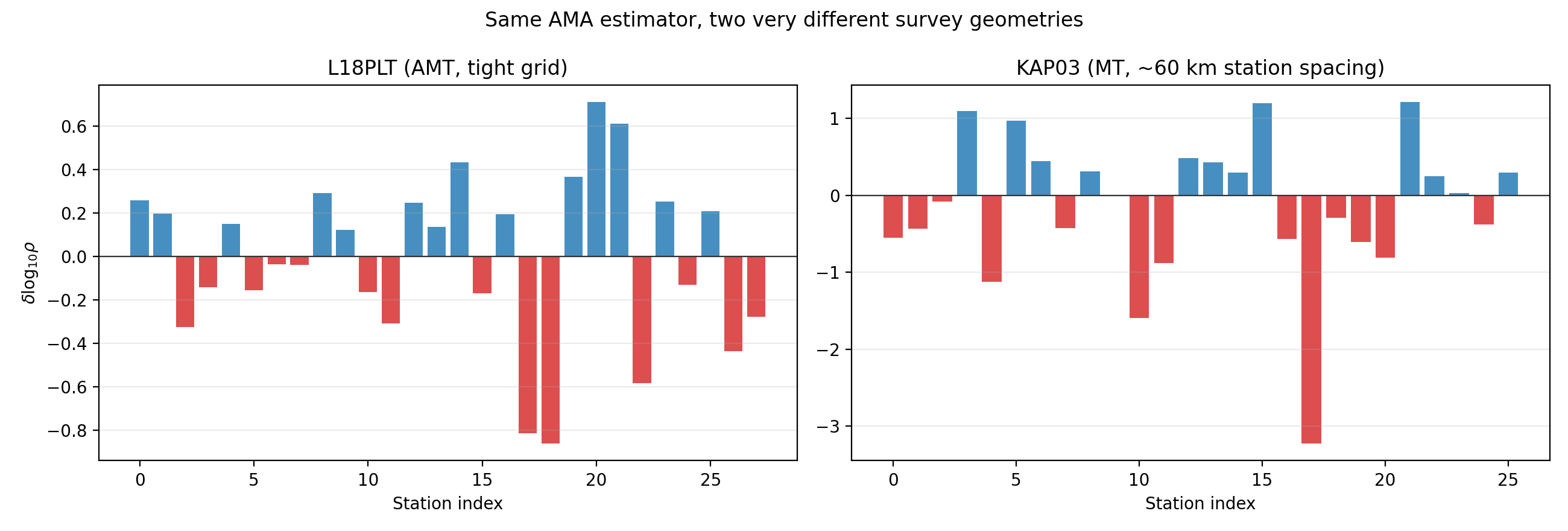

method was designed for. Two closing sections deliberately bring in

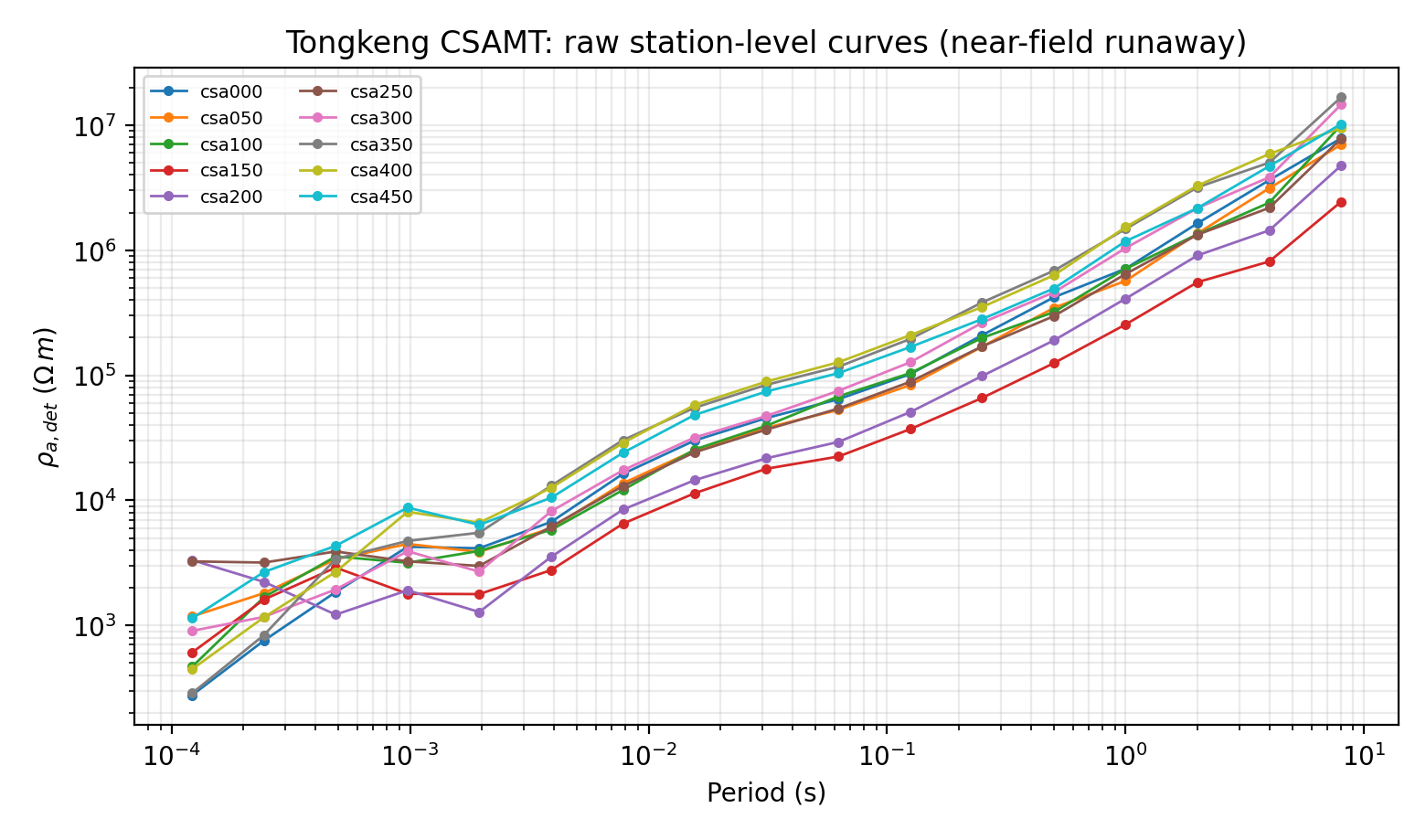

different data – a widely spaced natural-source MT profile and a real
CSAMT line with a controlled-source transmitter – to show what the same
estimator looks like when its underlying assumptions weaken or break.
11.5.1. Load The Survey#
Start from the canonical loader. It accepts a directory, a glob-like
collection, or an existing Sites object and skips files without valid
impedance data.
>>> from pathlib import Path
>>> import matplotlib.pyplot as plt
>>> from pycsamt.emtools import ensure_sites
>>> from pycsamt.emtools._core import _get_z_block, _iter_items, _name
>>> from pycsamt.emtools.ss import _rho_det_from_z
>>> edi_dir = Path("data/AMT/WILLY_DATA/L18PLT")
>>> sites = ensure_sites(edi_dir, recursive=True, verbose=0)
>>> stations = ["18-001A", "18-016A", "18-021U", "18-025A"]
>>> fig, ax = plt.subplots(figsize=(7.8, 4.6))
>>> for station in stations:
... for i, edi in enumerate(_iter_items(sites)):
... if _name(edi, i) == station:
... _, z, freq = _get_z_block(edi)
... rho = _rho_det_from_z(z, freq)
... _ = ax.loglog(1.0 / freq, rho, "-o", ms=3, lw=1.2, label=station)
... break
...
>>> _ = ax.set_xlabel("Period (s)")
>>> _ = ax.set_ylabel(r"$\rho_{a,det}$ ($\Omega\,m$)")
>>> _ = ax.set_title("L18PLT: raw station-level apparent-resistivity offsets")
>>> ax.grid(True, which="both", alpha=0.25)
>>> _ = ax.legend(fontsize=8)
>>> fig.tight_layout()
>>> fig.savefig("l18plt_raw_offsets.png", dpi=200)
>>> plt.close(fig)

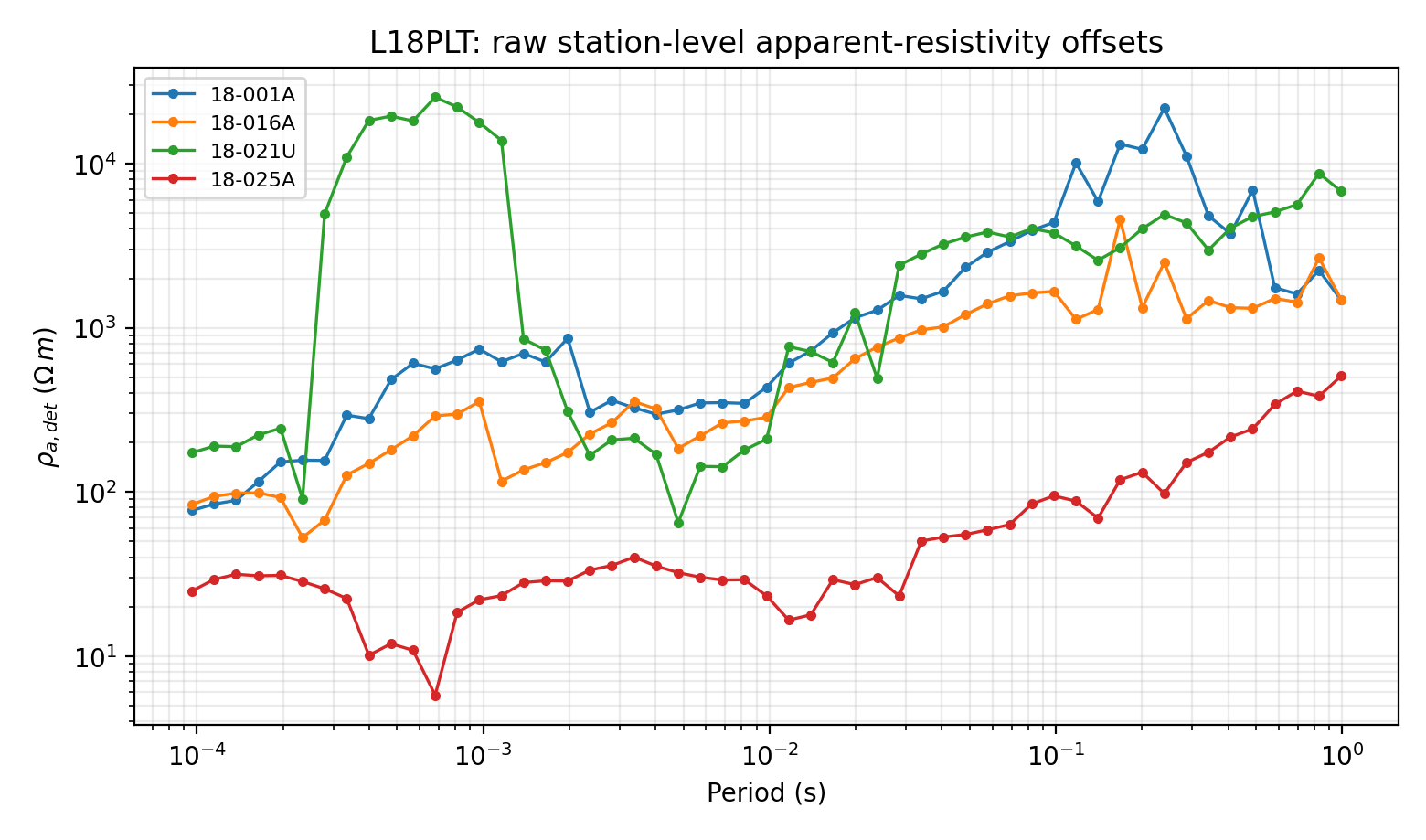

The four raw curves show the static-shift problem before any estimator is called: stations can keep broadly comparable curve shapes while sitting at very different apparent-resistivity levels. That vertical offset is the part a static-shift correction can address.
For static-shift work, station order matters. The AMA method estimates a
local spatial trend from neighbouring stations, so choose sort_by to
match the survey line direction:
|
Meaning |
|---|---|
|
Order stations by longitude. This is useful for an east-west line. |
|
Order stations by latitude. This is useful for a north-south line. |
|
Order stations lexically by station name. Use this only when the station names encode the real line order. |
11.5.2. Estimate AMA Factors#
estimate_ss_ama is the main estimator. AMA means adaptive
moving-average: for each station, pyCSAMT builds a weighted local
reference from neighbouring stations, compares the target station with
that reference in log10(rho_det), and reduces the per-frequency
residuals to one static-shift value.
For station \(s\) and frequency \(f_i\), the determinant
apparent resistivity is written as \(\rho_{a,det}(s,f_i)\). The
local reference is a weighted neighbourhood trend,
where \(\mathcal{N}(s)\) is the station neighbourhood and
\(w_{sj}\) comes from weights. The station residual is then
After period-band and skew filtering, robust_freq and
robust_overall reduce the finite residuals to the reported
\(\delta_s\). The correction factors are
The square root appears because apparent resistivity scales as \(|Z|^2\). Positive \(\delta_s\) therefore lowers the impedance level, while negative \(\delta_s\) raises it.
>>> import numpy as np
>>> from pycsamt.emtools import estimate_ss_ama
>>> factors = estimate_ss_ama(
... sites,
... sort_by="lat",
... half_window=3,
... weights="tri",
... pband=(1e-4, 10.0),
... max_skew=45.0,
... robust_freq="median",
... robust_overall="median",
... )
>>> factors[["station", "delta_log10_rho", "fac_rho", "fac_z", "n_used"]]
station delta_log10_rho fac_rho fac_z n_used
0 18-001A 0.259495 0.550180 0.741741 48
1 18-002U 0.197412 0.634729 0.796699 50
2 18-003A -0.324956 2.113273 1.453710 49
3 18-004A -0.139901 1.380070 1.174764 52
4 18-005U 0.149973 0.707990 0.841421 52
5 18-006A -0.154306 1.426612 1.194409 52
6 18-007U -0.035679 1.085622 1.041932 50
7 18-008U -0.038915 1.093742 1.045821 49
8 18-009A 0.292345 0.510100 0.714213 51
9 18-010U 0.123394 0.752673 0.867567 52
10 18-011A -0.161789 1.451407 1.204744 52
11 18-012A -0.307374 2.029430 1.424581 50
12 18-013U 0.249248 0.563316 0.750544 48
13 18-014A 0.137359 0.728855 0.853730 43
14 18-015U 0.433704 0.368380 0.606943 46
15 18-016A -0.167965 1.472195 1.213340 43
16 18-017U 0.195397 0.637681 0.798549 45
17 18-018A -0.811953 6.485640 2.546692 33
18 18-019U -0.860133 7.246585 2.691948 32
19 18-020A 0.367840 0.428707 0.654757 21
20 18-021B 0.712003 0.194087 0.440553 18
21 18-021U 0.611618 0.244558 0.494528 16
22 18-022U -0.581030 3.810921 1.952158 23
23 18-022V 0.254640 0.556366 0.745899 31
24 18-023A -0.129144 1.346307 1.160305 21
25 18-023V 0.208168 0.619201 0.786893 36
26 18-024U -0.434668 2.720618 1.649430 40
27 18-025A -0.275380 1.885300 1.373062 46
>>> fig, ax1 = plt.subplots(figsize=(10.5, 4.2))
>>> x = np.arange(len(factors))
>>> colors = np.where(factors["delta_log10_rho"] >= 0.0, "C0", "C3")
>>> _ = ax1.bar(x, factors["delta_log10_rho"], color=colors, alpha=0.82)
>>> _ = ax1.axhline(0.0, color="0.2", lw=0.8)
>>> _ = ax1.set_ylabel(r"$\delta\log_{10}\rho$")
>>> _ = ax1.set_xticks(x[::2])
>>> _ = ax1.set_xticklabels(factors["station"].iloc[::2], rotation=90)
>>> _ = ax1.set_xlabel("Station")
>>> ax1.grid(True, axis="y", alpha=0.25)
>>> ax2 = ax1.twinx()
>>> _ = ax2.plot(x, factors["n_used"], "o-", color="0.25", ms=3, lw=1.1)
>>> _ = ax2.set_ylabel("Frequency samples used")
>>> _ = ax1.set_title("L18PLT AMA static-shift factors and sample support")
>>> fig.tight_layout()
>>> fig.savefig("l18plt_ama_factors.png", dpi=200)
>>> plt.close(fig)

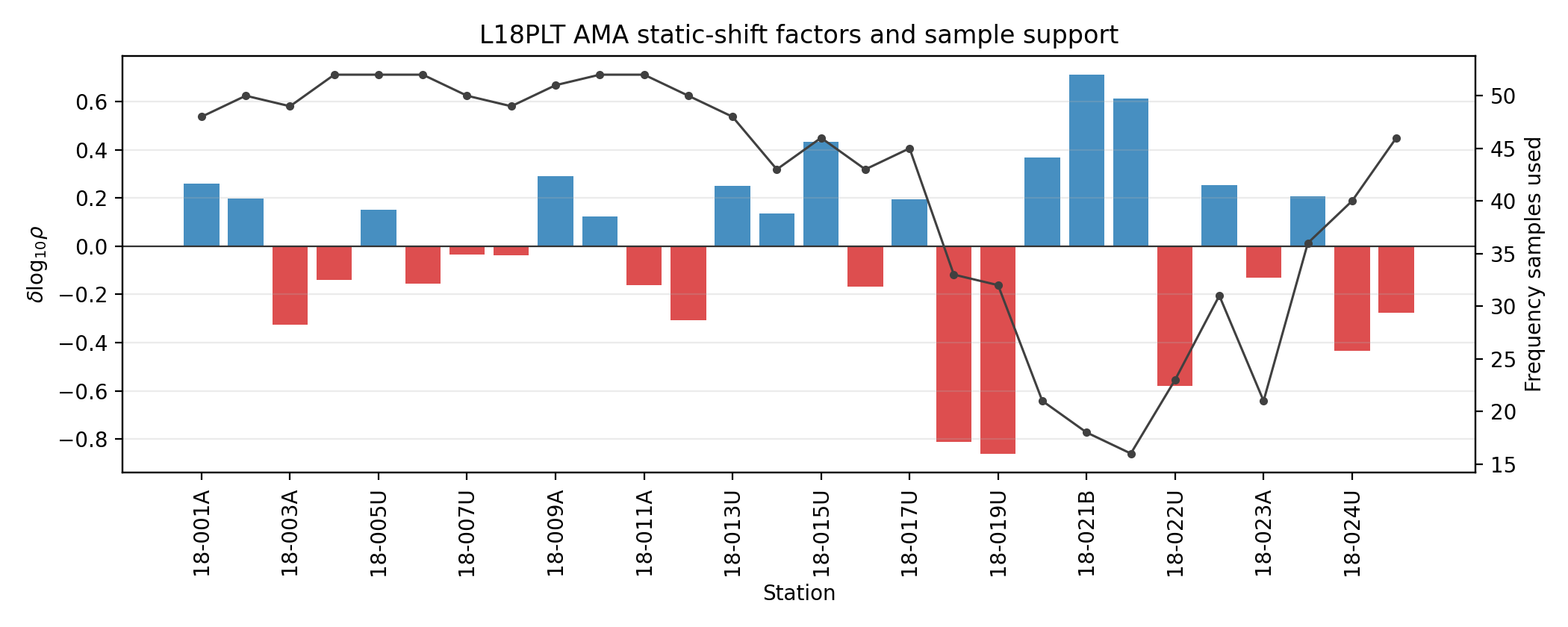

The bar sign follows the estimated bias being removed. Blue positive
bars mark stations whose raw resistivity sits above the local trend and
will be lowered; red negative bars mark stations that will be raised.
18-019U and 18-018A are the most extreme cases on this line:
\(\delta = -0.86\) and \(-0.81\), with impedance correction
factors of 2.69 and 2.55 – and n_used of 32 and 33 shows
those estimates rest on solid frequency support, not a handful of noisy
points. The black line gives n_used, so a large factor with little
frequency support can be flagged before it is applied; the low-support
run around 18-020A-18-021U (n_used down to 16-21) is exactly
the kind of factor worth a second look before trusting it at face
value.
The returned table has one row per station with these columns:
Column |
Interpretation |
|---|---|
|
Station identifier used to match the factor back to the survey. |
|
Estimated vertical offset of the station relative to the local spatial trend. Positive means the station’s apparent resistivity is above the trend. |
|
Resistivity correction factor, computed as
|
|
Impedance correction factor, computed as
|
|
Number of finite frequency samples that contributed to the station estimate after period-band and skew filtering. |
The phase-tensor skew filter is important. The default threshold is conservative, so a structurally complex survey may return a sparse table unless you choose a threshold appropriate for the line. A quick audit is usually better than accepting the first number silently:
>>> strict_factors = estimate_ss_ama(
... sites,
... sort_by="lat",
... half_window=3,
... max_skew=6.0,
... )
>>> survey_factors = estimate_ss_ama(
... sites,
... sort_by="lat",
... half_window=3,
... max_skew=45.0,
... )
>>> print("strict stations:", len(strict_factors))
strict stations: 28
>>> print("survey stations:", len(survey_factors))
survey stations: 28
>>> print("median samples:", survey_factors["n_used"].median())
median samples: 47.0
All 28 stations survive even the strict max_skew=6.0 threshold here
– unlike the phase-tensor skew page’s own findings for this same line,
where nearly every station fails a 6-degree threshold on individual
rows, enough rows still clear it at the station level that no station
is dropped outright, and the median sample support only drops from 52
to still-healthy levels. If n_used is low for many stations, the
result may be technically valid but weakly constrained. In that case,
inspect the Skew Diagnostics page, restrict pband to the useful
period range, or compare several estimators before applying the
correction.
11.5.3. Read Factor Signs Correctly#
A positive delta_log10_rho means the raw apparent resistivity is high
relative to the local trend, so the correction factor is less than one.
A negative delta_log10_rho means the raw apparent resistivity is low,
so the correction factor is greater than one.
>>> view = factors.assign(
... direction=factors["delta_log10_rho"].map(
... lambda value: "lower Z" if value > 0 else "raise Z"
... )
... )
>>> view[
... ["station", "delta_log10_rho", "fac_z", "n_used", "direction"]
... ].sort_values("delta_log10_rho")
station delta_log10_rho fac_z n_used direction
18 18-019U -0.860133 2.691948 32 raise Z
17 18-018A -0.811953 2.546692 33 raise Z
22 18-022U -0.581030 1.952158 23 raise Z
26 18-024U -0.434668 1.649430 40 raise Z
2 18-003A -0.324956 1.453710 49 raise Z
11 18-012A -0.307374 1.424581 50 raise Z
27 18-025A -0.275380 1.373062 46 raise Z
15 18-016A -0.167965 1.213340 43 raise Z
10 18-011A -0.161789 1.204744 52 raise Z
5 18-006A -0.154306 1.194409 52 raise Z
3 18-004A -0.139901 1.174764 52 raise Z
24 18-023A -0.129144 1.160305 21 raise Z
7 18-008U -0.038915 1.045821 49 raise Z
6 18-007U -0.035679 1.041932 50 raise Z
9 18-010U 0.123394 0.867567 52 lower Z
13 18-014A 0.137359 0.853730 43 lower Z
4 18-005U 0.149973 0.841421 52 lower Z
16 18-017U 0.195397 0.798549 45 lower Z
1 18-002U 0.197412 0.796699 50 lower Z
25 18-023V 0.208168 0.786893 36 lower Z
12 18-013U 0.249248 0.750544 48 lower Z
23 18-022V 0.254640 0.745899 31 lower Z
0 18-001A 0.259495 0.741741 48 lower Z
8 18-009A 0.292345 0.714213 51 lower Z
19 18-020A 0.367840 0.654757 21 lower Z
14 18-015U 0.433704 0.606943 46 lower Z
21 18-021U 0.611618 0.494528 16 lower Z
20 18-021B 0.712003 0.440553 18 lower Z
fac_z must be finite and positive. apply_ss_factors guards the
impedance tensor against non-finite, zero, and negative factors by
leaving those stations unchanged, but your processing report should still
flag such rows because they indicate a failed or unreliable estimate.
>>> good = np.isfinite(factors["fac_z"]) & (factors["fac_z"] > 0.0)
>>> rejected = factors.loc[~good, ["station", "fac_z", "n_used"]]
>>> if not rejected.empty:
... print("Rows that will not be applied:")
... print(rejected)
... else:
... print("All", len(factors), "stations have a usable fac_z.")
...
All 28 stations have a usable fac_z.
11.5.4. Apply Factors#
Use apply_ss_factors when you want an explicit estimate-then-apply
workflow. This is the preferred pattern for production processing
because the table can be saved, reviewed, plotted, and reproduced.
>>> from pycsamt.emtools import apply_ss_factors
>>> corrected = apply_ss_factors(
... sites,
... factors,
... key="fac_z",
... inplace=False,
... )
Keep inplace=False while developing a processing flow. It returns a
corrected copy and leaves the original Sites object available for
before/after plots. Use inplace=True only when you deliberately want
to mutate the object already in memory.
For exploratory notebooks, correct_ss_ama combines estimation and
application in one call:
>>> from pycsamt.emtools import correct_ss_ama
>>> corrected2 = correct_ss_ama(
... sites,
... sort_by="lat",
... half_window=3,
... max_skew=45.0,
... inplace=False,
... )
This convenience call is useful, but it does not show the factor table by
itself. When documenting a survey, keep the explicit factors table
as part of the processing record.
11.5.5. Compare Estimators#
Static-shift estimation is not a single universal recipe. The four estimators use different references:
Estimator |
Reference model |
Practical reading |
|---|---|---|
|
Weighted local median/mean from neighbouring stations. |
Good default for line data when station order is meaningful. |
|
Local polynomial regression across neighbouring stations. |
Useful when the background level changes smoothly along the line. |
|
Neighbour trend weighted by both distance and value similarity. |
Can protect sharp local contrasts, but may disagree at outliers. |
|
Global frequency-wise median reference. |
Useful as a broad check, less local than AMA or LOESS. |
Run several estimators before correcting a valuable line. Agreement is a stronger signal than a single factor table.
>>> from functools import reduce
>>> from pycsamt.emtools import (
... estimate_ss_bilateral,
... estimate_ss_loess,
... estimate_ss_refmedian,
... )
>>> tables = {
... "ama": estimate_ss_ama(
... sites,
... sort_by="lat",
... half_window=3,
... max_skew=45.0,
... ),
... "loess": estimate_ss_loess(
... sites,
... half_window=3,
... max_skew=45.0,
... ),
... "bilateral": estimate_ss_bilateral(
... sites,
... half_window=4,
... max_skew=45.0,
... ),
... "refmedian": estimate_ss_refmedian(
... sites,
... max_skew=45.0,
... ),
... }
>>> compact = []
>>> for name, table in tables.items():
... compact.append(
... table[["station", "delta_log10_rho"]].rename(
... columns={"delta_log10_rho": name}
... )
... )
...
>>> comparison = reduce(
... lambda left, right: left.merge(right, on="station", how="inner"),
... compact,
... )
>>> comparison
station ama loess bilateral refmedian
0 18-001A 0.253122 -0.224923 0.150203 0.262267
1 18-002U 0.190495 0.034051 0.009116 0.076518
2 18-003A -0.324518 -0.335759 -0.139981 -0.248428
3 18-004A -0.136452 -0.009228 -0.020129 -0.098030
4 18-005U 0.145856 0.164786 0.051494 0.032212
5 18-006A -0.159680 -0.145048 -0.067598 -0.125258
6 18-007U -0.034320 -0.021412 -0.002392 0.031200
7 18-008U -0.059197 -0.095450 0.015649 0.065517
8 18-009A 0.291038 0.214338 0.040241 0.337904
9 18-010U 0.123971 0.100683 0.015968 0.158455
10 18-011A -0.161336 -0.129433 -0.068058 0.012536
11 18-012A -0.307507 -0.233731 -0.058582 0.021165
12 18-013U 0.249834 0.156864 0.025542 0.414649
13 18-014A 0.139753 0.057783 0.018199 0.408826
14 18-015U 0.430318 0.333318 0.147733 0.470533
15 18-016A -0.168493 -0.162078 -0.068441 0.019986
16 18-017U 0.195199 0.475239 0.034394 0.114006
17 18-018A -0.800131 -0.672537 -0.253025 -0.716215
18 18-019U -0.787932 -0.645259 -0.078467 -0.401472
19 18-020A 0.358638 0.272454 0.053946 0.270283
20 18-021B 0.680691 0.451849 0.069912 0.474083
21 18-021U 0.591694 0.402982 0.113857 0.407081
22 18-022U -0.543740 -0.546274 -0.096057 -0.153995
23 18-022V 0.231534 0.164201 0.098449 -0.269269
24 18-023A -0.120332 -0.094734 -0.045649 -0.157678
25 18-023V 0.217930 0.417241 0.139444 -0.042268
26 18-024U -0.437968 -0.226071 -0.068552 -0.694214
27 18-025A -0.263221 0.708916 -0.067799 -0.960862
>>> comparison.drop(columns="station").corr().round(2)
ama loess bilateral refmedian
ama 1.00 0.78 0.86 0.78
loess 0.78 1.00 0.66 0.34
bilateral 0.86 0.66 1.00 0.67
refmedian 0.78 0.34 0.67 1.00
Look for sign disagreements, not only large absolute differences.
18-025A is the clearest case here: AMA, loess, and refmedian all
agree it should be raised (negative delta), while bilateral alone puts
it essentially at zero (-0.068) – exactly the kind of station that
deserves a manual plot before correction, since bilateral weighting by
value similarity can pull an outlier’s own reference away from what its
literal spatial neighbours say. LOESS is also the least correlated with
refmedian here (0.34), a reminder that a smooth local polynomial
trend and a single global median reference are answering genuinely
different questions.
11.5.6. QC Plots In One Call#
The ss_qc_* wrappers estimate, apply, and plot in one call. They are
good first-look tools when you do not need to reuse the corrected object.
>>> from pycsamt.emtools import (
... ss_qc_profile,
... ss_qc_psection,
... ss_qc_station_curves,
... )
>>> _ = ss_qc_psection(
... sites,
... method="ama",
... sort_by="lat",
... half_window=3,
... max_skew=45.0,
... pband=(1e-4, 10.0),
... )
>>> _ = ss_qc_profile(
... sites,
... method="ama",
... sort_by="lat",
... half_window=3,
... max_skew=45.0,
... robust="median",
... )
>>> _ = ss_qc_station_curves(
... sites,
... method="ama",
... station="18-016A",
... sort_by="lat",
... half_window=3,
... max_skew=45.0,
... )
>>> for i, num in enumerate(plt.get_fignums(), start=1):
... fig = plt.figure(num)
... fig.savefig(f"ss_qc_plots_{i:02d}.png", dpi=200, bbox_inches="tight")
... plt.close(fig)
...
ss_qc_psection shows the pointwise
log10(rho_after) - log10(rho_before) correction as a pseudosection.
For a true static-shift correction, each station shows a clean vertical
band – the multiplier is constant with frequency by construction, and
the first panel above shows exactly that: one solid colour per station
column, top to bottom.

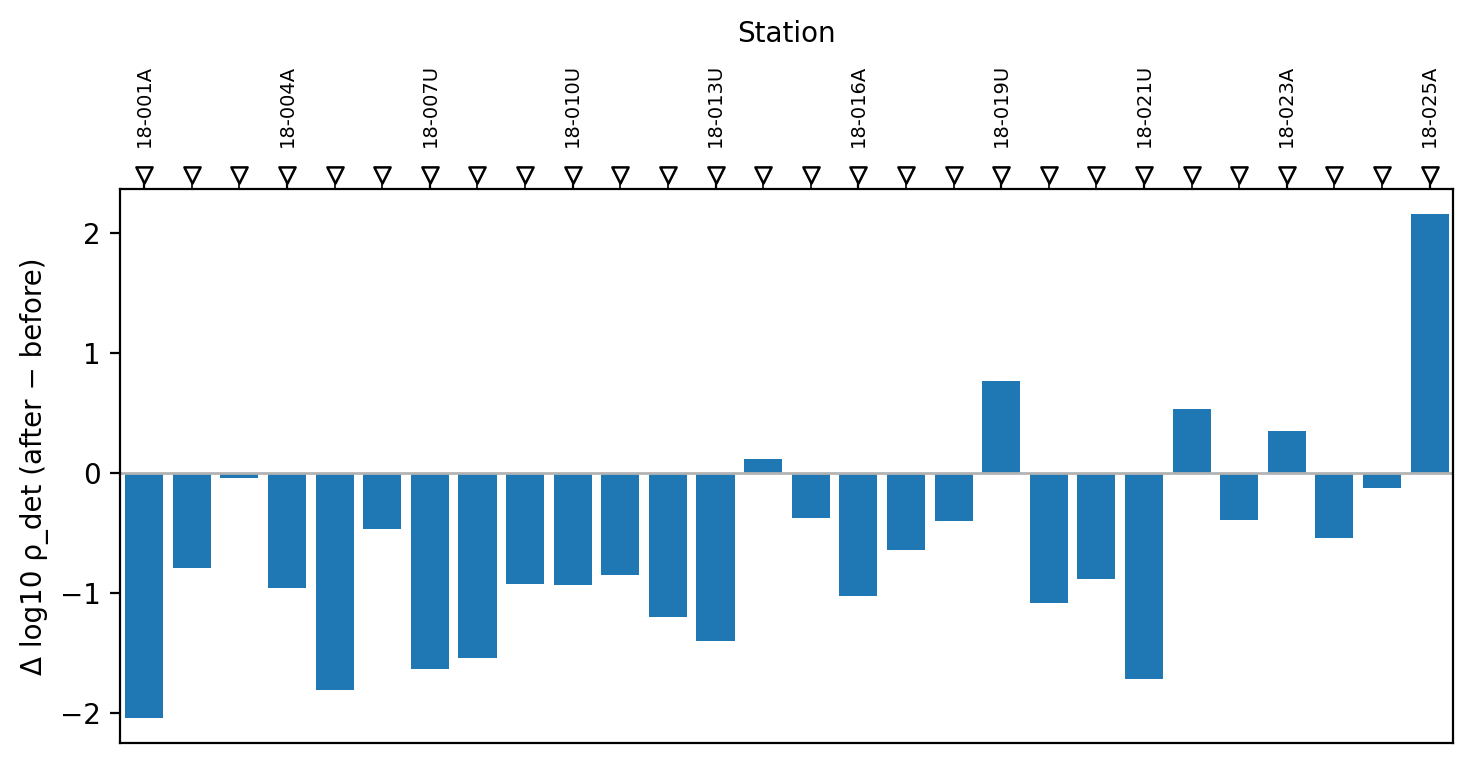

ss_qc_profile compresses that difference to one value per station.
Use it to find stations with unusually large corrections.

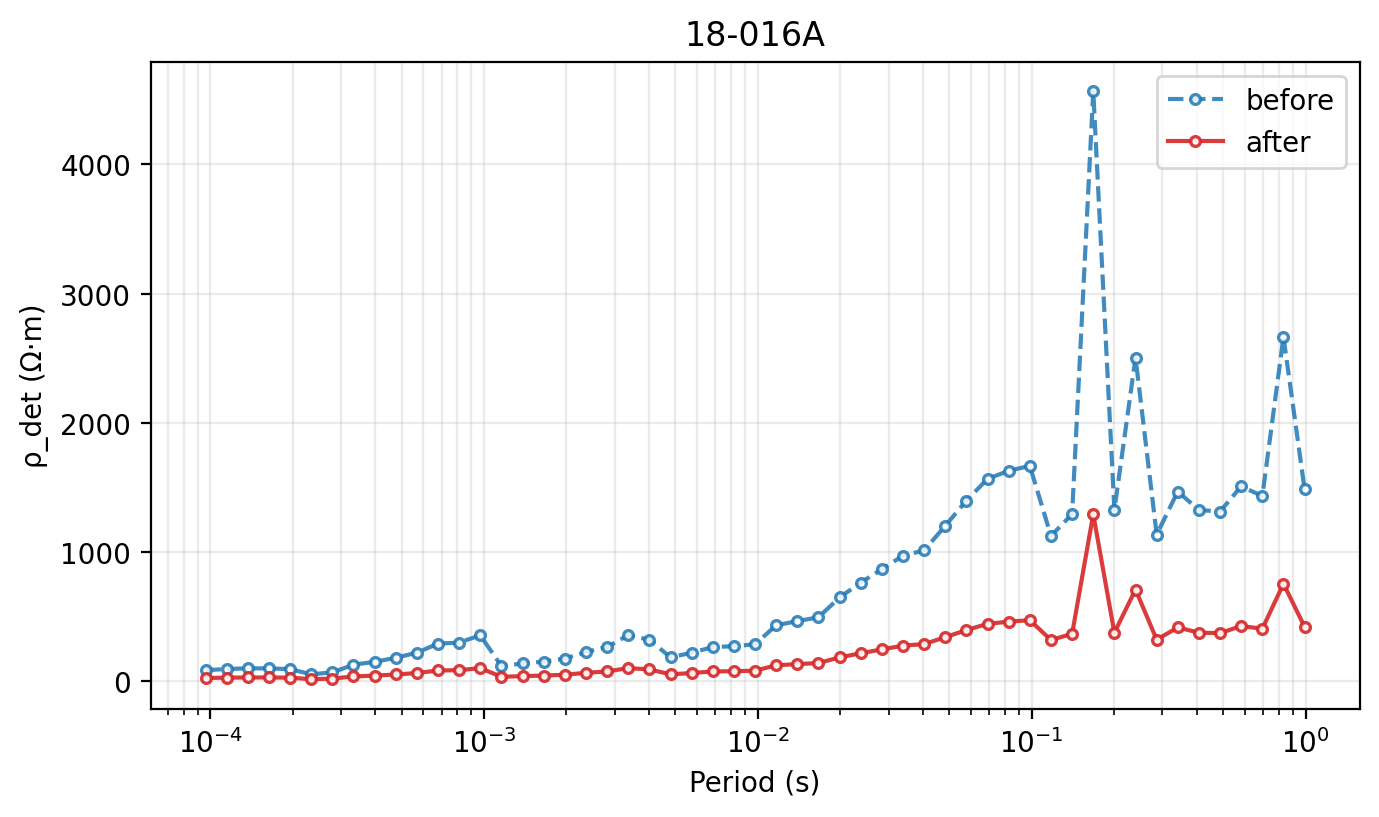

ss_qc_station_curves overlays the before and after curves for one
station. It is the quickest way to confirm that the correction shifted
the level without changing the curve shape.
11.5.7. Before/After Plots From Existing Sites#
When you already have a corrected Sites object, call the lower-level
plotters directly. These functions do not re-estimate the correction;
they compare the two data sets you pass in.
>>> from pycsamt.emtools import (
... plot_ss_delta_profile,
... plot_ss_delta_psection,
... plot_ss_station_curves,
... )
>>> _ = plot_ss_delta_psection(
... sites,
... corrected,
... axis_y="logperiod",
... pband=(1e-4, 10.0),
... )

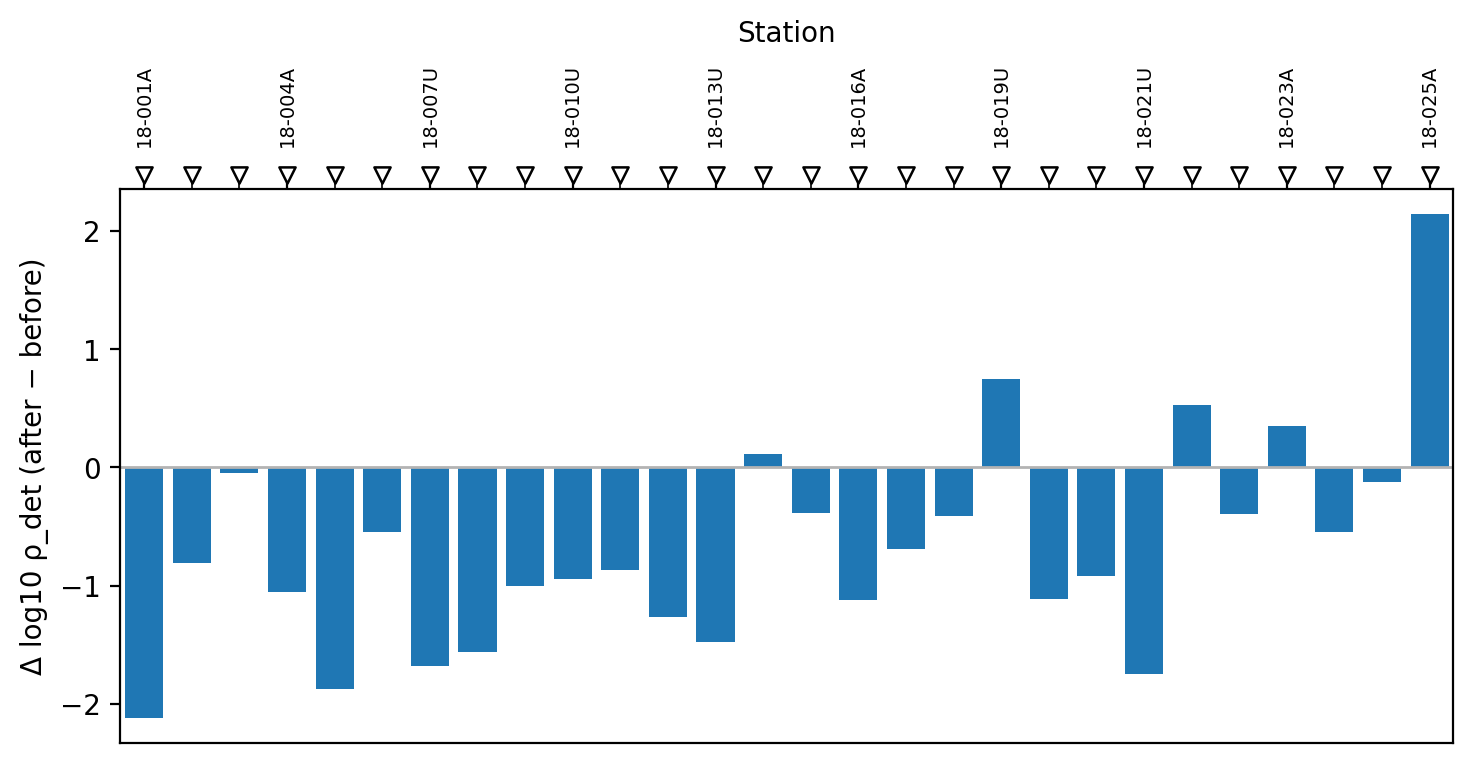

>>> _ = plot_ss_delta_profile(
... sites,
... corrected,
... robust="median",
... pband=(1e-4, 10.0),
... )

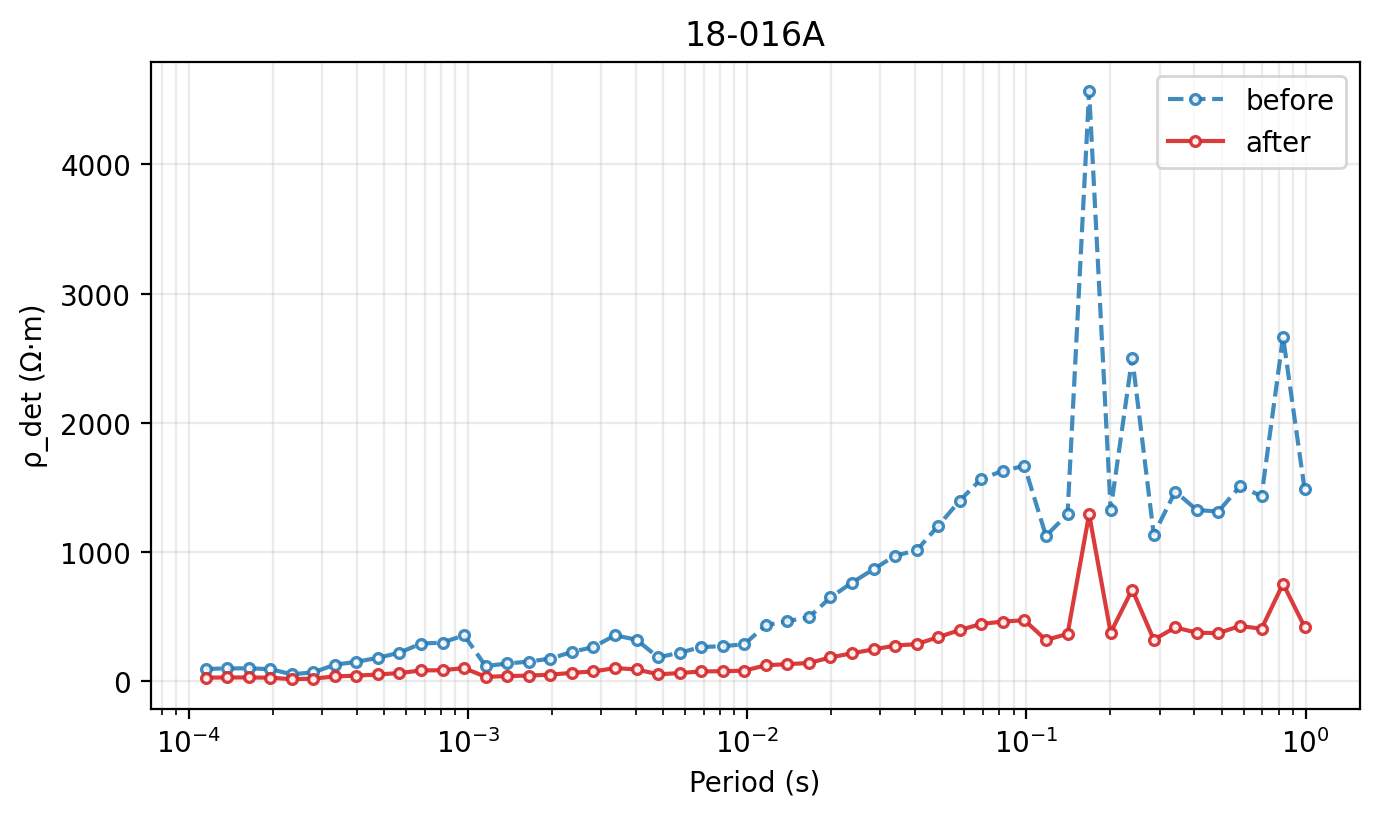

>>> _ = plot_ss_station_curves(
... sites,
... corrected,
... station="18-016A",
... pband=(1e-4, 10.0),
... )
>>> for i, num in enumerate(plt.get_fignums(), start=1):
... fig = plt.figure(num)
... fig.savefig(f"ss_before_after_{i:02d}.png", dpi=200, bbox_inches="tight")
... plt.close(fig)
...
These calls are useful in reports because they make the provenance clear:
sites is the uncorrected input and corrected is the accepted
corrected output.
11.5.8. Publication Comparison Figures#
ss_comparison_psection is the high-level publication helper. It
estimates the correction, applies it, builds aligned before/after
log10(rho_det) arrays internally, and renders a shared-scale
pseudosection comparison.
>>> from pycsamt.emtools import ss_comparison_psection
>>> fig = ss_comparison_psection(
... sites,
... method="ama",
... sort_by="lat",
... half_window=3,
... max_skew=45.0,
... show_delta=True,
... suptitle="Static-shift correction: AMA",
... )
>>> fig.savefig("ss_comparison_psection_ama.png", dpi=200, bbox_inches="tight")
>>> plt.close(fig)

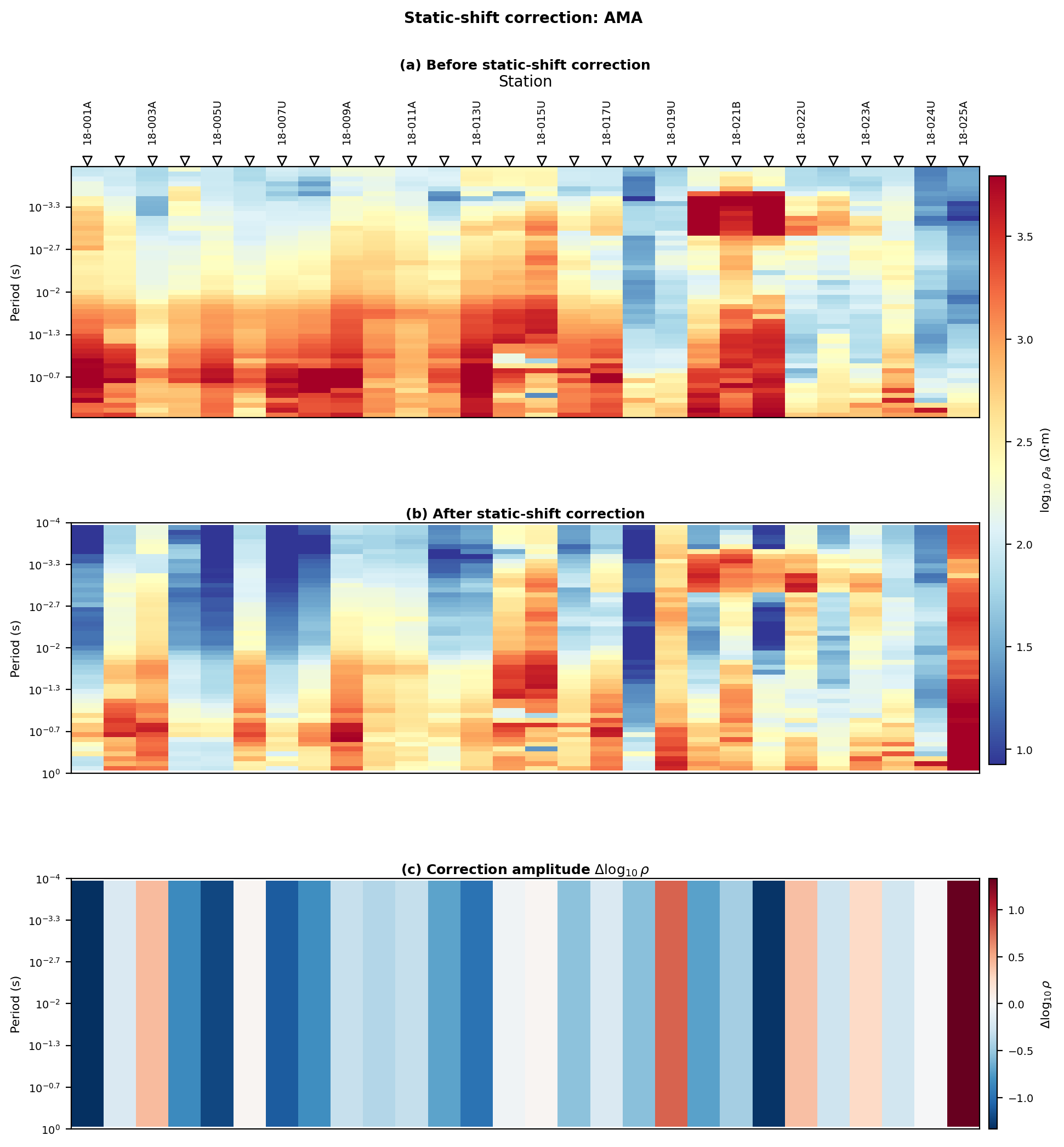

Use show_delta=True when the figure must show both the corrected
resistivity field and the actual correction amplitude. The before and
after panels share colour limits, so station-level offsets remain
visible instead of being hidden by automatic rescaling. Panel (c), the
correction amplitude, is the same vertical-banding sanity check as the
QC pseudosection above: each station is one constant colour across the
whole period range, exactly what a frequency-independent multiplier
should produce.
The lower-level plot_ss_comparison_psection, plot_ss_1d_curves,
and plot_ss_summary functions accept precomputed arrays:
logRho_before with shape (n_stations, n_frequencies),
logRho_after with the same shape, and freqs in hertz. Use those
array-level functions when you have already built a custom resistivity
matrix outside the normal Sites workflow.
11.5.9. Radar View#

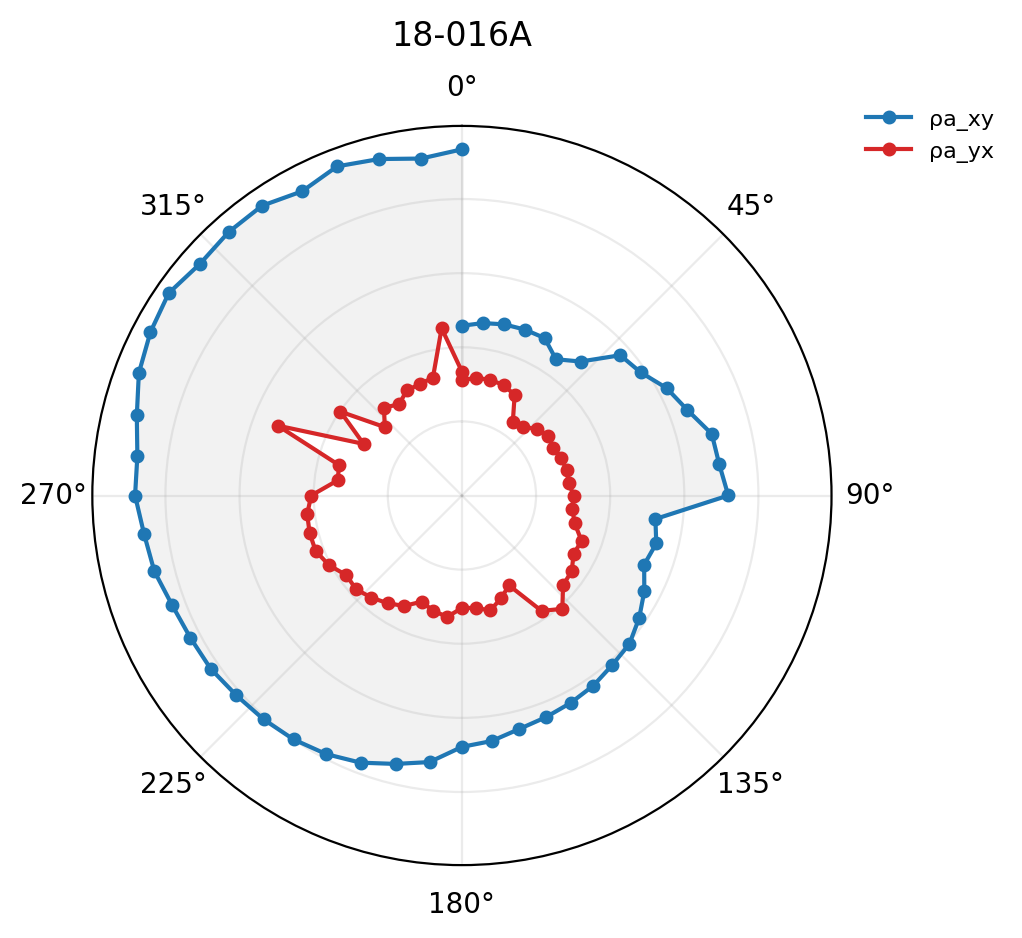

plot_ss_radar shows the xy and yx apparent-resistivity
components for one station on a polar grid. The angle around the circle
represents period or frequency, and the radius represents resistivity or
log10(resistivity).
>>> from pycsamt.emtools import plot_ss_radar
>>> _ = plot_ss_radar(
... sites,
... station="18-016A",
... rotate="none",
... radial="log10rho",
... theta_axis="logperiod",
... fill_between=True,
... )
>>> _ = plot_ss_radar(
... sites,
... station="18-016A",
... rotate="pt",
... rotate_stat="median",
... radial="log10rho",
... )
>>> for i, num in enumerate(plt.get_fignums(), start=1):
... fig = plt.figure(num)
... fig.savefig(f"ss_radar_18-016A_{i:02d}.png", dpi=200, bbox_inches="tight")
... plt.close(fig)
...

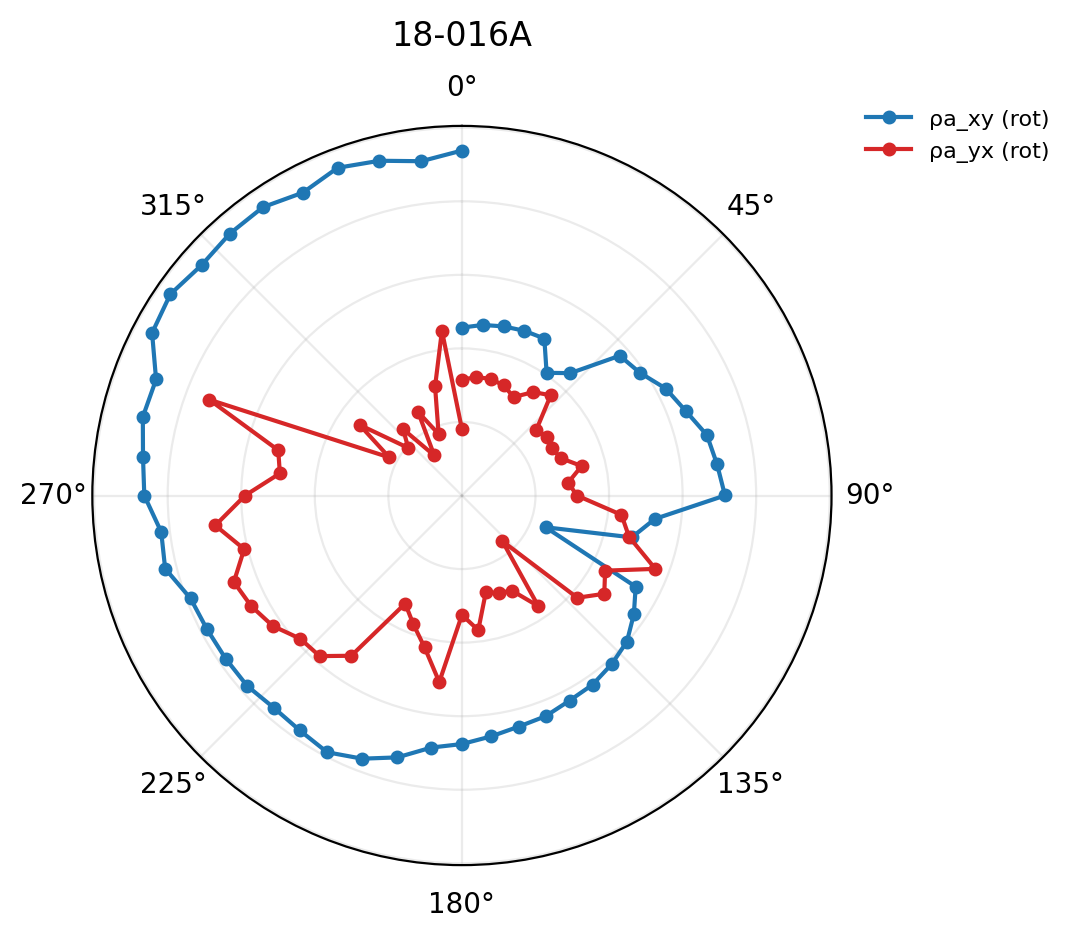

Use rotate="none" for a raw component view, rotate="deg" with
rotate_deg=... for a fixed rotation, and rotate="pt" for
phase-tensor based rotation. The radar plot is diagnostic: it helps you
see directional imbalance and frequency structure, but it is not itself a
static-shift estimator.
11.5.10. A Different Line, A Different Shift#
L18PLT is a tight, regularly spaced AMT grid – exactly the geometry AMA
was designed for, since its whole premise is that neighbouring stations
“still sample a comparable regional response” (the
Adaptive moving average glossary definition). Running the
identical estimator on pyCSAMT’s bundled KAP03 SAMTEX line
(data/MT/kap03lmt_edis) – a real natural-source MT profile with
roughly 60 km between stations – tests that assumption directly.
>>> kap = ensure_sites("data/MT/kap03lmt_edis", strict=True)
>>> kap_factors = estimate_ss_ama(
... kap,
... sort_by="lat",
... half_window=3,
... max_skew=45.0,
... )
>>> len(list(kap))
26
>>> kap_factors[["station", "delta_log10_rho", "fac_z", "n_used"]].describe()
delta_log10_rho fac_z n_used
count 26.000000 26.000000 26.000000
mean -0.151965 2.970858 17.269231
std 0.951918 7.898524 3.504942
min -3.229146 0.247096 7.000000
25% -0.560083 0.633952 16.250000
50% -0.038582 1.046508 18.500000
75% 0.397313 1.905694 20.000000
max 1.214268 41.169247 20.000000
>>> kap_factors[["station", "delta_log10_rho", "fac_z", "n_used"]].sort_values("delta_log10_rho").head(3)
station delta_log10_rho fac_z n_used
17 kap151 -3.229146 41.169247 10
10 kap130 -1.594457 6.269440 15
4 kap115 -1.125988 3.655898 20
>>> kap_factors[["station", "delta_log10_rho", "fac_z", "n_used"]].sort_values("delta_log10_rho").tail(3)
station delta_log10_rho fac_z n_used
3 kap112 1.096054 0.283122 20
15 kap145 1.200293 0.251104 17
21 kap160 1.214268 0.247096 20
kap151 is the extreme case: \(\delta = -3.23\), an implied
impedance correction factor of 41. Nothing on L18PLT comes close to
that – its own worst station only reached a factor of 2.69. A
factor of 41 is not a plausible galvanic static shift; it is AMA being
asked to reconcile a station against neighbours that, at a real 60 km
spacing, may simply be sampling different regional structure.
>>> fig, axes = plt.subplots(1, 2, figsize=(13.0, 4.4))
>>> x = np.arange(len(factors))
>>> colors_l = np.where(factors["delta_log10_rho"] >= 0.0, "C0", "C3")
>>> _ = axes[0].bar(x, factors["delta_log10_rho"], color=colors_l, alpha=0.82)
>>> _ = axes[0].axhline(0.0, color="0.2", lw=0.8)
>>> _ = axes[0].set_title("L18PLT (AMT, tight grid)")
>>> _ = axes[0].set_ylabel(r"$\delta\log_{10}\rho$")
>>> _ = axes[0].set_xlabel("Station index")
>>> axes[0].grid(True, axis="y", alpha=0.25)
>>> xk = np.arange(len(kap_factors))
>>> colors_k = np.where(kap_factors["delta_log10_rho"] >= 0.0, "C0", "C3")
>>> _ = axes[1].bar(xk, kap_factors["delta_log10_rho"], color=colors_k, alpha=0.82)
>>> _ = axes[1].axhline(0.0, color="0.2", lw=0.8)
>>> _ = axes[1].set_title("KAP03 (MT, ~60 km station spacing)")
>>> _ = axes[1].set_xlabel("Station index")
>>> axes[1].grid(True, axis="y", alpha=0.25)
>>> _ = fig.suptitle("Same AMA estimator, two very different survey geometries")
>>> fig.tight_layout()
>>> fig.savefig("ss_l18plt_vs_kap03.png", dpi=200)
>>> plt.close(fig)
Most of KAP03’s bars sit in the same rough range as L18PLT’s, which is
exactly what makes kap151 worth noticing rather than dismissing the
whole table: a handful of moderate, plausible-looking numbers alongside
one implausible outlier is a harder failure mode to catch by eye than a
uniformly chaotic table would be. On a widely spaced profile like this
one, a half-window of three neighbours can span well over 100 km –
easily wide enough to cross real geological boundaries, not just
shallow near-surface heterogeneity. AMA has no way to tell a genuine
deep resistivity contrast apart from galvanic static shift; it only
knows how to compare a station against whatever half_window tells
it counts as “nearby.” Widen or narrow half_window and re-run
before trusting a number this large, and treat agreement with an
independent estimator (the section above) as more important here than
it was on the tighter L18PLT grid.
11.5.11. When Static-Shift Numbers Are Not Real Static Shift#
Every example so far assumes the distortion actually is a station-
level galvanic offset. pyCSAMT’s bundled data/CSAMT line – the real
ten-station Tongkeng grounded dipole transmitter survey examined
in CSAMT Field-Zone Classification and Source Effects And Near-Field Correction – is a
useful stress test precisely because we already know, from those two
pages, exactly what is really wrong with it: at its real ~1 km
transmitter offset, 95 percent of its station-frequency rows are
source-overprint flagged and 69 percent sit in the near field. None of
that is station-level galvanic distortion. It is coherent, frequency-
dependent near-field bias shared by the whole line.
>>> csamt = ensure_sites("data/CSAMT", recursive=False, strict=True)
>>> csamt_factors = estimate_ss_ama(
... csamt,
... sort_by="name",
... half_window=3,
... max_skew=45.0,
... )
>>> len(list(csamt))
10
>>> csamt_factors[["station", "delta_log10_rho", "fac_z", "n_used"]]
station delta_log10_rho fac_z n_used
0 csa000 0.085430 0.906327 9
1 csa050 -0.006867 1.007937 11
2 csa100 0.032394 0.963392 13
3 csa150 -0.327626 1.458186 14
4 csa200 -0.230850 1.304443 15
5 csa250 -0.048445 1.057359 15
6 csa300 -0.000545 1.000627 11
7 csa350 0.198267 0.795915 12
8 csa400 0.083238 0.908617 12
9 csa450 -0.079181 1.095445 13
>>> fig, ax = plt.subplots(figsize=(7.8, 4.6))
>>> for i, edi in enumerate(_iter_items(csamt)):
... name = _name(edi, i)
... _, z, freq = _get_z_block(edi)
... rho = _rho_det_from_z(z, freq)
... _ = ax.loglog(1.0 / freq, rho, "-o", ms=3, lw=1.0, label=name)
...
>>> _ = ax.set_xlabel("Period (s)")
>>> _ = ax.set_ylabel(r"$\rho_{a,det}$ ($\Omega\,m$)")
>>> _ = ax.set_title("Tongkeng CSAMT: raw station-level curves (near-field runaway)")
>>> ax.grid(True, which="both", alpha=0.25)
>>> _ = ax.legend(fontsize=7, ncol=2)
>>> fig.tight_layout()
>>> fig.savefig("tongkeng_raw_curves.png", dpi=200)
>>> plt.close(fig)
Unlike KAP03’s implausible outlier, every delta_log10_rho here is
modest – -0.33 to +0.20, factors from 0.80 to 1.46. On
its own, this table looks like an unremarkable, mild static-shift
correction. But every one of these ten stations shares essentially the
same wildly rising raw curve shape (visible above: apparent resistivity
climbing from a few hundred to tens of millions of \(\Omega\cdot
\mathrm{m}\) toward long period, at every station in lockstep). Because
AMA only ever measures one station against its neighbours, and every
neighbour here shares the same coherent near-field bias, there is
almost nothing left to detect station-to-station – the survey’s real,
severe problem is largely invisible to a method built to find
relative outliers, not absolute distortion shared by the whole line.
>>> from pycsamt.emtools import detect_near_surface
>>> csamt_ns = detect_near_surface(
... csamt,
... f_split=100.0,
... ns_threshold=2.0,
... ss_threshold=0.1,
... sort_by="name",
... half_window=3,
... max_skew=45.0,
... )
>>> csamt_ns[["station", "ns_index", "gradient_delta", "ss_delta_log10", "distortion_type"]]
station ns_index gradient_delta ss_delta_log10 distortion_type
0 csa000 3.876648 0.188574 0.085430 near_surface
1 csa050 1.208350 0.016193 -0.006867 clean
2 csa100 0.378416 0.269660 0.032394 clean
3 csa150 5.486665 0.191008 -0.327626 mixed
4 csa200 9.090350 0.872557 -0.230850 mixed
5 csa250 1.897433 0.673411 -0.048445 clean
6 csa300 3.832139 0.222402 -0.000545 near_surface
7 csa350 0.797019 0.369456 0.198267 static
8 csa400 0.826789 0.177135 0.083238 clean
9 csa450 1.954039 0.044870 -0.079181 clean
>>> csamt_ns["distortion_type"].value_counts()
distortion_type
clean 5
near_surface 2
mixed 2
static 1
Name: count, dtype: int64
detect_near_surface does better than the static-shift table alone –
csa000, csa300, csa150, and csa200 are flagged
near_surface or mixed, correctly picking up real frequency-
dependent curve-shape distortion in about 40 percent of stations, not
nothing. But five stations still read "clean", and none of them
carry a label that says “the whole line is contaminated by an
unmodelled transmitter.” That is the structural limit of every
diagnostic on this page: they all compare a station to its neighbours
or to its own high-versus-low-frequency spread, never to an absolute,
offset-aware physical benchmark. A distortion shared coherently by an
entire line – exactly what a single nearby transmitter produces – can
still look partly or fully clean to tools built to find relative
outliers. Only Source Effects And Near-Field Correction’s offset-aware diagnostics,
which use the real transmitter geometry rather than station-to-station
comparison, actually see the full 95-percent-overprint picture here.
Never treat estimate_ss_ama or detect_near_surface results on
real CSAMT data as a final answer without first checking
Source Effects And Near-Field Correction and CSAMT Field-Zone Classification for source-
geometry contamination – a mild or “clean” label from this page’s
tools is not proof the data is trustworthy.
11.5.12. Near-Surface Versus Static Shift#
Conventional static-shift correction assumes the distortion is a constant multiplier. Some shallow effects are frequency-dependent: the high frequency part of the curve may become much noisier or steeper than the low frequency part. A single static multiplier cannot fix that behavior.
detect_near_surface classifies each station using three diagnostics:
Diagnostic |
Meaning |
|---|---|
|
Ratio of high-frequency residual spread to low-frequency residual
spread. Values above |
|
Difference between high-frequency and low-frequency log-log slopes. Larger values indicate a change in curve shape. |
|
AMA-like static-shift residual. Values above |
>>> from pycsamt.emtools import plot_ns_detection
>>> ns = detect_near_surface(
... sites,
... f_split=1.0,
... ns_threshold=2.0,
... ss_threshold=0.1,
... sort_by="lat",
... half_window=3,
... max_skew=45.0,
... )
>>> ns[[
... "station",
... "ns_index",
... "gradient_delta",
... "ss_delta_log10",
... "distortion_type",
... ]]
station ns_index gradient_delta ss_delta_log10 distortion_type
0 18-001A NaN NaN 0.253122 static
1 18-002U NaN NaN 0.190495 static
2 18-003A NaN NaN -0.324518 static
3 18-004A NaN NaN -0.136452 static
4 18-005U NaN NaN 0.145856 static
5 18-006A NaN NaN -0.159680 static
6 18-007U NaN NaN -0.034320 clean
7 18-008U NaN NaN -0.059197 clean
8 18-009A NaN NaN 0.291038 static
9 18-010U NaN NaN 0.123971 static
10 18-011A NaN NaN -0.161336 static
11 18-012A NaN NaN -0.307507 static
12 18-013U NaN NaN 0.249834 static
13 18-014A NaN NaN 0.139753 static
14 18-015U NaN NaN 0.430318 static
15 18-016A NaN NaN -0.168493 static
16 18-017U NaN NaN 0.195199 static
17 18-018A NaN NaN -0.800131 static
18 18-019U NaN NaN -0.787932 static
19 18-020A NaN NaN 0.358638 static
20 18-021U NaN NaN 0.591694 static
21 18-021B NaN NaN 0.680691 static
22 18-022U NaN NaN -0.543740 static
23 18-022V NaN NaN 0.231534 static
24 18-023A NaN NaN -0.120332 static
25 18-023V NaN NaN 0.217930 static
26 18-024U NaN NaN -0.437968 static
27 18-025A NaN NaN -0.263221 static
>>> ns["distortion_type"].value_counts()
distortion_type
static 26
clean 2
Name: count, dtype: int64
>>> _ = plot_ns_detection(
... sites,
... f_split=1.0,
... ns_threshold=2.0,
... ss_threshold=0.1,
... sort_by="lat",
... half_window=3,
... max_skew=45.0,
... show_ss=True,
... )
>>> plt.gcf().savefig("ss_near_surface_detection.png", dpi=200, bbox_inches="tight")
>>> plt.close(plt.gcf())
ns_index and gradient_delta come back NaN here because
L18PLT’s frequency grid has too few native samples below f_split=1.0
Hz on this line – an honest missing-data result, not a computation
failure. 26 of 28 stations still read "static" from
ss_delta_log10 alone, consistent with the AMA table above; only two
(18-007U, 18-008U, both with |delta| < 0.1) are close enough
to zero to call "clean".
The distortion_type column has four possible values:
Type |
Meaning |
|---|---|
|
No strong near-surface index and no strong static-shift residual. |
|
Static-shift residual is large, but the high-frequency residual spread is not. A conventional static-shift correction may help. |
|
High-frequency residual spread is large, but static residual is not. Treat this as frequency-dependent distortion, not as a simple multiplier. |
|
Both diagnostics are large. Static correction may remove the constant part, but the remaining frequency-dependent effect needs separate geological and inversion judgment. |
11.5.13. Recommended Processing Pattern#
For a survey report, keep the static-shift workflow explicit:
>>> from pycsamt.emtools import (
... apply_ss_factors,
... detect_near_surface,
... ensure_sites,
... estimate_ss_ama,
... ss_comparison_psection,
... )
>>> edi_dir = Path("data/AMT/WILLY_DATA/L18PLT")
>>> rp_sites = ensure_sites(edi_dir, recursive=True)
>>> rp_factors = estimate_ss_ama(
... rp_sites,
... sort_by="lat",
... half_window=3,
... pband=(1e-4, 10.0),
... max_skew=45.0,
... )
>>> rp_factors.to_csv("static_shift_factors.csv", index=False)
>>> rp_ns = detect_near_surface(
... rp_sites,
... f_split=1.0,
... sort_by="lat",
... half_window=3,
... max_skew=45.0,
... )
>>> rp_ns.to_csv("near_surface_diagnostics.csv", index=False)
>>> accepted = rp_factors.merge(
... rp_ns[["station", "distortion_type"]],
... on="station",
... how="left",
... )
>>> accepted.groupby("distortion_type", dropna=False)["station"].count().rename("n_stations")
distortion_type
clean 2
static 26
Name: n_stations, dtype: int64
>>> rp_corrected = apply_ss_factors(
... rp_sites,
... rp_factors,
... key="fac_z",
... inplace=False,
... )
>>> fig = ss_comparison_psection(
... rp_sites,
... method="ama",
... sort_by="lat",
... half_window=3,
... pband=(1e-4, 10.0),
... max_skew=45.0,
... show_delta=True,
... )
>>> fig.savefig("ss_recommended_comparison.png", dpi=200, bbox_inches="tight")
>>> plt.close(fig)
The important decisions are visible in that script: loader, station ordering, period band, skew threshold, accepted estimator, saved factor table, and a near-surface check before interpreting the correction. On a survey with real controlled-source geometry, add one more step before this pattern: run the Source Effects And Near-Field Correction and CSAMT Field-Zone Classification diagnostics first, exactly as the CSAMT section above did, so a coherent source-geometry problem is never mistaken for something this page’s station-relative tools can fully see.
11.5.14. Common Pitfalls#
sort_by does not describe the coordinate you like best; it describes
the along-line order used by the neighbourhood estimator. A north-south
line usually wants sort_by="lat". An east-west line usually wants
sort_by="lon".
max_skew is a filter, not a quality score. A strict value can leave
too few samples for a complex survey. Check n_used before trusting
the factors.
Static shift changes level, not shape. If the before/after station plot would need a frequency-dependent correction to align the curves, use the near-surface diagnostics and interpret with caution.
Do not apply an empty or nearly empty factor table just because the code returns without error. Empty estimates are a valid no-op outcome for single-station inputs or surveys where no station has usable neighbours.
Prefer fac_z for impedance correction. fac_rho is the
resistivity-domain factor and is useful for interpretation, but
apply_ss_factors scales Z.
half_window implicitly defines what “local” means. A window sized
for a tightly spaced AMT grid can span real geological structure on a
widely spaced natural-source MT profile – KAP03’s kap151 outlier
above (implied factor 41) is exactly what that mismatch looks like.
Check the real station spacing, not just the station count, before
trusting the number.
A “static” or “clean” label from estimate_ss_ama or
detect_near_surface only means no station-relative anomaly was
found. It cannot rule out coherent, survey-wide contamination – such as
uncorrected CSAMT near-field bias – that affects every station
similarly. Cross-check controlled-source data against
Source Effects And Near-Field Correction first.
11.5.15. Worked Example#
The gallery example uses the L18PLT survey and walks through raw curve spread, AMA estimation, exact factor application, estimator comparison, QC wrappers, radar plots, and near-surface classification.
Open the rendered gallery page here: Static-shift estimation, correction, and QC (pycsamt.emtools.ss).
