Loading Map Data#

The mapping package uses one normalized object, pycsamt.map.MapData, for every station map, profile pseudosection, and 3-D view. You rarely need to build MapData by hand. Most public plotting functions accept the same inputs directly and call the normalizer for you.

Use this page when you want explicit control over loading, line grouping, or pre-flight checks before drawing a map.

Loading Philosophy#

The loader follows the science API rather than the web app internals. It delegates EDI parsing to pycsamt.emtools._core.ensure_sites(), then extracts the small mapping contract needed by the renderers:

  • station identifier;

  • latitude, longitude, and elevation when available;

  • profile or survey-line name;

  • the original EDI-like object, including its impedance Z object.

This means a code workflow and the web workflow can start from the same survey files, but code users can inspect, group, transform, and export each intermediate object.

Input Types#

All loading helpers accept flexible EDI sources:

str or pathlib.Path

A single EDI file or a directory containing EDI files.

sequence of paths

A list or tuple of EDI files. A sequence of directories is treated as one line per directory by pycsamt.map.load_lines().

EDI-like iterable

Objects with station metadata and a Z attribute, including objects already loaded elsewhere in pyCSAMT.

Sites-like container

Any object accepted by ensure_sites. Containers exposing as_list() are unpacked into EDI-like objects.

MapData

Returned unchanged, so it is safe to pass normalized data through higher-level builders.

Single-Line Loading#

For one profile line, call pycsamt.map.ensure_map_data() directly or pass the source to a plotting helper.

from pycsamt.map import ensure_map_data, plot_station_map

source = "data/AMT/WILLY_DATA/L18PLT"

data = ensure_map_data(source, recursive=True)
print(data.station_ids)
print(data.lines)
print(data.has_geo)

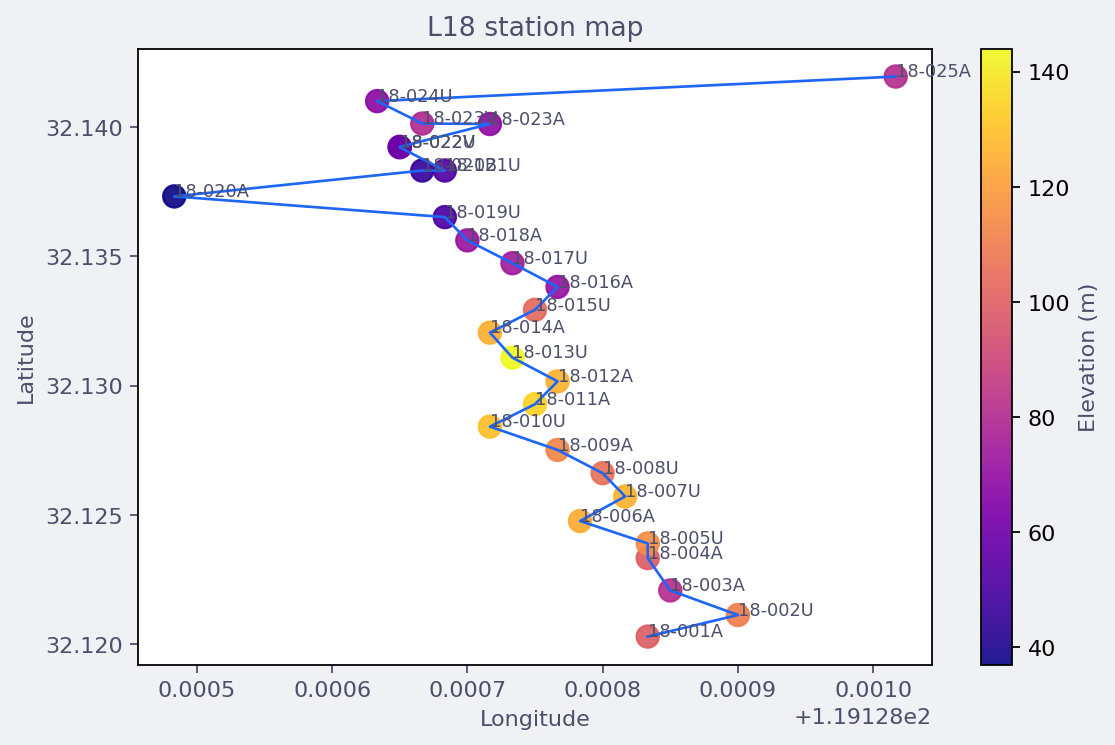

fig = plot_station_map(data, frequency=100.0)

ensure_map_data does not force every station to have geographic coordinates. data.has_geo tells you whether all normalized stations have finite latitude and longitude. If coordinates are missing, profile views can still use station order or distance, while geographic station maps may need CRS or coordinate preprocessing.

Multiple-Line Loading#

Use pycsamt.map.load_lines() when a survey is split across several folders or when you want one combined object for 3-D fence, block, or depth-slice views.

from pycsamt.map import load_lines

data = load_lines(
    "data/AMT/WILLY_DATA",
    detect="folder",
    recursive=True,
)

print(data.lines)
print(data.metadata["n_lines"])
print(data.station_ids[:5])

Each station is re-indexed across the combined survey and tagged with its resolved line name. The renderers then use data.profiles to draw separate profiles or offset lines in 3-D.

Grouping Modes#

When load_lines receives one directory, the detect option decides how files become lines.

detect="folder"

Group by immediate parent folder. This is the best option for layouts such as WILLY_DATA/L18PLT/*.edi and WILLY_DATA/L22PLT/*.edi. A flat folder becomes one line named after the folder.

detect="flat"

Treat every discovered EDI file under the directory as one line. Use this for a single profile stored in a nested directory tree.

detect="auto"

Group by station-ID prefix. Numeric prefixes are normalized with an L prefix. For example, station files beginning with 22 are grouped under L22. Use this when line folders are not reliable but station naming is consistent.

You can inspect the grouping without loading impedance data by calling pycsamt.map.resolve_line_groups().

from pycsamt.map import resolve_line_groups

groups = resolve_line_groups(
    "data/AMT/WILLY_DATA",
    detect="folder",
)

for line, source in groups.items():
    print(line, len(source))

Explicit Line Mapping#

The most reproducible multi-line workflow is an explicit mapping:

from pycsamt.map import load_lines

data = load_lines({
    "L18": "data/AMT/WILLY_DATA/L18PLT",
    "L22": "data/AMT/WILLY_DATA/L22PLT",
    "L26": "data/AMT/WILLY_DATA/L26PLT",
})

Mapping values may be directories, file lists, or EDI-like iterables. This is useful in notebooks and scripts where line names should be stable even if folder names later change.

If your EDI-like objects do not carry line metadata, but you already know station membership, pass line_map to pycsamt.map.ensure_map_data().

from pycsamt.map import ensure_map_data

data = ensure_map_data(
    edis,
    line_map={
        "L18": ["S001", "S002", "S003"],
        "L22": ["S101", "S102", "S103"],
    },
)

Line metadata embedded on the EDI object takes priority. The fallback order is:

  • line;

  • profile;

  • survey_line;

  • Line;

  • Profile;

  • station lookup in line_map;

  • default line name "line".

Normalized Contract#

MapData exposes the surface that all map renderers share:

data.station_ids      # tuple[str, ...]
data.lines            # tuple[str, ...]
data.has_geo          # bool
data.iter_edis()      # tuple of original EDI-like objects
data.stations         # tuple[StationRecord, ...]
data.profiles         # tuple[ProfileLine, ...]
data.metadata         # counts and loader metadata

Each pycsamt.map.StationRecord contains:

station.id
station.latitude
station.longitude
station.elevation
station.line
station.index
station.source

station.source is the original EDI-like object. Keep it when you need to inspect impedance arrays, frequencies, or file-level metadata after loading.

Pre-Flight Checks#

A good loading workflow checks the normalized survey before plotting:

from pycsamt.map import (
    ensure_map_data,
    select_frequency,
    value_at_frequency_details,
)

data = ensure_map_data("data/AMT/WILLY_DATA/L18PLT")
first_edi = data.iter_edis()[0]
freq = first_edi.Z.freq
selection = select_frequency(freq, requested=100.0)

if selection is None:
    raise RuntimeError("No finite positive frequency was found.")

print("requested:", selection.requested)
print("actual:", selection.actual)
print("relative delta:", selection.relative_delta)

values = value_at_frequency_details(
    data,
    frequency=selection.actual,
    quantity="rho",
    component="xy",
)
print("stations with values:", len(values))

This is especially helpful when different stations have slightly different frequency grids. Map extraction chooses the nearest finite positive frequency per station and can enforce a tolerance when you need a strict match.

Handling Missing or Partial Data#

The loader is designed for field surveys, where not every file is perfect.

  • Files without valid impedance are skipped by value-extraction helpers instead of breaking the whole map.

  • Non-finite coordinates become None on StationRecord.

  • If no line name is available, stations are grouped into "line".

  • Empty groups are ignored by load_lines.

  • A MapData with no stations is still a valid object; renderers can return empty figures rather than crashing.

For strict workflows, validate the counts yourself:

data = load_lines("data/AMT/WILLY_DATA", detect="folder")

if not data.stations:
    raise RuntimeError("No stations were loaded.")
if not data.has_geo:
    raise RuntimeError("Station map requires geographic coordinates.")
if len(data.lines) < 2:
    raise RuntimeError("Expected a multi-line survey.")

Using Loaded Data#

Once loaded, pass the same MapData object to station, profile, and 3-D builders. This avoids re-reading files and keeps grouping consistent across views.

from pycsamt.map import (
    load_lines,
    plot_station_map,
    plot_pseudosection,
    plot_volume_map,
)

data = load_lines("data/AMT/WILLY_DATA", detect="folder")

station_fig = plot_station_map(data, frequency=100.0)
section_fig = plot_pseudosection(data, component="xy")
volume_fig = plot_volume_map(data, mode="fence")

Use the export helpers to save any resulting figure:

from pycsamt.map import write_html

write_html(station_fig, "outputs/stations.html")

Troubleshooting#

FileNotFoundError

The path passed to load_lines or ensure_map_data does not exist. Resolve project-relative paths before loading.

ValueError: Unknown detect mode

detect must be one of "folder", "flat", or "auto".

No stations in the output

Check that EDI files were discovered and that ensure_sites can read them. Start with resolve_line_groups to confirm grouping.

Station map is empty

Inspect data.has_geo. Geographic maps require finite latitude and longitude unless you first reproject or provide coordinates.

Pseudosection has gaps

Some stations may be missing impedance values, or the requested frequency/period may not be present within tolerance. Inspect value_at_frequency_details for selected-frequency metadata.
