4.6. Exporting Map Figures

Use pycsamt.map.export_figure() when you want the figure export format to be inferred from the path or supplied through pycsamt.map.ExportOptions.

The export helpers work with the figure objects returned by station, profile, 3-D, overlay, and pycsamt.map.MapView workflows. They intentionally stay small: they create parent directories, route to the right backend method, and return the output path.

That returned pathlib.Path is part of the reproducibility contract. A script can write a map, record the exact artifact path, and later compare the file suffix, size, or serialized figure specification without repeating the plotting step.

The examples use one figure throughout so differences come from export format rather than changing map content:

>>> from pycsamt.map import (
...     StationMapOptions,
...     load_lines,
...     plot_station_map,
... )
>>> data = load_lines(
...     "data/AMT/WILLY_DATA",
...     detect="folder",
...     recursive=True,
... )
>>> fig = plot_station_map(
...     data,
...     options=StationMapOptions(overlay="elevation"),
... )
>>> print(len(data.stations), len(fig.data))
128 10

4.6.1. Choosing An Export Helper

Use the helper that matches your goal:

write_html

Save an interactive Plotly figure as HTML.

save_png

Save a Matplotlib figure or a Plotly figure as PNG.

write_image

Save a Plotly static image export in any format supported by Plotly image export, such as PNG, SVG, PDF, or WebP.

write_json

Save a Plotly figure JSON specification.

write_dict

Save a serialized figure dictionary as JSON text.

figure_to_dict

Return a Python dictionary without writing a file.

export_figure

Dispatch to the correct helper from an pycsamt.map.ExportOptions object.

4.6.2. Output Directories

All write helpers create parent directories automatically.

>>> from pycsamt.map import write_html
>>> path = write_html(fig, "outputs/maps/station.html")
>>> print(path.as_posix())
outputs/maps/station.html
>>> print(path.exists())
True

If the directory does not exist, it is created before the figure is written.

4.6.3. HTML

HTML is the safest default for Plotly station, profile, and 3-D maps. It preserves hover text, legends, zooming, panning, map tiles, and 3-D rotation.

>>> from pycsamt.map import ExportOptions, export_figure
>>> path = export_figure(
...     fig,
...     ExportOptions(path="station.html"),
... )
>>> print(path.suffix, path.exists())
.html True

You can also call the direct helper:

>>> from pycsamt.map import write_html
>>> path = write_html(
...     fig,
...     "station_cdn.html",
...     include_plotlyjs="cdn",
... )
>>> print(path.name)
station_cdn.html
>>> print("cdn.plot.ly" in path.read_text(encoding="utf-8"))
True

include_plotlyjs is passed to Plotly’s write_html method. Common values are:

"cdn"

Keep files smaller by loading Plotly JavaScript from a CDN.

True

Embed Plotly JavaScript inside the HTML file for offline sharing.

False

Do not include Plotly JavaScript. Use only when the surrounding page already loads Plotly.

The file-size tradeoff is deterministic: include_plotlyjs=True embeds the JavaScript runtime in every file, while "cdn" stores a small HTML document that loads Plotly externally. For archiving field deliverables, prefer True when offline review matters; for lightweight docs or dashboards, "cdn" is usually enough.

4.6.4. Explicit Format

If the path has no suffix, set format. format may be provided with or without a leading dot.

>>> path = export_figure(
...     fig,
...     ExportOptions(path="station", format="html"),
... )
>>> print(path.name, path.exists())
station True
>>> try:
...     export_figure(fig, ExportOptions(path="station_no_suffix"))
... except ValueError as exc:
...     print(exc)
Export path must include an extension or ExportOptions.format must be set.

Without a suffix or explicit format, export_figure raises ValueError rather than guessing.

The explicit format selects a writer; it does not modify path. Thus path="station" and format="html" write an HTML document named station. Use path="station.html" when downstream software or a web server relies on the conventional extension.

The dispatch rule is simple. Let \(e\) be the lower-case suffix of path unless format is supplied; then format replaces \(e\). .html and .htm route to HTML, .png routes to save_png, .json and .dict route to serialized figure exports, and other non-empty suffixes are passed to Plotly write_image.

4.6.5. PNG

Matplotlib figures are written with savefig. Plotly figures use write_image and require Kaleido for static image export.

>>> path = export_figure(
...     fig,
...     ExportOptions(path="station.png", scale=2.0),
... )
>>> print(path.name)

Direct helper:

>>> from pycsamt.map import save_png
>>> path = save_png(
...     fig,
...     "station.png",
...     width=1400,
...     height=900,
...     scale=2.0,
... )
>>> print(path.name)

For Plotly figures, width, height, and scale are forwarded to Plotly image export. For Matplotlib figures, Plotly-specific keys are filtered out before calling savefig.

>>> from pycsamt.map import StationMapOptions, plot_station_map
>>> static = plot_station_map(
...     data,
...     options=StationMapOptions(
...         backend="matplotlib",
...         overlay="elevation",
...     ),
... )
>>> path = save_png(
...     static,
...     "station_static.png",
...     dpi=200,
...     bbox_inches="tight",
... )
>>> print(path.name, path.exists())
station_static.png True

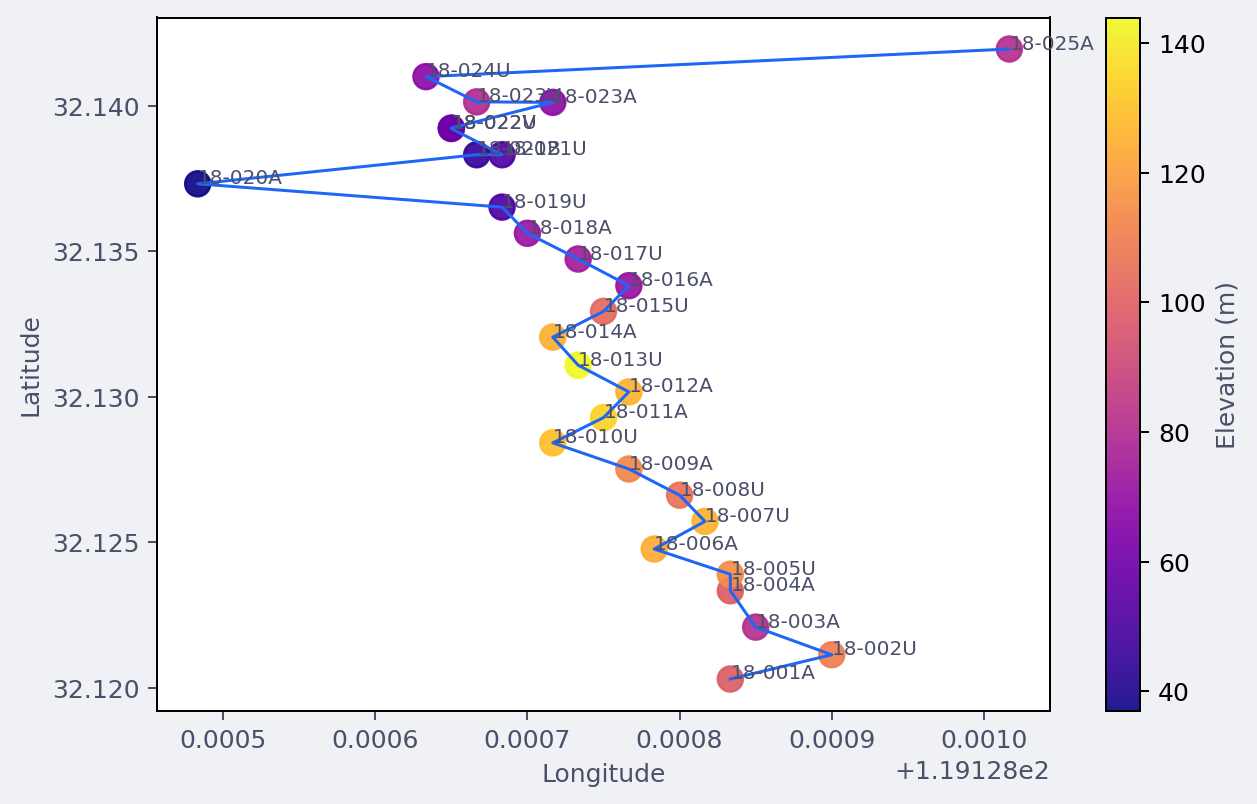

A Matplotlib station-map PNG written through save_png. Plotly PNG/SVG/PDF export follows the same helper name, but uses Kaleido under the hood.

Static Plotly images require Kaleido. If Kaleido is missing, pyCSAMT raises an ImportError with a clearer message.

4.6.6. Other Static Image Formats

Use pycsamt.map.write_image() for non-PNG Plotly image formats:

>>> from pycsamt.map import write_image
>>> svg = write_image(fig, "station.svg", width=1200, height=800)
>>> pdf = write_image(fig, "profile.pdf", width=1400, height=900)
>>> print(svg.name, pdf.name)
station.svg profile.pdf

export_figure also routes unknown suffixes to write_image. This lets Plotly decide whether a format is supported.

4.6.7. JSON And Dict Export

write_json uses Plotly’s JSON methods when available and falls back to dictionary export. write_dict writes the figure dictionary as JSON text.

>>> from pycsamt.map import write_dict, write_json
>>> json_path = write_json(fig, "station.json")
>>> print(json_path.suffix, json_path.exists())
.json True
>>> try:
...     dict_path = write_dict(fig, "station.dict")
... except TypeError as exc:
...     print(type(exc).__name__, "not JSON serializable" in str(exc))
TypeError True

Use JSON or dict exports when you want to archive the figure specification, compare figure output in tests, or post-process traces in another tool.

For Plotly figures that contain NumPy-backed arrays, prefer write_json because Plotly’s JSON encoder knows how to serialize those arrays. write_dict is intentionally plain json.dumps and is best for already JSON-serializable dictionaries.

>>> from pycsamt.map import figure_to_dict
>>> spec = figure_to_dict(fig)
>>> trace_types = [trace.get("type") for trace in spec.get("data", [])]
>>> print(len(trace_types), sorted(set(trace_types)))
10 ['scattermap']

figure_to_dict requires a Plotly-like object with to_dict or to_plotly_json. Matplotlib figures do not expose this contract.

The dictionary returned by figure_to_dict is useful for in-memory inspection, but it is not guaranteed to contain only JSON-native values. Use write_json when the goal is a portable file.

4.6.8. ExportOptions Reference

pycsamt.map.ExportOptions stores the common export controls:

path

Output path.

format

Optional format override. Use this when path has no suffix or when you want to force a specific export route.

width and height

Static image dimensions for Plotly image export.

scale

Static Plotly image scale factor. Defaults to 2.0.

include_plotlyjs

Passed to Plotly HTML export. Defaults to "cdn".

4.6.9. Batch Export

Because the helpers return pathlib.Path, batch workflows can record or log output paths easily.

>>> from pycsamt.map import (
...     ExportOptions,
...     StationMapOptions,
...     export_figure,
...     plot_station_map,
... )
>>> overlays = ["index", "elevation", "rho", "phase"]
>>> outputs = []
>>> for overlay in overlays:
...     figure = plot_station_map(
...         data,
...         options=StationMapOptions(
...             overlay=overlay,
...             frequency=100.0,
...         ),
...     )
...     outputs.append(export_figure(
...         figure,
...         ExportOptions(path=f"outputs/station_{overlay}.html"),
...     ))
>>> print([path.name for path in outputs])
['station_index.html', 'station_elevation.html', 'station_rho.html', 'station_phase.html']
>>> print(len(outputs))
4

4.6.10. MapView Export

pycsamt.map.MapView uses the same export machinery. It builds the requested view, creates ExportOptions, and calls export_figure internally.

>>> from pycsamt.map import MapView
>>> mv = MapView(data)
>>> path = mv.export(
...     "outputs/fence.html",
...     view="map3d",
...     mode="fence",
...     depth_range=(0.0, 2500.0),
... )
>>> print(path.name, path.exists())
fence.html True

This keeps application-style workflows and direct function workflows on the same export path.

For a compact survey handoff, pycsamt.map.MapView.export_all() renders several standard views into one directory:

>>> written = mv.export_all(
...     "outputs/willy_map_bundle",
...     fmt="html",
...     views=("station", "pseudosection", "map3d"),
... )
>>> print({name: path.name for name, path in written.items()})
{'station': 'station.html', 'pseudosection': 'pseudosection.html', 'map3d': 'map3d.html'}

Each view is rebuilt from the same normalized pycsamt.map.MapData. The convenience method guarantees a common destination and format, but it does not freeze plotting options or input data. Archive the generating script and source-data version beside the bundle when exact regeneration matters.

4.6.11. Round-Trip And Testing Workflows

JSON and dictionary exports are useful when you want to inspect or test figure content without rendering images.

>>> from pycsamt.map import figure_to_dict
>>> spec = figure_to_dict(fig)
>>> trace_types = [trace.get("type") for trace in spec["data"]]
>>> print(len(trace_types), sorted(set(trace_types)))
10 ['scattermap']
>>> assert "scatter" in trace_types or "scattermap" in trace_types

For persistent artifacts, prefer write_json:

>>> from pycsamt.map import write_json
>>> path = write_json(fig, "outputs/station_spec.json")
>>> print(path.as_posix())
outputs/station_spec.json

4.6.12. Recommended Formats

Station maps

Use HTML for inspection and PNG/SVG for reports.

Profile pseudosections

Use HTML while tuning options, then PNG/SVG/PDF for publication drafts.

3-D maps

Prefer HTML. Static images capture only one camera angle.

Automated tests

Use figure_to_dict or write_json rather than pixel images.

4.6.13. Troubleshooting

TypeError: HTML export requires a Plotly-like figure

write_html only works with figures exposing write_html. Matplotlib figures should be saved with save_png or fig.savefig.

ImportError mentioning Kaleido

Plotly static image export needs Kaleido. Install the full/docs environment or export HTML instead.

ValueError about extension or format

export_figure needs a file suffix such as .html or .png, or an explicit ExportOptions.format.

Unexpected Matplotlib keyword behavior

save_png removes Plotly-only keys such as scale, width, and height before calling Matplotlib savefig. Use Matplotlib options like dpi and bbox_inches for static Matplotlib figures.

Dictionary export fails

The object must expose to_dict or to_plotly_json. Use JSON or dict export for Plotly-like figures, not plain Matplotlib figures.
