4.2. Station Maps

Station maps show station positions, line traces, labels, and scalar overlay values. Use them for survey QC, coverage inspection, and quick comparison of per-station quantities.

The station-map API is intentionally code-first. It accepts the same sources described in Loading Map Data: EDI folders, EDI files, file lists, EDI-like objects, Sites containers, or an already-normalized pycsamt.map.MapData / MapData object.

4.2.1. What A Station Map Shows

A station map combines three kinds of information:

• station locations or station order;

• optional profile-line traces and station labels;

• one scalar value per station, called the overlay.

If the normalized table contains finite latitude and longitude values, the Plotly backend builds a geographic map; rows with incomplete pairs appear as gaps. If neither coordinate axis is usable, it falls back to a profile-style station-index plot rather than failing. In normalized form, station \(s_i\) contributes a coordinate pair \((\lambda_i,\phi_i)\) when longitude and latitude are finite, and an overlay value \(v_i\). Geographic maps draw \((\lambda_i,\phi_i,v_i)\); fallback maps draw \((i,v_i)\), where \(i\) is the zero-based station index. This keeps the diagnostic reproducible even before coordinate cleanup is complete.

4.2.2. Function API

Use pycsamt.map.plot_station_map() for one-shot scripts and notebooks. Rendering options are passed with pycsamt.map.StationMapOptions.

>>> from pycsamt.map import (
...     StationMapOptions,
...     ensure_map_data,
...     plot_station_map,
...     value_at_frequency_details,
... )

>>> source = "data/AMT/WILLY_DATA/L18PLT"
>>> data = ensure_map_data(source)
>>> options = StationMapOptions(
...     overlay="rho",
...     frequency=10.0,
...     frequency_tolerance=2.0,
...     component="xy",
...     show_profiles=True,
...     show_labels=True,
... )
>>> fig = plot_station_map(data, options=options)
>>> print(len(fig.data), tuple(trace.type for trace in fig.data))
2 ('scattermap', 'scattermap')

>>> selected = value_at_frequency_details(
...     data,
...     frequency=10.0,
...     quantity="rho",
...     component="xy",
...     tolerance=2.0,
... )
>>> print(len(selected))
28
>>> sorted({item.selection.actual for item in selected.values()})
[10.16]

The function returns a Plotly figure by default. You can display it in a notebook with fig.show() or export it with the helpers described in Exporting Map Figures.

The two traces are the station markers and the profile line. The requested 10 Hz sample is taken from the nearest available frequency grid value, 10.16 Hz, for every station in this sample line.

4.2.3. Reusing Loaded Data

For repeated maps, load once and reuse the same pycsamt.map.MapData.

In v2.1, the normalizer delegates to the more robust pycsamt.emtools._core.ensure_sites(). Its default "auto" ordering uses coordinate-derived chainage only when the sites form a credible profile; otherwise it preserves input order. The decision is recorded on data.sites.ordering, so a plot can report why its station sequence changed or remained unchanged.

>>> from pycsamt.map import (
...     StationMapOptions,
...     ensure_map_data,
...     plot_station_map,
...     value_at_frequency_details,
... )

>>> data = ensure_map_data("data/AMT/WILLY_DATA/L18PLT")
>>> report = data.sites.ordering
>>> print(report["requested"], report["applied"], report["n_sites"])
auto chainage 28
>>> print(round(report["span_m"], 1), round(report["linearity"], 4))
2403.0 0.9999

>>> rho_options = StationMapOptions(
...     overlay="rho", frequency=100.0, component="xy"
... )
>>> rho = plot_station_map(data, options=rho_options)

>>> phase_options = StationMapOptions(
...     overlay="phase",
...     frequency=100.0,
...     component="xy",
...     cmap="Cividis",
... )
>>> phase = plot_station_map(data, options=phase_options)
>>> print(len(rho.data), len(phase.data))
2 2

>>> rho_values = value_at_frequency_details(
...     data, frequency=100.0, quantity="rho", component="xy"
... )
>>> phase_values = value_at_frequency_details(
...     data, frequency=100.0, quantity="phase", component="xy"
... )
>>> print(round(min(v.value for v in rho_values.values()), 3),
...       round(max(v.value for v in rho_values.values()), 3))
22.899 2461.779
>>> print(round(min(v.value for v in phase_values.values()), 3),
...       round(max(v.value for v in phase_values.values()), 3))
3.313 59.84

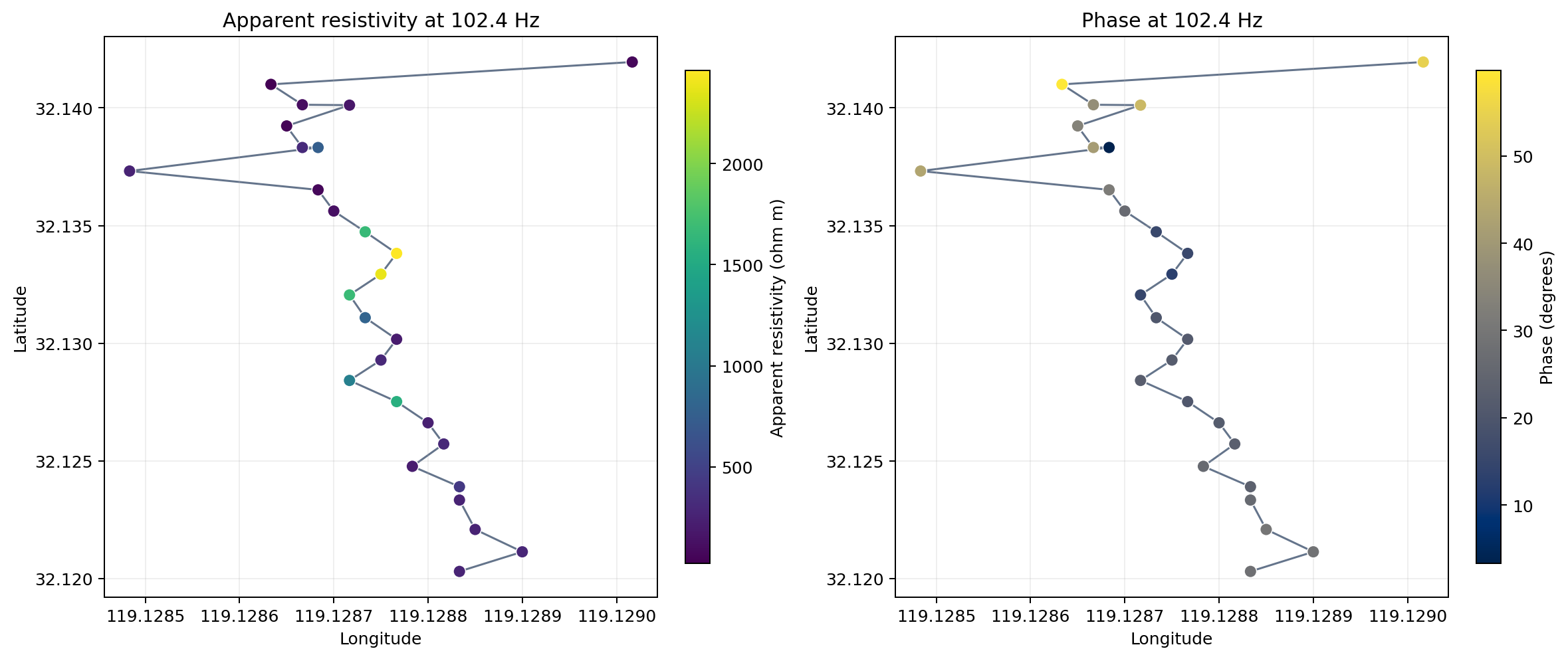

The same loaded MapData rendered twice: once as \(\rho_{a,xy}\) and once as \(\varphi_{xy}\) at the selected 102.4 Hz sample. The central part of the profile contains the strongest resistive values, whereas the largest phases occur mainly near the northern end. Their spatial patterns are therefore not interchangeable: a bright resistivity marker does not automatically imply a large phase at the same station.

4.2.4. Builder API

Use pycsamt.map.StationMap when you want an immutable builder style. with_overlay and with_options return new builders that reuse the same normalized data.

>>> from pycsamt.map import StationMap

>>> builder = StationMap("data/AMT/WILLY_DATA/L18PLT")
>>> depth_builder = builder.with_overlay("skin_depth", frequency=10.0)
>>> clean_builder = depth_builder.with_options(show_labels=False)
>>> fig = clean_builder.figure()
>>> print(len(fig.data), fig.data[0].mode)
2 markers

This pattern is convenient when a notebook or application lets a user switch overlays without re-reading the EDI files.

The original builder is unchanged: each method returns a new builder with a copied options dataclass while all three builders point to the same normalized MapData.

4.2.5. Overlays

Supported overlay names include:

index or station

Station index along the line.

elevation

Station elevation, when present.

rho or resistivity

Apparent resistivity at the nearest frequency.

phase

Phase at the nearest frequency.

skin_depth or depth

Skin-depth scale computed from apparent resistivity and the actual selected frequency.

custom column name

If the overlay name matches a column in the station table, that column is used. Otherwise the station index is used as a safe fallback and the colorbar is labelled with the requested overlay name.

4.2.6. Frequency-Based Overlays

rho, phase, and skin_depth need a frequency. The map uses the nearest finite positive frequency for each station. Use frequency_tolerance when the match must be strict.

>>> from pycsamt.map import (
...     StationMapOptions,
...     plot_station_map,
...     value_at_frequency_details,
... )

>>> options = StationMapOptions(
...     overlay="rho",
...     frequency=100.0,
...     frequency_tolerance=5.0,
...     component="xy",
...     log_color=True,
...     value_range=(10.0, 10000.0),
... )
>>> fig = plot_station_map(data, options=options)
>>> matched = value_at_frequency_details(
...     data,
...     frequency=100.0,
...     quantity="rho",
...     component="xy",
...     tolerance=5.0,
... )
>>> print(len(matched))
28
>>> sorted({item.selection.actual for item in matched.values()})
[102.4]
>>> sorted({round(item.selection.relative_delta, 3)
...         for item in matched.values()})
[0.024]

The component option accepts the same component names used by the map core helpers:

"xy", "yx", "xx", "yy"

Individual impedance tensor components.

"avg"

Average of xy and yx.

"det"

Determinant-style derived value for resistivity, or an average for phase.

When log_color=True, only positive values are transformed with log10. Non-positive values become gaps in the color scale. For a requested frequency \(f_r\), station \(i\) selects \(f_i^\*\) by minimizing \(|f_{ik}-f_r|\) over its finite positive grid. A finite tolerance \(\tau\) keeps the station only when \(|f_i^\*-f_r|\le\tau\). Together, the index, selected frequency, and acceptance rule are

(1)\[k_i = \operatorname*{arg\,min}_{k:\,f_{ik}>0}|f_{ik}-f_r|, \qquad f_i^\* = f_{ik_i}, \qquad |f_i^\*-f_r|\leq\tau.\]

After the selection in (1), the xy apparent-resistivity overlay is

(2)\[v_i = \rho_{a,xy}(f_i^\*) = 0.2\,\frac{|Z_{xy}(f_i^\*)|^2}{f_i^\*}.\]

Equation (2) states the physical field-unit convention. During plotting, pyCSAMT reads the resistivity and phase arrays already computed by the EDI parser at index \(k_i\) rather than recomputing them from \(Z\). For phase, \(v_i=\arg Z_{xy}(f_i^\*)\) in degrees. For skin depth, the map uses

(3)\[v_i = \delta_i \approx 503 \sqrt{\frac{\rho_{a,xy}(f_i^\*)}{f_i^\*}}\ \mathrm{m}.\]

Equation (3) is a penetration-depth scale for an equivalent uniform conductor, not a recovered interface depth. Keep frequency, frequency_tolerance, component, and log_color fixed when comparing exported maps.

4.2.7. Labels, Lines, And Selection

Station maps can label stations, draw line traces, filter lines, and highlight one station.

>>> from pycsamt.map import StationMapOptions, load_lines, plot_station_map

>>> data = load_lines("data/AMT/WILLY_DATA", detect="folder")

>>> options = StationMapOptions(
...     overlay="elevation",
...     line_filter=("L18PLT", "L22PLT"),
...     selected_id="18-012A",
...     show_profiles=True,
...     show_labels=False,
...     marker_size=9,
... )
>>> fig = plot_station_map(data, options=options)
>>> print(data.lines)
('L18PLT', 'L22PLT', 'L26PLT', 'L30PLT', 'L34PLT')
>>> print(len(fig.data), tuple(trace.type for trace in fig.data))
4 ('scattermap', 'scattermap', 'scattermap', 'scattermap')
>>> tuple(len(trace.lat) for trace in fig.data)
(28, 28, 25, 25)

line_filter compares against normalized line names in data.lines. selected_id increases the selected station marker size; it does not remove other stations.

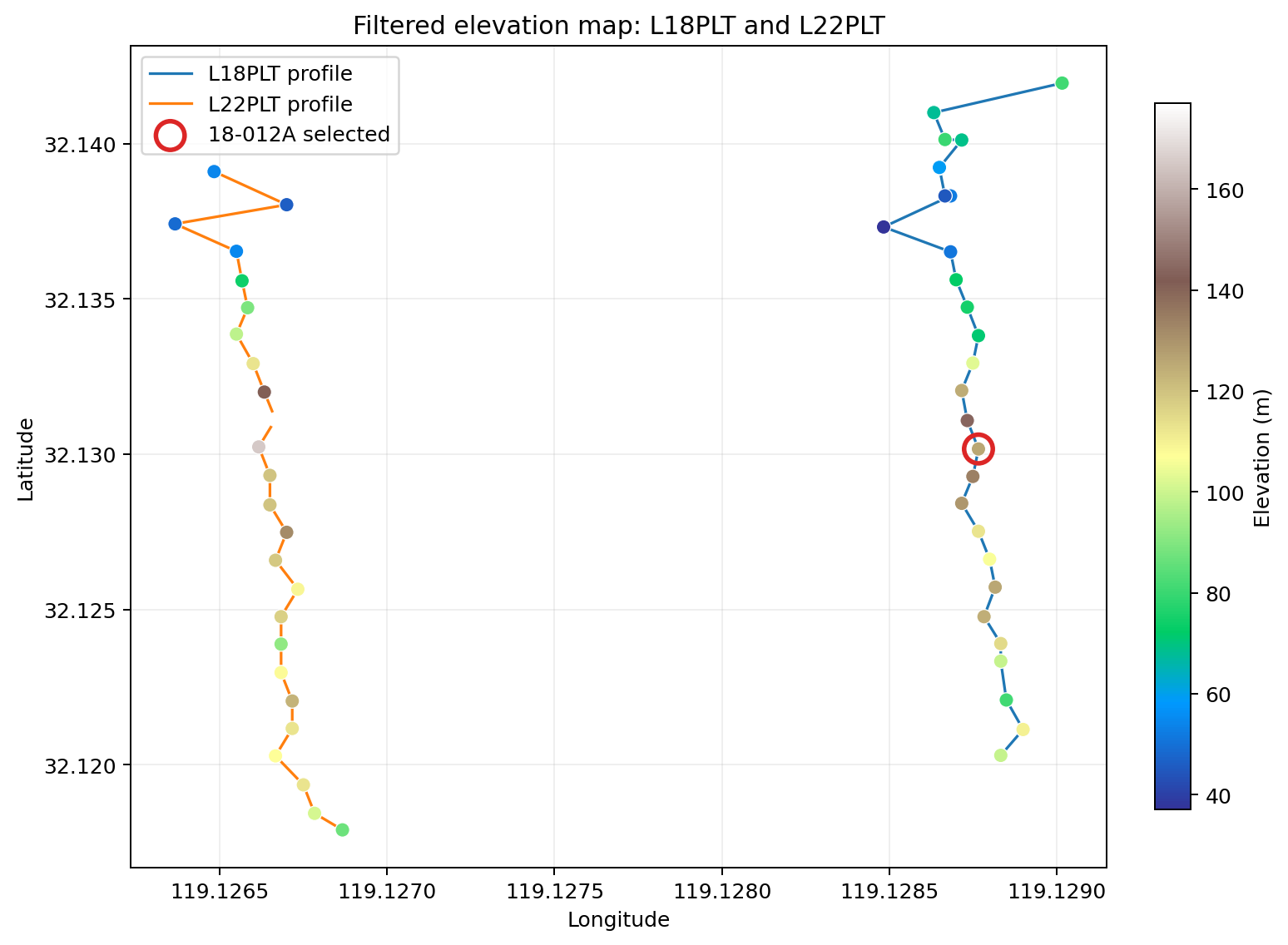

Filtering keeps only L18PLT and L22PLT for display, revealing two roughly north–south profiles separated in longitude. The red ring enlarges the real station 18-012A without creating a new trace or removing any record. Elevation changes along both lines, but the color pattern alone should not be read as a continuous topographic surface between them.

4.2.8. Basemaps

Geographic station maps use public Plotly basemap styles by default. The theme controls the default:

theme="light"

Uses "open-street-map" unless basemap is set.

theme="dark"

Uses "carto-darkmatter" unless basemap is set.

Pass basemap to choose a specific style.

>>> fig = plot_station_map(
...     data,
...     options=StationMapOptions(
...         overlay="index",
...         basemap="carto-positron",
...         bearing=15.0,
...     ),
... )
>>> print(fig.layout.map.style, fig.layout.map.bearing)
carto-positron 15.0

The map package also supports token-free ESRI raster basemaps through the shared basemap helpers. Common style names include "esri-satellite", "esri-topo", and "esri-natgeo".

4.2.9. Density And Contour Layers

For quick spatial trends, enable a density layer:

>>> data = ensure_map_data("data/AMT/WILLY_DATA/L18PLT")
>>> fig = plot_station_map(
...     data,
...     options=StationMapOptions(
...         overlay="rho",
...         frequency=100.0,
...         show_contours=True,
...         contour_opacity=0.45,
...     ),
... )
>>> print(len(fig.data), tuple(trace.type for trace in fig.data))
3 ('densitymap', 'scattermap', 'scattermap')

show_contours adds a density-style Plotly map layer when at least three finite coordinate/value triples are available.

For a filled image layer similar to a Surfer-style contour map, enable contour_image:

>>> fig = plot_station_map(
...     data,
...     options=StationMapOptions(
...         overlay="rho",
...         frequency=100.0,
...         contour_image=True,
...         contour_mode="filled+lines",
...         contour_levels=16,
...         contour_opacity=0.55,
...     ),
... )
>>> len(fig.layout.map.layers)
1

contour_image rasterizes contours to a transparent PNG and inserts it below station markers as a map image layer. It returns no layer when there are fewer than three finite points or when log scaling would leave fewer than three positive values.

For elevation maps, elevation_mode="contours" is the clearer shortcut. It enables the contour layer for Plotly and draws native contourf and contour lines for Matplotlib. The default elevation_mode="markers" preserves the original behavior. Linear interpolation is the default because it remains within the local values supported by the stations; the Matplotlib result is additionally clipped to the observed elevation range after optional smoothing.

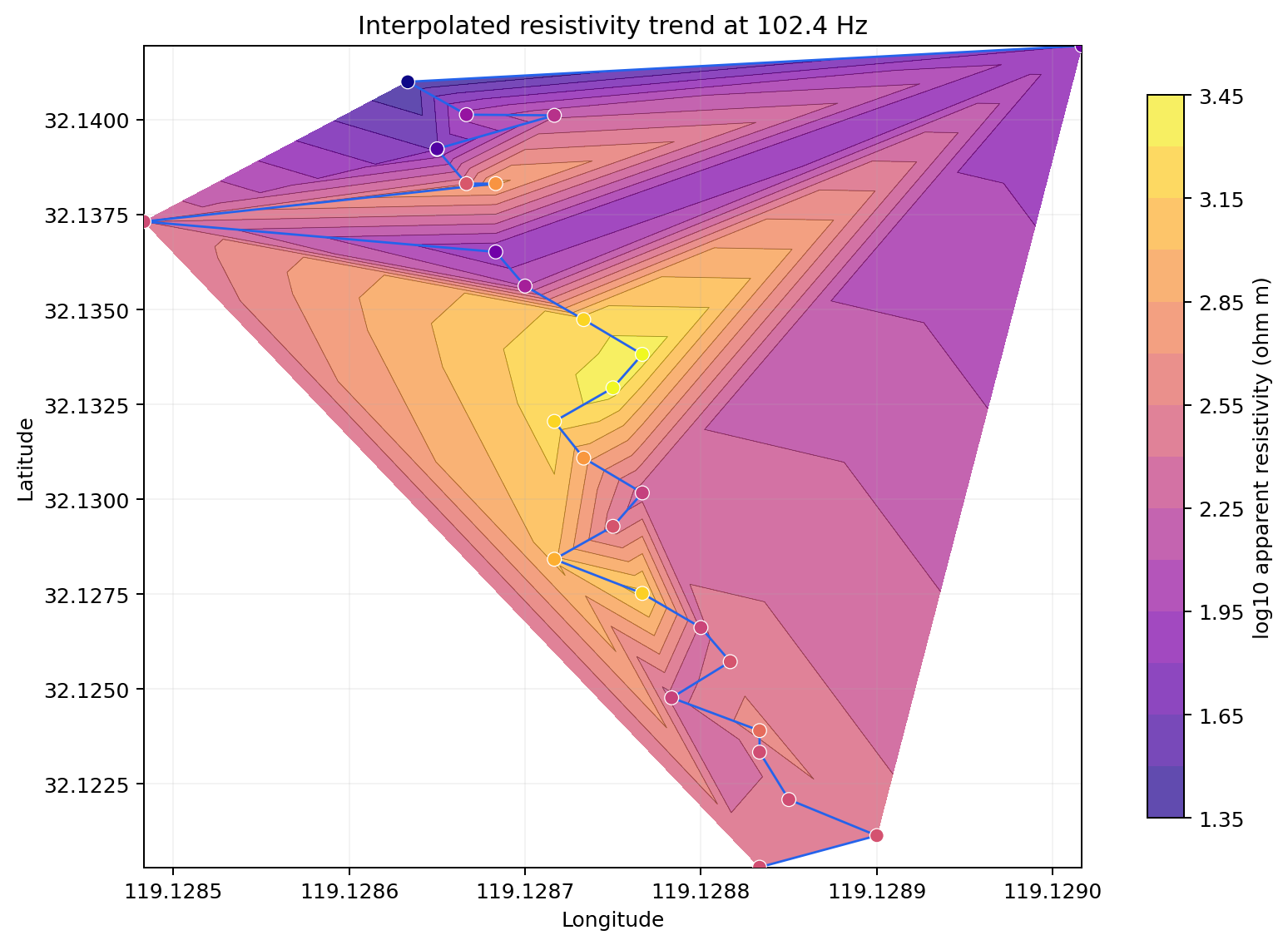

A static rendering of the contour idea: the station \(\log_{10}(\rho_a)\) values are interpolated before the measured markers are drawn over the result. The yellow zones in the central profile follow high measured values, but the broad triangular bands near the northern fold are controlled by sparse geometry. They are interpolation support, not evidence for a triangular subsurface body. Interpret the markers first and the filled surface only as a visual trend between them.

4.2.10. Themes And Color Scales

Station maps share the map theme and color utilities.

>>> options = StationMapOptions(
...     overlay="phase",
...     frequency=100.0,
...     theme="publication",
...     cmap="Turbo",
...     opacity=0.85,
...     title="L18 phase at 100 Hz",
... )
>>> fig = plot_station_map(data, options=options)
>>> print(fig.layout.title.text, fig.data[0].marker.opacity)
L18 phase at 100 Hz 0.85

Use value_range=(min, max) for stable comparisons across multiple maps. This is especially important when exporting a sequence of maps for a report. If two maps use different automatic color limits, the same value can appear as different colors. A fixed range makes the color transform a single function \(c(v)\) across the full sequence, which is the more reproducible choice for reports.

4.2.11. Backends

plotly is the interactive default. matplotlib produces static figures for reports and batch processing.

>>> from pycsamt.map import StationMapOptions, plot_station_map

>>> fig = plot_station_map(
...     "data/AMT/WILLY_DATA/L18PLT",
...     options=StationMapOptions(backend="matplotlib"),
... )
>>> type(fig).__name__
'Figure'

Backend behavior differs slightly:

plotly

Produces interactive geographic maps when coordinates exist, and station-index plots when they do not.

matplotlib

Produces a static Matplotlib figure. It uses longitude/latitude when available and station index/value otherwise.

Unknown backends raise ValueError.

4.2.12. Coordinate Fallback

Station maps do not require coordinates to produce a useful diagnostic view. When the latitude and longitude columns contain usable values, the Plotly backend attempts a geographic map and leaves incomplete rows as gaps. If the coordinate axes are unavailable, it creates a Cartesian station-index plot.

>>> from pycsamt.map import ensure_map_data

>>> data = ensure_map_data("data/AMT/WILLY_DATA/L18PLT")
>>> print("has geo", data.has_geo)
has geo True

>>> if not data.has_geo:
...     print("Using profile fallback because coordinates are incomplete.")

For production geographic maps, validate data.has_geo before plotting when every station must appear at a real location, and fix coordinates through your survey metadata or CRS preprocessing.

4.2.13. Exporting Station Maps

Use the export helpers to save figures consistently:

>>> from pycsamt.map import (
...     StationMapOptions,
...     plot_station_map,
...     save_png,
...     write_html,
... )

>>> plotly_fig = plot_station_map(data)
>>> static_fig = plot_station_map(
...     data, options=StationMapOptions(backend="matplotlib")
... )
>>> print(write_html(plotly_fig, "outputs/stations.html").as_posix())
outputs/stations.html
>>> print(save_png(static_fig, "outputs/stations.png").as_posix())
outputs/stations.png

PNG export calls savefig directly for Matplotlib figures. Exporting a Plotly figure to PNG instead requires a static image backend such as Kaleido; HTML export does not.

4.2.14. Troubleshooting

Empty figure

No stations were loaded, or filtering removed every line. Inspect data.station_ids and data.lines.

Map appears as a station-index plot

No finite geographic coordinates were available. Check data.has_geo and your station metadata.

rho or phase colors are missing

The requested frequency may not exist within frequency_tolerance, or the station may not have a valid Z object. Try removing the tolerance to inspect nearest-frequency behavior.

Contours do not appear

The density and contour-image layers need at least three finite coordinate/value triples. They are skipped silently when there is not enough data.

Colorbars differ between maps

Set the same value_range and log_color options on each map.
