Run a Pipeline From Config#

This tutorial shows how to run a reproducible pyCSAMT processing pipeline from a configuration file. The workflow is designed for survey processing that must be repeated, reviewed, shared, or used as evidence before inversion.

The central idea is:

put the processing chain in a small config file, run that config from Python or the CLI, and let pyCSAMT write the processed EDIs, plots, reports, and a copy of the pipeline that was actually executed.

What You Will Learn#

After this tutorial you should be able to:

  • create a YAML pipeline configuration file

  • understand the name, output_dir, preset, and steps keys

  • load a pipeline with pycsamt.pipeline.Pipeline.from_yaml()

  • inspect the resolved processing chain before running it

  • run the pipeline on an EDI survey

  • control processed EDI, plot, and report outputs

  • debug a pipeline with --dry-run, --n-steps, --from-step, and --until-step

  • read the returned PipelineResult

  • use the equivalent pycsamt pipe CLI commands

Why Use a Config File?#

Interactive notebooks are useful for exploration, but production survey processing needs a stronger record. A config file makes the processing chain explicit:

  • the ordered step list is visible;

  • every parameter override is written down;

  • the same file can be used from Python and the CLI;

  • a colleague can review the workflow before it is run;

  • output reports can point back to the exact pipeline file;

  • the same workflow can be applied to several lines or surveys.

For quick experiments, a preset such as Pipeline.from_preset("basic_qc") is fine. For project work, write the workflow to YAML.

Input Assumptions#

The examples below assume:

  • EDI files are stored in data/AMT/WILLY_DATA/L18PLT;

  • the pipeline config will be stored at config/l18_first_qc.yaml;

  • output will be written to results/l18_first_qc.

The bundled L18PLT line is a flat EDI folder:

data/
  AMT/
    WILLY_DATA/
      L18PLT/
        18-001A.edi
        18-002U.edi
        ...
        18-025A.edi

If your survey has several independent lines, start by running the workflow on one line. After the parameters are stable, apply the same config to the other lines.

Create a Minimal YAML Config#

This is a complete first-pass QC pipeline:

 1name: l18_first_qc
 2output_dir: results/l18_first_qc
 3
 4steps:
 5  - name: notch
 6    code: NR001
 7    params:
 8      mains_hz: 50.0
 9      n_harm: 30
10      tol_hz: 0.08
11
12  - name: drop_duplicates
13    code: FREQ002
14
15  - name: select_band
16    code: FREQ001
17    params:
18      band_hz: [1.0, 10000.0]
19
20  - name: align_grid
21    code: FREQ004
22
23  - name: qc_snapshot
24    code: QC001

Save it as config/l18_first_qc.yaml.

The keys mean:

name

Human-readable label used in summaries and reports.

output_dir

Default output directory when Pipeline.run is called without an explicit outdir.

steps

Ordered processing operations. Each item is converted to a pycsamt.pipeline.Step.

name inside a step

User label for that occurrence of the step. This label appears in output folders and can be used for partial runs.

code

Registry code, such as NR001 or FREQ001. Registry names such as notch_powerline can also be used, but codes are easier to audit.

params

Keyword arguments forwarded to the underlying processing function. Values here override the step defaults.

The configured chain is intentionally short: remove harmonic power-line noise, normalise the frequency rows, keep the survey band used for this first QC pass, align the station grids, and then write a diagnostic snapshot.

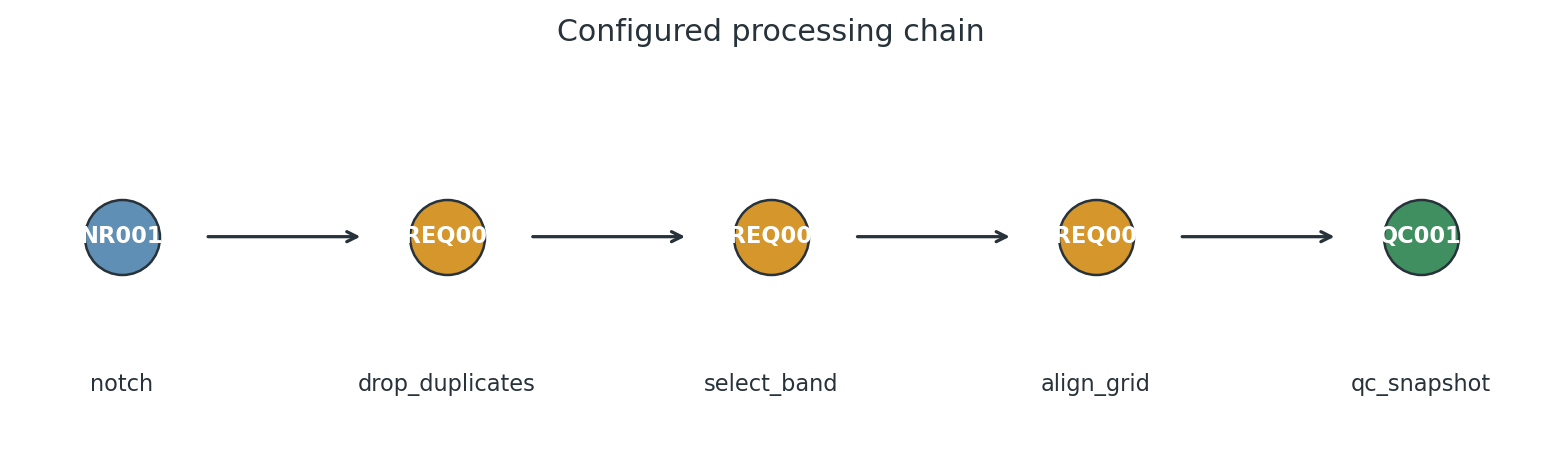

Configured pyCSAMT pipeline chain for the L18PLT tutorial

Five explicit steps are easier to review than a long automatic workflow.#

Load and Inspect the Pipeline#

Load the YAML file with pycsamt.pipeline.Pipeline.from_yaml():

1from pycsamt.pipeline import Pipeline
2
3pipe = Pipeline.from_yaml("config/l18_first_qc.yaml")
4print(pipe)

For a dataframe view of the resolved steps:

1table = pipe.describe()
2print(table[["label", "code", "category", "params"]])

Example output:

             label     code       category                                            params
#
1            notch    NR001  noise_removal  {'mains_hz': 50.0, 'n_harm': 30, 'tol_hz': 0.08}
2  drop_duplicates  FREQ002      frequency                                                {}
3      select_band  FREQ001      frequency                       {'band_hz': [1.0, 10000.0]}
4       align_grid  FREQ004      frequency                                                {}
5      qc_snapshot    QC001             qc                                                {}

Before running a workflow for the first time, inspect the steps and check:

  • the order matches the processing logic;

  • labels are unique and readable;

  • frequency limits match the survey type;

  • power-line settings match the local electrical grid;

  • diagnostic steps such as QC001 appear where you want snapshots.

Read the Survey#

Read the EDI survey through the public API:

 1from pycsamt.api import read_edis
 2
 3survey = read_edis(
 4    "data/AMT/WILLY_DATA/L18PLT",
 5    recursive=False,
 6    strict=False,
 7    progress=False,
 8)
 9
10sites = survey.collection
11print(survey.summary())

The pipeline runs on a site collection. survey.collection is the lower-level object used by the pipeline and by the editing/QC tools.

The bundled line loads as 28 stations:

APIFrame: edi_survey_summary
kind: edi.summary
shape: 28 rows x 6 columns
columns: station, path, n_freq, tipper, spectra, ts
numeric: 1 columns
missing: 0.0%
source: data/AMT/WILLY_DATA/L18PLT

Run the Pipeline#

Run the loaded pipeline:

1result = pipe.run(sites)
2print(result.summary())

Because the config defines output_dir, this writes to results/l18_first_qc. To override the output directory from Python:

1result = pipe.run(
2    sites,
3    outdir="results/l18_first_qc_trial_02",
4)

To run fully in memory with no filesystem output:

1result = pipe.run(
2    sites,
3    outdir=None,
4    save_plots=False,
5    save_edis=False,
6    save_report=False,
7)

Inspect the Result#

Pipeline.run returns a PipelineResult:

1print(result.ok)
2print(result.n_errors)
3print(result.outdir)
4print(result.processed_paths[:3])
5print(result.plots[:3])
6
7processed_sites = result.sites_out

Each step also has a StepResult:

1for step_result in result.step_results:
2    print(step_result.summary_line())
3
4failed = [sr for sr in result.step_results if not sr.ok]
5for sr in failed:
6    print(sr.step_name, sr.step_code, sr.error)

By default, the pipeline continues after step errors according to the pipeline runtime configuration. For strict production runs, configure the error policy or use the CLI --on-error raise option.

For the bundled L18PLT line, the full run completes with all five steps OK:

PipelineResult  'l18_first_qc'
  Sites   : 28 in -> 28 out
  Steps   : 5 (5 ok, 0 err)
  Time    : 6.72 s
  Plots   : 9
  Output  : results/l18_first_qc

[ 1] notch                [NR001]  OK  1.97s  sites 28->28  plots=2
[ 2] drop_duplicates      [FREQ002]  OK  0.25s  sites 28->28  plots=1
[ 3] select_band          [FREQ001]  OK  2.16s  sites 28->28  plots=2
[ 4] align_grid           [FREQ004]  OK  0.41s  sites 28->28  plots=1
[ 5] qc_snapshot          [QC001]  OK  1.93s  sites 28->28  plots=3

Timings vary by machine, but the station count, step status, and artifact counts are the values to check first.

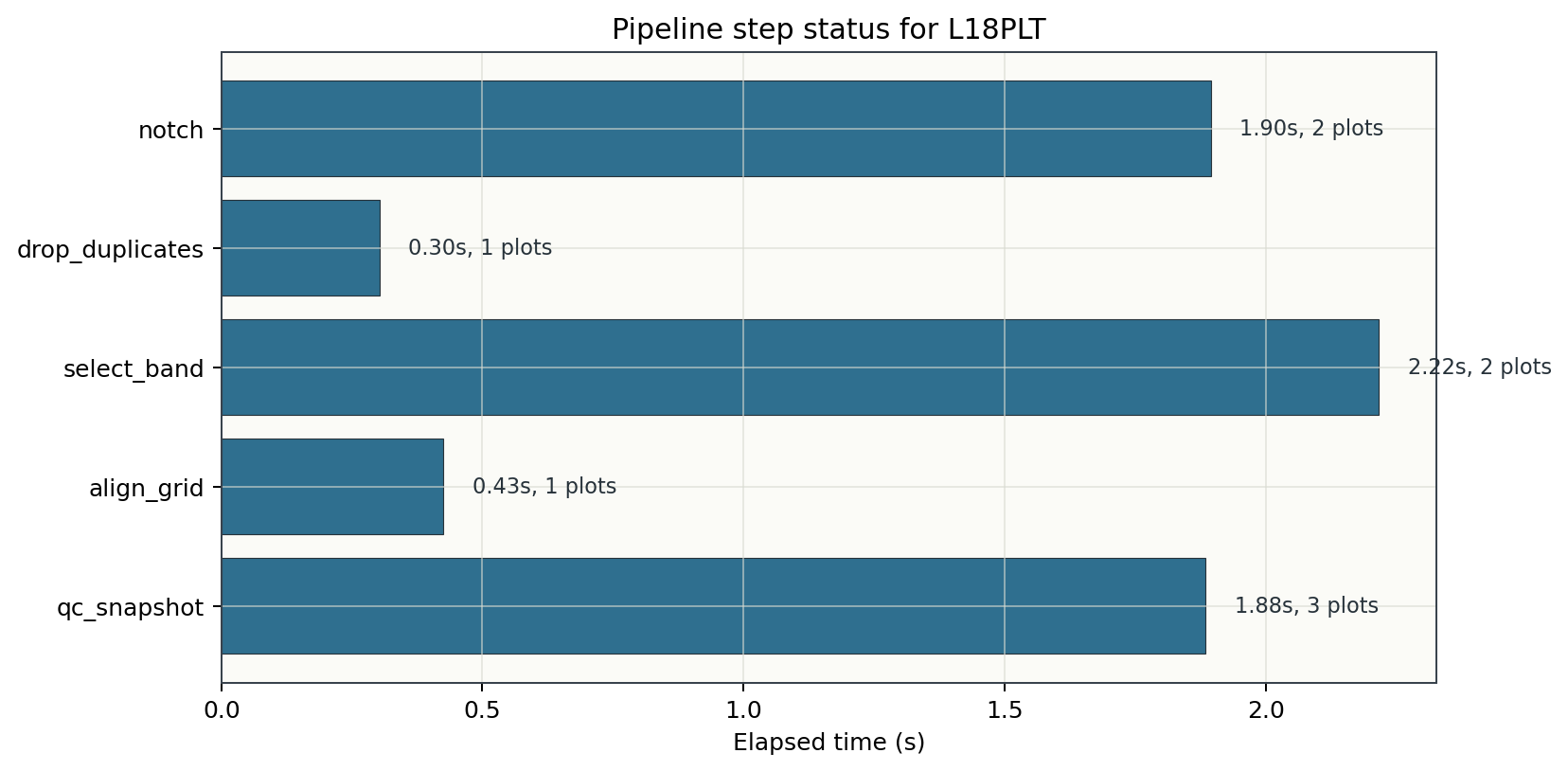

Pipeline step status and plot counts for the L18PLT config run

Understand the Output Folder#

A normal run writes a directory like this:

results/l18_first_qc/
  pipeline.yaml
  plots/
    01_notch/
    02_drop_duplicates/
    03_select_band/
    04_align_grid/
    05_qc_snapshot/
  processed/
    18-001A.edi
    18-002U.edi
    ...
  report.html
  summary.txt

The important files are:

processed/

Final processed EDI files written after the last step.

plots/

Per-step QC figures generated by the step registry.

pipeline.yaml

Canonical copy of the pipeline that was run. Keep this with the output.

summary.txt

Text run report for quick inspection.

report.html

HTML run report for project records and review.

The output tree is intentionally stable so that scripts, reports, and later inversion preparation can point to predictable paths.

The example run writes 28 processed EDI files, 9 QC figures, 2 reports, and 1 saved copy of the pipeline config:

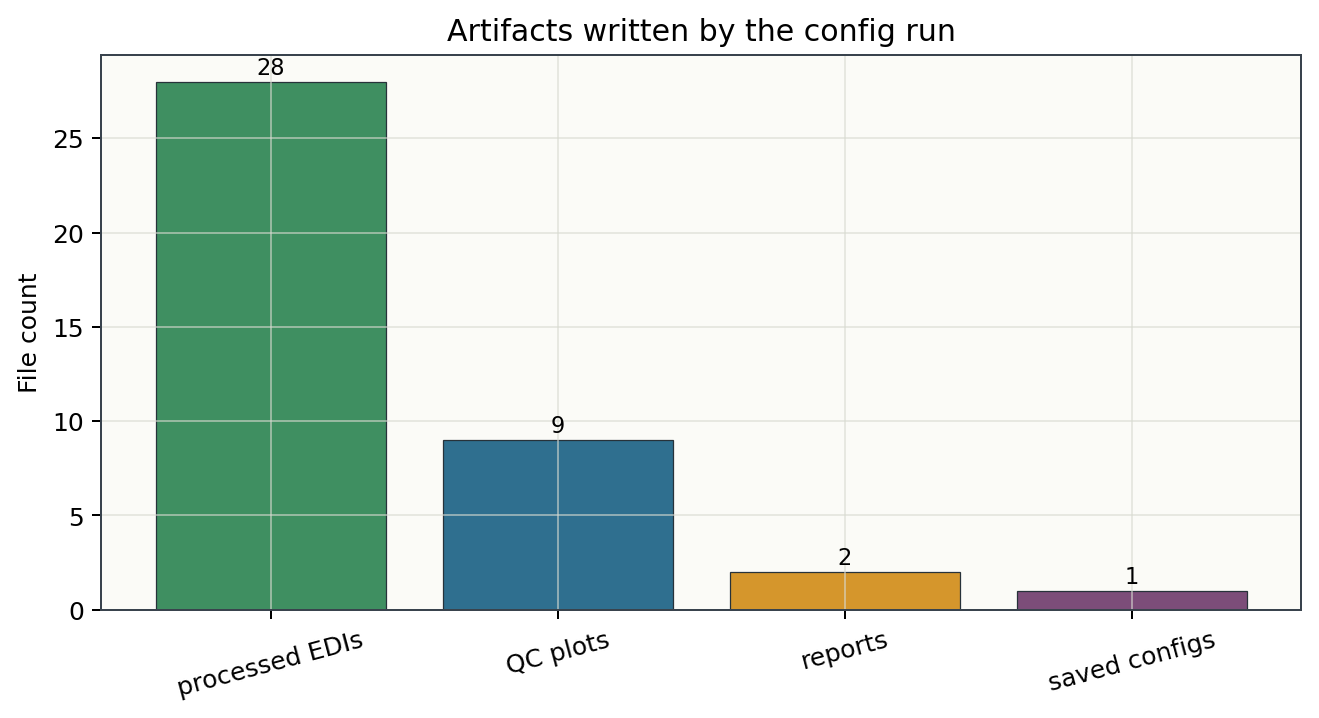

Artifact counts written by the L18PLT pipeline config run

Generate a Starter Config#

The CLI can scaffold a valid config:

1pycsamt pipe init \
2    --preset basic_qc \
3    --name l18_first_qc \
4    --outdir results/l18_first_qc \
5    --output config/l18_first_qc.yaml

Print a scaffold without writing it:

1pycsamt pipe init --preset full_processing --print

Generate JSON or Python config files when needed:

1pycsamt pipe init --format json --preset basic_qc -o config/l18_first_qc.json
2pycsamt pipe init --format py --preset basic_qc -o config/l18_first_qc.py

YAML is recommended for most survey projects. Python configs are useful for trusted internal workflows that need constants or small local logic.

Seed a Config From a Preset#

You can combine a preset with explicit steps. Preset steps run first, and the steps listed in the file are appended afterward:

1name: publication_with_extra_qc
2output_dir: results/publication_with_extra_qc
3preset: publication_ready
4
5steps:
6  - name: final_qc
7    code: QC001

This is useful when a built-in preset is almost correct but you want one or two additional operations. If you need to remove or reorder many preset steps, copy the preset into an explicit steps list instead. Explicit files are easier to review.

Discover Steps and Presets#

From Python:

1from pycsamt.pipeline import Pipeline, list_steps, preset_catalogue
2
3print(preset_catalogue())
4
5for spec in list_steps("frequency"):
6    print(spec.code, spec.name, spec.defaults)
7
8print(Pipeline.step_info("NR001"))

From the CLI:

1pycsamt pipe presets
2pycsamt pipe steps
3pycsamt pipe steps --category frequency
4pycsamt pipe show --preset publication_ready

Use discovery before editing a config so you know the registered code, default parameters, and category for each operation.

Run From the CLI#

Run the same YAML file from the command line:

1pycsamt pipe run \
2    --config config/l18_first_qc.yaml \
3    --survey data/AMT/WILLY_DATA/L18PLT \
4    --out results/l18_first_qc

The positional source form is also accepted:

1pycsamt pipe run data/AMT/WILLY_DATA/L18PLT --config config/l18_first_qc.yaml --out results/l18_first_qc

Use verbose mode to show progress:

1pycsamt pipe run \
2    --config config/l18_first_qc.yaml \
3    --survey data/AMT/WILLY_DATA/L18PLT \
4    --out results/l18_first_qc \
5    -v

Useful output controls:

1pycsamt pipe run --config config/l18_first_qc.yaml --survey data/AMT/WILLY_DATA/L18PLT --no-plots
2pycsamt pipe run --config config/l18_first_qc.yaml --survey data/AMT/WILLY_DATA/L18PLT --no-edi
3pycsamt pipe run --config config/l18_first_qc.yaml --survey data/AMT/WILLY_DATA/L18PLT --no-report
4pycsamt pipe run --config config/l18_first_qc.yaml --survey data/AMT/WILLY_DATA/L18PLT --plot-fmt pdf --dpi 300

Use machine-readable output for automation:

1pycsamt pipe run \
2    --config config/l18_first_qc.yaml \
3    --survey data/AMT/WILLY_DATA/L18PLT \
4    --format json

Debug Before Running#

Always dry-run a new config:

1pycsamt pipe run \
2    --config config/l18_first_qc.yaml \
3    --survey data/AMT/WILLY_DATA/L18PLT \
4    --dry-run

Preview the pipeline table:

1pycsamt pipe show config/l18_first_qc.yaml
2pycsamt pipe show config/l18_first_qc.yaml --format json

Run only the first steps:

1pycsamt pipe run \
2    --config config/l18_first_qc.yaml \
3    --survey data/AMT/WILLY_DATA/L18PLT \
4    --n-steps 2 \
5    --out results/debug_first_two

Start or stop at a named step:

 1pycsamt pipe run \
 2    --config config/l18_first_qc.yaml \
 3    --survey data/AMT/WILLY_DATA/L18PLT \
 4    --from-step select_band \
 5    --out results/debug_from_band
 6
 7pycsamt pipe run \
 8    --config config/l18_first_qc.yaml \
 9    --survey data/AMT/WILLY_DATA/L18PLT \
10    --until-step align_grid \
11    --out results/debug_until_align

The slicing options accept the user step label, the registry code, or the registry name. For example, select_band, FREQ001, and the internal step name can all identify the same operation when present in the pipeline.

Error Policy#

During exploratory work, it is often useful to continue after a step fails so you can see how much of the pipeline still works. During production work, fail fast.

CLI options:

1pycsamt pipe run --config config/l18_first_qc.yaml --survey data/AMT/WILLY_DATA/L18PLT --on-error warn
2pycsamt pipe run --config config/l18_first_qc.yaml --survey data/AMT/WILLY_DATA/L18PLT --on-error skip
3pycsamt pipe run --config config/l18_first_qc.yaml --survey data/AMT/WILLY_DATA/L18PLT --on-error raise

Python configuration:

1from pycsamt.pipeline import configure_pipe
2
3configure_pipe(on_step_error="raise")
4result = pipe.run(sites, outdir="results/strict_run")

Use raise for final processing before inversion or publication output.

Adapting the Example to AMT and CSAMT#

The most common parameter to adjust is the frequency band. For AMT surveys, a typical first-pass band may be:

1- name: select_amt_band
2  code: FREQ001
3  params:
4    band_hz: [10.0, 100000.0]

For broadband MT, a wider low-frequency range may be appropriate:

1- name: select_mt_band
2  code: FREQ001
3  params:
4    band_hz: [0.001, 10000.0]

For controlled-source surveys, keep only the frequency range supported by the transmitter, receiver, and processing export. Avoid carrying empty or unstable frequency rows into inversion preparation just because they exist in the file.

Common Workflow Pattern#

A robust project workflow usually looks like this:

  1. Read the survey and build a station inventory.

  2. Run a small config with notch, drop_duplicates, select_band, and qc_snapshot.

  3. Inspect the generated plots and summary.txt.

  4. Tighten the frequency band or noise parameters.

  5. Add static-shift, tensor, skew, or dimensionality steps only after the first QC pass is understood.

  6. Save the final config next to the processed output.

  7. Use the processed EDI folder for inversion preparation.

This keeps the processing chain explainable. A short, reviewed config is often better than a long automatic workflow that nobody can defend.

Troubleshooting#

The config loads but has no steps

Check that the top-level steps key is a list. If you used only preset, verify the preset name with pycsamt pipe presets.

The CLI says the pipeline cannot be loaded

Confirm the file suffix is .yaml, .yml, .json, or .py. YAML loading also requires PyYAML.

The run reports zero sites

Check the --survey path or positional EDI path. If EDIs are inside nested line folders, verify that the survey resolver can find them, or load one line directory explicitly first.

The output directory is not the one expected

--out and Pipeline.run(outdir=...) override output_dir in the config. When no explicit output is given, the config value is used, then the global pipeline default.

Processed EDI files are missing

Check whether --no-edi or save_edis=False was used. Also review warnings from pycsamt.site.export.write_sites if the site objects cannot be exported.

Plots are missing

Some steps do not define QC plot functions, and plot generation can be disabled with --no-plots or save_plots=False. Plot failures should not stop a successful processing run.

A step fails but the pipeline continues

This is controlled by the error policy. Use --on-error raise or configure_pipe(on_step_error="raise") for strict runs.

Next Steps#

See Also#

Pipeline Configuration Files

Full configuration-file schema.

Pipeline Steps

Registered pipeline steps and categories.

Pipeline Outputs

Output directory structure and reports.

Pipeline Commands

Pipeline CLI reference.

pycsamt.pipeline

Pipeline API reference.
