Site Selection#

The selection helpers choose which stations remain in a survey before editing, diagnostics, export, modelling, or inversion preparation. They are small, stable filters: each helper accepts a site-like input, walks through the EDI-like items in their existing order, and returns a new pycsamt.site.base.Sites container with the retained stations.

Use this page when you need to:

keep stations by name, index, chainage, frequency coverage, or location;
remove empty or unusable stations before expensive processing;
apply a quick quality gate based on finite impedance or phase error;
combine several simple selectors into a reproducible preparation workflow;
decide when to use functional selectors versus pycsamt.site.base.Sites.select().

Selector Map#

Function	Keeps stations when	Typical use
`by_names()`	The station name matches one or more patterns.	Keep a named line, block, or manually reviewed station list.
`by_index()`	The station position appears in an index list.	Keep the first, last, or manually inspected positions.
`by_chainage()`	Stored chainage lies inside a closed interval.	Trim a profile to a modelled distance window.
`by_freq()`	At least one finite frequency lies inside a closed interval.	Keep stations that cover a target period or frequency band.
`by_bbox()`	Latitude and longitude fall inside a geographic bounding box.	Keep stations inside a field area or map tile.
`by_predicate()`	A custom Python function returns `True`.	Express project-specific filters.
`keep_finite_z()`	Impedance or resistivity arrays contain finite values.	Drop invalid placeholders before diagnostics or inversion.
`mask_large_phase_err()`	The maximum finite phase error is below a threshold.	Remove stations with very uncertain phase products.
`drop_empty()`	Frequency and impedance-like data are structurally present.	Drop stations with no usable data arrays.

Selection Contract#

All functional selectors follow the same broad contract.

from pycsamt.seg.collection import EDICollection
from pycsamt.site.selection import by_names, keep_finite_z

collection = EDICollection.from_sources("data/edi")

selected = by_names(collection, "L01_*")
selected = keep_finite_z(selected)

print(type(selected).__name__)
print([site.name for site in selected])

The important guarantees are:

input can be a pycsamt.site.base.Sites, an EDI collection, a list of EDI files, or any iterable accepted by the site iterator;
output is a new pycsamt.site.base.Sites wrapper;
relative order of retained stations follows the input order;
duplicate index requests are collapsed because selection is membership based;
the original container is not modified by the selection itself.

Selectors keep the raw EDI objects inside the returned Sites wrapper. This means later edits can still act on the original EDI structures if an editing function is called with inplace=True.

Name Selection#

by_names() keeps stations whose resolved station name matches one or more patterns. Station names are resolved through pycsamt.site.utils.station_name(), so names are taken from the same header/object fields used by the rest of the site tools.

Supported pattern types are:

str: Literal names, glob-like patterns such as "S*" and "A??", and regex-looking strings.
re.Pattern: A compiled regular expression. Use this when you need strict regular expression control.
callable: A function receiving the station name and returning True or False.
list or tuple: Any mix of the above. A station is kept if any pattern matches.

import re

from pycsamt.seg.collection import EDICollection
from pycsamt.site.selection import by_names

sites = EDICollection.from_sources("data/edi")

line_a = by_names(sites, "A*")
stations_01_to_05 = by_names(sites, re.compile(r"^S0[1-5]$"))
reviewed = by_names(sites, ["S01", "S05", "S09"])
ending_with_a = by_names(sites, lambda name: name.endswith("A"))

String matching uses the shared pyCSAMT name matcher, which is designed for case-insensitive station matching. For strict case-sensitive regex behavior, pass a compiled regular expression with the flags you want.

Index Selection#

by_index() keeps stations by zero-based position. Negative indices follow normal Python sequence rules, so -1 means the last station and -2 means the station before it.

from pycsamt.seg.collection import EDICollection
from pycsamt.site.selection import by_index

sites = EDICollection.from_sources("data/edi")

first_and_last = by_index(sites, [0, -1])
second = by_index(sites, 1)

print([site.name for site in first_and_last])
print([site.name for site in second])

Invalid indices are ignored. If all requested indices are invalid, the result is an empty Sites container.

The output order follows the original survey order, not the order of the indices argument:

subset = by_index(sites, [-1, 0])

# The first station still appears before the last station in the result.
print([site.name for site in subset])

Chainage Selection#

by_chainage() keeps stations whose chainage lies in a closed interval \(s_{min} \le s \le s_{max}\). The selector first looks for HEAD.chainage and then falls back to edi.chainage.

from pycsamt.seg.collection import EDICollection
from pycsamt.site.selection import by_chainage

sites = EDICollection.from_sources("data/edi")

model_window = by_chainage(
    sites,
    smin=1_000.0,
    smax=8_000.0,
)

print([site.name for site in model_window])

Stations without numeric chainage are skipped. This is useful after a profile has already been computed and chainage values have been written onto the EDI headers or attached to the EDI objects.

If you have coordinates but no stored chainage yet, build a profile first.

from pycsamt.site.profile import Profile
from pycsamt.site.selection import by_chainage

profile = Profile.from_sites(sites)

for ed in sites:
    # Store chainage on the raw EDI object for later selectors.
    station = getattr(ed, "station", "")
    ed.chainage = profile.chainages.get(station)

middle = by_chainage(sites, 2_000.0, 5_000.0)

Frequency Coverage Selection#

by_freq() keeps a station if at least one finite frequency value lies inside a closed interval.

\[f_{min} \le f_i \le f_{max}\]

This is a station-level filter. It does not remove frequency rows from each station.

from pycsamt.seg.collection import EDICollection
from pycsamt.site.selection import by_freq

sites = EDICollection.from_sources("data/edi")

broadband = by_freq(sites, fmin=0.1, fmax=1_000.0)
low_frequency = by_freq(sites, fmin=0.1, fmax=10.0)

print(len(broadband), len(low_frequency))

To actually subset the rows of frequency-indexed arrays, use pycsamt.site.edit.select_freq() for one site or pycsamt.site.edit.select_freq_all() for a collection.

from pycsamt.site.edit import select_freq_all
from pycsamt.site.selection import by_freq

sites = by_freq(sites, fmin=0.1, fmax=100.0)
sliced = select_freq_all(
    sites,
    fmin=0.1,
    fmax=100.0,
    inplace=False,
)

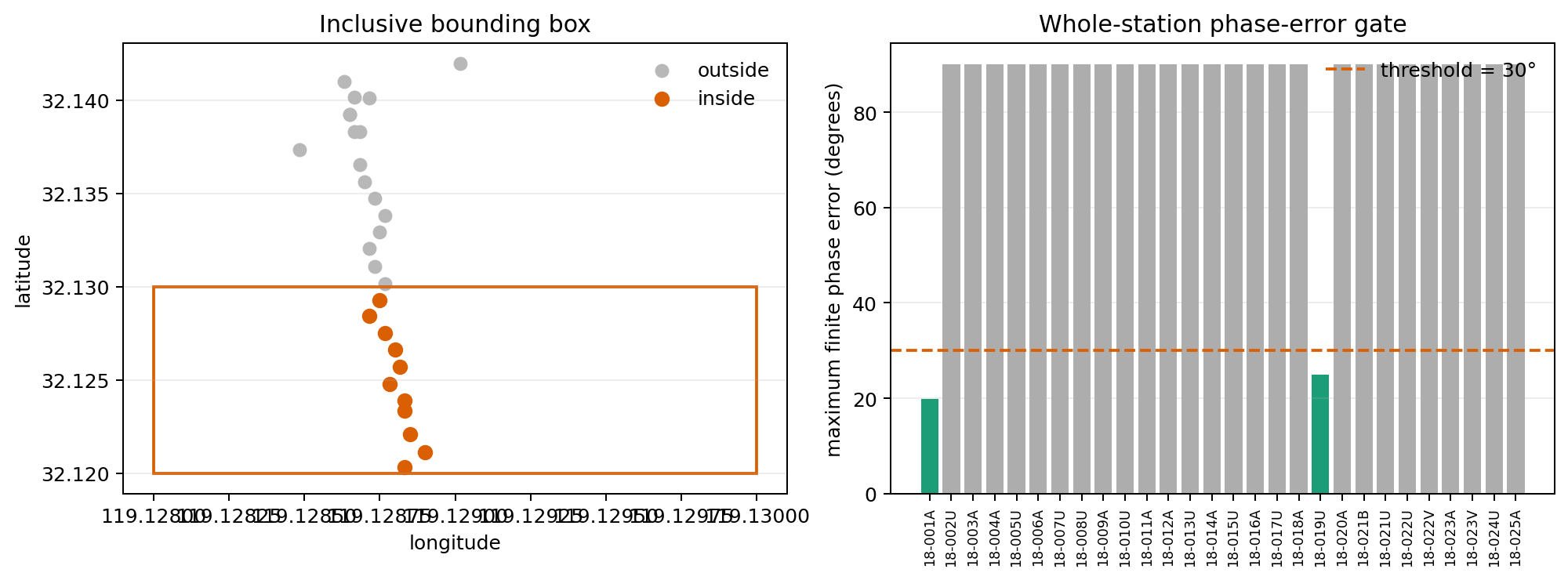

Bounding Box Selection#

by_bbox() keeps stations inside an inclusive latitude/longitude box.

\[minlat \le lat \le maxlat\]

\[minlon \le lon \le maxlon\]

from pycsamt.seg.collection import EDICollection
from pycsamt.site.selection import by_bbox

sites = EDICollection.from_sources("data/edi")

field_area = by_bbox(
    sites,
    minlat=34.5,
    minlon=12.0,
    maxlat=35.5,
    maxlon=13.0,
)

Coordinates are read through pycsamt.site.utils.get_coords(). Stations with missing or non-finite coordinates are skipped.

This selector is intentionally simple: it performs an axis-aligned test in latitude and longitude degrees. It does not project coordinates and it does not handle antimeridian wrapping. For projected distance or profile filters, use the profile and location tools described in Location And Profiles.

Custom Predicate Selection#

by_predicate() keeps stations for which a user-provided function returns True. The predicate receives the raw EDI-like object, not a pycsamt.site.base.Site wrapper.

from pycsamt.site.base import Site
from pycsamt.site.selection import by_predicate

stations_with_tipper = by_predicate(
    sites,
    lambda ed: Site(ed).has_component("tipper"),
)

enough_frequencies = by_predicate(
    sites,
    lambda ed: len(Site(ed).freq) >= 8,
)

Predicate exceptions are caught and treated as False. This keeps survey filters robust when one station has an unusual structure.

Use by_predicate for project logic that is too specific for the standard selectors:

from pycsamt.site.utils import station_name

def keep_production_station(ed):
    name = station_name(ed)
    return (
        name.startswith("P")
        and not name.endswith("_TEST")
    )

production = by_predicate(sites, keep_production_station)

Finite Impedance Selection#

keep_finite_z() keeps stations that contain at least one finite impedance value. If impedance values are unavailable, it falls back to common resistivity array names such as _resistivity, resistivity, or rho.

from pycsamt.seg.collection import EDICollection
from pycsamt.site.selection import keep_finite_z

sites = EDICollection.from_sources("data/edi")
valid = keep_finite_z(sites)

print(f"{len(valid)} stations contain finite impedance data")

This is the selector to run before diagnostics that require real impedance content. It does not inspect phase errors, frequency coverage, or coordinate quality.

Phase Error Selection#

mask_large_phase_err() filters whole stations using their maximum finite phase-error value. Despite the function name, the current implementation does not mask individual data rows. A station is kept when:

no phase-error array is found;
the phase-error array is empty or entirely non-finite;
the maximum finite phase error is less than or equal to thresh.

from pycsamt.site.selection import mask_large_phase_err

conservative = mask_large_phase_err(sites, thresh=10.0)

print([site.name for site in conservative])

Common phase-error attributes are checked on the Z container, including _phase_err and phase_err.

Because stations without stored phase-error arrays are kept, this selector is best used as a quality gate after a processing step that actually produced phase-error products. If absence of error estimates should be considered a failure in your workflow, combine this selector with a stricter predicate.

import numpy as np

from pycsamt.site.selection import by_predicate, mask_large_phase_err

def has_phase_error(ed):
    z = getattr(ed, "Z", None)
    arr = getattr(z, "_phase_err", None) if z is not None else None
    return arr is not None and np.asarray(arr).size > 0

with_errors = by_predicate(sites, has_phase_error)
clean = mask_large_phase_err(with_errors, thresh=10.0)

Empty Site Selection#

drop_empty() removes stations that are structurally empty. A station is considered empty when:

the frequency vector is missing or has zero length;
the Z container is missing;
the Z container has no impedance array and no resistivity surrogate;
available arrays are empty, entirely non-finite, or only huge sentinel values.

from pycsamt.site.selection import drop_empty, keep_finite_z

non_empty = drop_empty(sites)
finite = keep_finite_z(non_empty)

This is usually the first cleanup selector in a workflow, because it removes stations that cannot participate in most downstream computations.

Functional Selectors Versus Sites.select#

The pycsamt.site.base.Sites container also exposes a compact pycsamt.site.base.Sites.select() method. Use it for simple name lists or wrapper-based predicates.

from pycsamt.site.base import Sites

sites = Sites.from_any("data/edi")

reviewed = sites.select(names=["S01", "S03"])
with_zxy = sites.select(
    predicate=lambda site: site.has_component("Zxy")
)

Use the functions in pycsamt.site.selection when you need richer matching rules, index handling, chainage filtering, frequency coverage, coordinate boxes, or data-quality filters.

Combining Selectors#

Selectors compose naturally because each one returns a Sites object. Order the pipeline from cheap structural filters to more specific project filters.

from pycsamt.seg.collection import EDICollection
from pycsamt.site.edit import select_freq_all
from pycsamt.site.selection import (
    by_bbox,
    by_freq,
    by_names,
    drop_empty,
    keep_finite_z,
    mask_large_phase_err,
)

sites = EDICollection.from_sources("data/edi")

sites = drop_empty(sites)
sites = keep_finite_z(sites)
sites = by_names(sites, ["L01_*", "L02_*"])
sites = by_bbox(
    sites,
    minlat=34.5,
    minlon=12.0,
    maxlat=35.5,
    maxlon=13.0,
)
sites = by_freq(sites, fmin=0.1, fmax=100.0)
sites = mask_large_phase_err(sites, thresh=10.0)

# Now modify the frequency rows, after selecting stations that overlap
# the requested band.
prepared = select_freq_all(
    sites,
    fmin=0.1,
    fmax=100.0,
    inplace=False,
)

This pattern separates station selection from data editing. The selectors decide which stations remain; editing functions decide how station contents change.

Selection Before Inversion#

Before preparing files for Occam2D, ModEM, or MARE2DEM, a selection workflow should normally answer four questions:

Does every retained station contain usable impedance data?
Does every retained station overlap the target frequency band?
Are the retained stations inside the intended profile or map area?
Are station errors acceptable for the planned inversion weighting?

For a 2-D profile workflow, combine selectors with the profile tools:

from pycsamt.site.profile import Profile
from pycsamt.site.selection import (
    by_chainage,
    by_freq,
    drop_empty,
    keep_finite_z,
)

sites = drop_empty(sites)
sites = keep_finite_z(sites)
sites = by_freq(sites, 0.1, 100.0)

profile = Profile.from_sites(sites)

for ed in sites:
    name = getattr(ed, "station", "")
    ed.chainage = profile.chainages.get(name)

model_sites = by_chainage(sites, 500.0, 9_500.0)
ordered = profile.sort_sites(model_sites)

For a 3-D or map-based workflow, prefer geographic selection and then export or modelling preparation:

from pycsamt.site.selection import by_bbox, by_freq, keep_finite_z

cube_sites = keep_finite_z(sites)
cube_sites = by_bbox(cube_sites, 34.5, 12.0, 35.5, 13.0)
cube_sites = by_freq(cube_sites, 0.01, 1_000.0)

Common Mistakes#

Using by_freq() as if it sliced rows: by_freq() keeps or drops stations. Use pycsamt.site.edit.select_freq_all() to change frequency rows.
Expecting mask_large_phase_err() to mask cells: The current function filters whole stations. Use editing tools or a custom predicate when you need row-level masking.
Running by_chainage() before chainage exists: Chainage must already be stored on HEAD.chainage or edi.chainage. Build a profile first when you only have coordinates.
Assuming by_bbox() projects coordinates: It works directly in latitude/longitude degrees. Use projection helpers from Location And Profiles for projected distances.
Using strict name case expectations with string patterns: String matching is intentionally tolerant. Use compiled regular expressions when strict case behavior matters.
