13.9. Site Utilities#

The site utility module contains the shared helper functions used by the station containers, selectors, editors, profile tools, exporters, and reports. Most users will interact with these helpers indirectly through higher-level APIs. They are still useful when you need a small, explicit operation in a script: identify EDI-like objects, coerce paths into an EDICollection, read station identity and coordinates, select frequency indices, or match station names.

Use this page when you need to:

normalize mixed inputs before passing them to site tools;
iterate safely over EDI-like objects;
read station names and coordinates in low-level adapter code;
implement copy-aware helper functions with an inplace flag;
build frequency grid index selections for editing;
match station names with literals, wildcards, regular expressions, or callables;
convert azimuths and angle units.

The examples below use a small synthetic EDI-like class. It exposes the same get_section("head") and Z.freq attributes that the utilities inspect, so the printed output is reproducible without local EDI files.

>>> import copy
>>> import numpy as np
>>>
>>> class Head:
...     def __init__(self, name="S01", lat=np.nan, lon=np.nan, elev=np.nan):
...         self.dataid = name
...         self.station = name
...         self.lat = lat
...         self.long = lon
...         self.lon = lon
...         self.elev = elev
...
>>> class ZBlock:
...     def __init__(self, freq):
...         self.freq = np.asarray(freq, float)
...         self.z = np.zeros((len(freq), 2, 2), dtype=complex)
...
>>> class DemoEDI:
...     def __init__(
...         self,
...         name="S01",
...         freq=(1000.0, 100.0, 10.0, 1.0),
...         lat=np.nan,
...         lon=np.nan,
...         elev=np.nan,
...     ):
...         self.name = name
...         self.station = name
...         self.Head = Head(name, lat, lon, elev)
...         self.Z = ZBlock(freq)
...
...     def get_section(self, key):
...         if str(key).lower() == "head":
...             return self.Head
...         return None
...
...     def set_section(self, key, value):
...         if str(key).lower() == "head":
...             self.Head = value
...
...     def __copy__(self):
...         new = type(self).__new__(type(self))
...         new.__dict__ = copy.deepcopy(self.__dict__)
...         return new
...

13.9.1. Utility Map#

Group	Helpers	Main purpose
Input detection	`is_pathlike()`, `is_edi_file()`, `is_edi_collection()`	Decide whether an object is a path, one EDI-like file, or a collection of EDI-like files.
Iteration and coercion	`iter_edifiles()`, `as_edicollection()`	Walk safely over EDI-like objects or build an `EDICollection`.
Station metadata	`station_name()`, `set_station_name()`, `get_coords()`, `set_coords()`	Implement low-level access to station identifiers and `HEAD` coordinates. Use Site Metadata for survey-level changes.
Copy and mutation	`maybe_copy()`, `apply_inplace()`	Centralize safe copy-versus-in-place behavior.
Frequency helpers	`get_freq()`, `freq_match()`, `freq_select()`	Read frequency vectors and turn frequency rules into integer indices.
Name matching	`match_name()`, `select_by_name()`	Match station names with literals, wildcards, regex, or callables.
Angle helpers	`wrap_azimuth()`, `deg_to_mrad()`, `mrad_to_deg()`	Normalize azimuths and convert degrees/milliradians.

13.9.2. Input Detection#

The detection helpers are intentionally duck-typed. They are designed to work with pyCSAMT EDI classes and compatible EDI-like test or adapter objects.

>>> from pathlib import Path
>>> from pycsamt.site.utils import (
...     is_edi_collection,
...     is_edi_file,
...     is_pathlike,
... )
>>> path = Path("data/edi/S01.edi")
>>> edi = DemoEDI("A01")
>>> print(is_pathlike(path))
True
>>> print(is_edi_file(edi))
True
>>> print(is_edi_collection([edi]))
True

Detection rules:

is_pathlike() returns True for str and pathlib.Path inputs;
is_edi_file() returns True for objects exposing both get_section and Z;
is_edi_collection() returns True for an EDICollection or an iterable whose first item looks like an EDI file;
path-like strings are not treated as EDI iterables, even though strings are technically iterable in Python.

These helpers are conservative. They are best used to route input handling, not as scientific validation.

13.9.3. Safe EDI Iteration#

iter_edifiles() yields only EDI-like objects. Non-EDI elements are skipped, and path-like inputs yield nothing.

>>> from pycsamt.site.utils import iter_edifiles, station_name
>>> edi_a = DemoEDI("A01")
>>> edi_b = DemoEDI("B02")
>>> mixed = [edi_a, object(), edi_b]
>>> for ed in iter_edifiles(mixed):
...     print(station_name(ed))
A01
B02

A single EDI-like object is yielded once:

>>> items = list(iter_edifiles(edi_a))
>>> print(len(items))
1

Use this helper when writing functions that should accept either one station or many stations.

13.9.4. Coercing To EDICollection#

as_edicollection() turns heterogeneous inputs into an EDICollection when possible.

>>> from pycsamt.site.utils import as_edicollection
>>> from_list = as_edicollection([edi_a, edi_b])
>>> empty = as_edicollection([])
>>> print(from_list is not None)
True
>>> print(empty is None)
True

The coercion order is:

Path-like inputs, or sequences of path-like inputs, are passed to EDICollection.from_sources.
Existing EDICollection objects are returned unchanged.
Other inputs are scanned with iter_edifiles(); if at least one EDI-like object is found, a new EDICollection is built.
If nothing EDI-like is found, None is returned.

Path discovery options are forwarded to EDICollection.from_sources: recursive, strict, on_dup, and verbose.

13.9.5. Station Name Resolution#

station_name() returns the best available station identifier.

The lookup order is:

ed.station when it exists and is truthy;
HEAD.dataid through the internal header accessor;
object-level fallback attributes name, site, then dataid;
an empty string.

>>> from pycsamt.site.utils import station_name
>>> edi = DemoEDI("A01")
>>> name = station_name(edi)
>>> print(name)
A01

The matching and export tools use this same resolution pattern, so using station_name in your own scripts keeps naming behavior consistent.

13.9.6. Updating Station Names#

set_station_name() updates the object-level station name and the header dataid so they stay synchronized.

>>> from pycsamt.site.utils import set_station_name, station_name
>>> _ = set_station_name(edi, "L01_S001", inplace=True)
>>> print(station_name(edi))
L01_S001
>>> print(edi.Head.dataid)
L01_S001

Use inplace=False when you want a copy-like update.

>>> renamed = set_station_name(
...     edi,
...     "L01_S001_REVIEWED",
...     inplace=False,
... )
>>> print(station_name(renamed))
L01_S001_REVIEWED
>>> print(station_name(edi))
L01_S001

If name is omitted, the helper delegates to the core station-name policy utility using station_id and a pyCSAMT station policy object. For simple scripts, it is often clearer to build the desired string explicitly:

>>> renamed = set_station_name(edi, name=f"S{12:03d}", inplace=False)
>>> print(station_name(renamed))
S012

13.9.7. Metadata Changes Belong to the Metadata API#

The setters on this page are low-level building blocks for adapters and small single-object helpers. For a survey-level rename or a coordinated change to station names, coordinates, HEAD, and INFO, use the validated workflow in Site Metadata. That guide also explains copy-on-write behavior, duplicate name detection, audit tables, ordering before sequential renaming, and export filenames.

In particular, pycsamt.site.base.Sites.map() applies a callable and collects its return values; it does not interpret a dictionary as a station rename table. The distinction and the appropriate rename APIs are demonstrated in Site Metadata.

13.9.8. Coordinate Access#

get_coords() reads latitude, longitude, and elevation from the EDI HEAD section and returns a tuple-like object with lat, lon, and elev fields.

>>> from pycsamt.site.utils import get_coords
>>> edi = DemoEDI("S01", lat=35.125, lon=12.750, elev=1234.0)
>>> coords = get_coords(edi)
>>> print(coords.lat)
35.125
>>> print(coords.lon)
12.75
>>> print(coords.elev)
1234.0

Missing or unreadable coordinate fields return NaN values. The helper supports the legacy header spelling long for longitude.

13.9.9. Writing Coordinates#

set_coords() writes one or more coordinate fields into the EDI header. Values left as None are not changed.

>>> from pycsamt.site.utils import get_coords, set_coords
>>> edi = DemoEDI("S01", lat=35.125, lon=12.750, elev=1234.0)
>>> corrected = set_coords(
...     edi,
...     lat=35.200,
...     lon=12.900,
...     elev=1180.0,
...     inplace=False,
... )
>>> print(get_coords(corrected))
_Coord(lat=35.2, lon=12.9, elev=1180.0)
>>> print(get_coords(edi))
_Coord(lat=35.125, lon=12.75, elev=1234.0)

Longitude is written to both lon and long when the header allows it. This keeps newer code and older EDI conventions aligned.

13.9.10. Copy And In-Place Semantics#

Several site tools expose an inplace flag. The two helpers below make that pattern consistent.

maybe_copy(): Attempts copy.deepcopy(). If deep-copying fails, it returns the original object.
apply_inplace(): Calls a function directly on the input when inplace=True. Otherwise it tries to copy first, then calls the function on the copy.

>>> from pycsamt.site.utils import apply_inplace, set_station_name
>>> def rename_to_reviewed(ed):
...     return set_station_name(ed, "REVIEWED", inplace=True)
>>> edi = DemoEDI("S01", lat=35.125, lon=12.750, elev=1234.0)
>>> reviewed = apply_inplace(
...     edi,
...     rename_to_reviewed,
...     inplace=False,
... )
>>> print(station_name(reviewed))
REVIEWED
>>> print(station_name(edi))
S01
>>> print(reviewed is edi)
False

This pattern is useful when writing your own small site-editing helper:

>>> from pycsamt.site.utils import apply_inplace, set_coords
>>> def force_zero_elevation(ed, *, inplace=False):
...     def update(obj):
...         return set_coords(obj, elev=0.0, inplace=True)
...     return apply_inplace(ed, update, inplace=inplace)
>>> edi = DemoEDI("S01", lat=35.125, lon=12.750, elev=1234.0)
>>> zeroed = force_zero_elevation(edi, inplace=False)
>>> print(get_coords(zeroed).elev)
0.0
>>> print(get_coords(edi).elev)
1234.0

13.9.11. Frequency Access#

get_freq() reads the frequency vector from ed.Z.freq or ed.Z._freq and returns a one-dimensional float array sorted in ascending order.

>>> from pycsamt.site.utils import get_freq
>>> edi = DemoEDI("F", freq=(1000.0, 100.0, 10.0, 1.0))
>>> freq = get_freq(edi)
>>> print(freq[:5])
[   1.   10.  100. 1000.]
>>> print(freq.size)
4

If no frequency vector is available, an empty array is returned. The helper is read-only: it returns a sorted copy for matching convenience, but it does not reorder the data arrays in the EDI object.

13.9.12. Frequency Matching#

freq_match() returns integer indices where frequency values match one or more target frequencies within an absolute tolerance.

(1)#\[|f_i - t| \leq \epsilon\]

Here \(\epsilon\) is the absolute tol argument. Thus two close rows in the next transcript satisfy (1) for the same target without being numerically identical.

>>> import numpy as np
>>> from pycsamt.site.utils import freq_match
>>> f = np.array([1.0, 10.0, 10.0000004, 100.0])
>>> idx = freq_match(f, 10.0, tol=5e-7)
>>> print(idx.tolist())
[1, 2]
>>> idx = freq_match(f, [1.0, 100.0])
>>> print(idx.tolist())
[0, 3]

Non-finite frequency values never match. Duplicate values are all returned when they fall within the tolerance window. In set notation the returned indices are

(2)#\[I = \{\,i : \exists t \in T,\ |f_i - t| \le \epsilon\,\},\]

where \(T\) is the target set and \(\epsilon\) is tol. Equation (2) also explains why every qualifying duplicate is retained rather than only the first match.

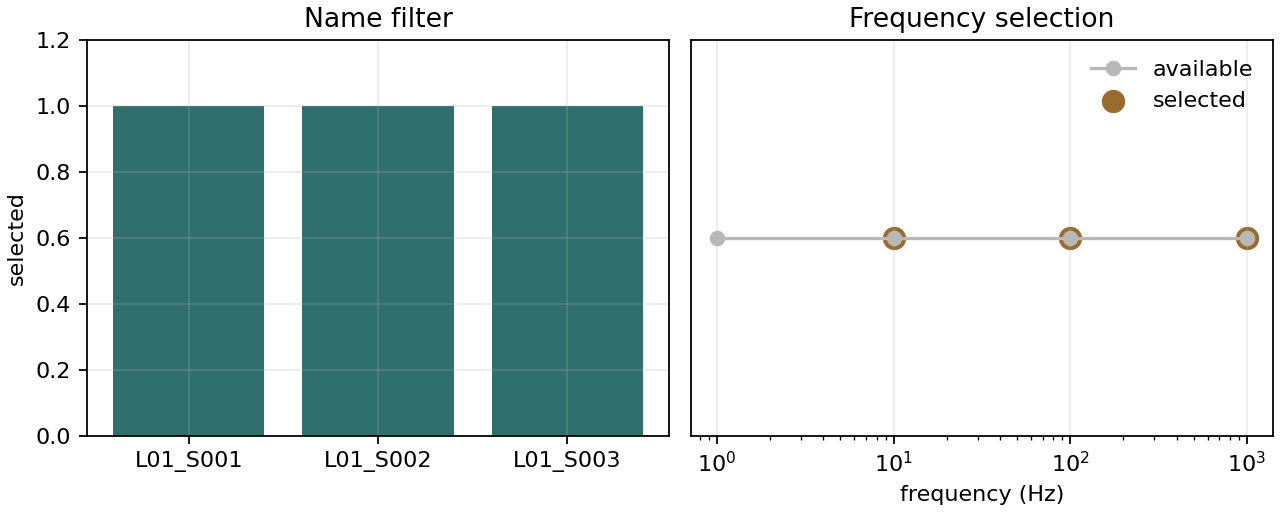

13.9.13. Frequency Selection#

freq_select() turns a scalar, list, tuple range, or slice into integer indices.

>>> import numpy as np
>>> from pycsamt.site.utils import freq_select
>>> f = np.array([1.0, 10.0, 100.0, 1_000.0])
>>> low_band = freq_select(f, (1.0, 100.0))
>>> mid_band = freq_select(f, slice(10.0, 1_000.0))
>>> exact = freq_select(f, [10.0, 100.0])
>>> print(low_band.tolist())
[0, 1, 2]
>>> print(mid_band.tolist())
[1, 2, 3]
>>> print(exact.tolist())
[1, 2]

Selection rules:

slice(lo, hi) selects inclusive bounds with tolerance;
(lo, hi) selects the same inclusive range;
one float or int selects exact matches with tolerance;
a sequence of floats selects exact target frequencies with tolerance.

Use this helper when building masks for pycsamt.site.edit.select_freq() or custom frequency-indexed transformations.

When you select from get_freq(ed), remember that get_freq returns a sorted copy. Apply the indices to that sorted vector, or use pycsamt.site.edit.select_freq() when you need the original arrays sliced consistently.

13.9.14. Name Matching#

match_name() tests one candidate station name against a pattern.

Supported pattern types are:

str: Literal names, wildcard-like strings such as "E*" and "A??", or regex-looking strings.
re.Pattern: A compiled regular expression. The pattern’s own flags are respected.
callable: A function fn(name) -> bool.

>>> import re
>>> from pycsamt.site.utils import match_name
>>> print(match_name("E*", "E01"))
True
>>> print(match_name(re.compile(r"^X\d+$"), "X123"))
True
>>> print(match_name(lambda name: name.endswith("99"), "A99"))
True

String matching is case-insensitive. Glob-like strings are translated to regular expressions internally. Regex-looking strings are compiled with case-insensitive matching.

13.9.15. Selecting By Name#

select_by_name() applies match_name() to every EDI-like object in an input and returns a list of matching EDI objects.

>>> from pycsamt.site.utils import select_by_name, station_name
>>> sites = [
...     DemoEDI("L01_S001"),
...     DemoEDI("L01_S002"),
...     DemoEDI("L02_S003"),
... ]
>>> selected = select_by_name(sites, "L01_*")
>>> print([station_name(ed) for ed in selected])
['L01_S001', 'L01_S002']

For a higher-level container result, use pycsamt.site.selection.by_names() instead. select_by_name is the lightweight list-returning utility used by lower-level scripts and helpers.

13.9.16. Angle Helpers#

wrap_azimuth() wraps an angle in degrees into the half-open interval \([0, 360)\).

>>> from pycsamt.site.utils import wrap_azimuth
>>> print(wrap_azimuth(-10.0))
350.0
>>> print(wrap_azimuth(730.0))
10.0

deg_to_mrad() and mrad_to_deg() convert between degrees and milliradians.

(3)#\[mrad = deg \times \frac{\pi}{180} \times 1000\]

(4)#\[deg = mrad \times \frac{180}{\pi \times 1000}\]

Equations (3) and (4) are inverses apart from floating- point rounding, as the round trip demonstrates:

>>> import numpy as np
>>> from pycsamt.site.utils import deg_to_mrad, mrad_to_deg
>>> angles_deg = np.array([0.0, 90.0, 180.0])
>>> angles_mrad = deg_to_mrad(angles_deg)
>>> restored = mrad_to_deg(angles_mrad)
>>> print(np.round(angles_mrad, 3).tolist())
[0.0, 1570.796, 3141.593]
>>> print(np.round(restored, 3).tolist())
[0.0, 90.0, 180.0]

These helpers accept scalars or NumPy arrays and return NumPy arrays.

13.9.17. Putting Utilities Together#

The following example stays within the utility layer: it normalizes input, selects a frequency band, and collects a named subset. Survey-level metadata changes are deliberately left to Site Metadata.

>>> from pycsamt.site.utils import (
...     freq_select,
...     get_freq,
...     iter_edifiles,
...     select_by_name,
...     station_name,
... )
>>> collection = [
...     DemoEDI("L01_S001"),
...     DemoEDI("L01_S002"),
...     DemoEDI("L01_S003"),
... ]
>>> prepared = []
>>> for ed in iter_edifiles(collection):
...     freq = get_freq(ed)
...     keep = freq_select(freq, (10.0, 1000.0))
...     ed.Z.freq = freq[keep]
...     prepared.append(ed)
>>> line_start = select_by_name(prepared, "L01_S00?")
>>> print([(station_name(ed), get_freq(ed).tolist()) for ed in line_start])
[('L01_S001', [10.0, 100.0, 1000.0]), ('L01_S002', [10.0, 100.0, 1000.0]), ('L01_S003', [10.0, 100.0, 1000.0])]

The same two decisions can be shown as a small audit figure: station names on one side, selected frequency rows on the other.

>>> import matplotlib.pyplot as plt
>>> fig, ax = plt.subplots(
...     1, 2, figsize=(8, 3.2), constrained_layout=True
... )
>>> all_names = [station_name(ed) for ed in prepared]
>>> keep_names = [station_name(ed) for ed in line_start]
>>> _ = ax[0].bar(
...     all_names,
...     [1 if name in keep_names else 0 for name in all_names],
... )
>>> _ = ax[0].set_ylim(0, 1.2)
>>> _ = ax[0].set_ylabel("selected")
>>> _ = ax[0].set_title("Name filter")
>>> freq = np.array([1.0, 10.0, 100.0, 1000.0])
>>> keep = freq_select(freq, (10.0, 1000.0))
>>> _ = ax[1].plot(
...     freq, np.ones_like(freq), marker="o", label="available"
... )
>>> _ = ax[1].scatter(
...     freq[keep], np.ones_like(keep), s=90, label="selected"
... )
>>> _ = ax[1].set_xscale("log")
>>> _ = ax[1].set_yticks([])
>>> _ = ax[1].set_xlabel("frequency (Hz)")
>>> _ = ax[1].set_title("Frequency selection")
>>> _ = ax[1].legend(frameon=False)
>>> for axis in ax:
...     axis.grid(True, alpha=0.25)
>>> fig.savefig("utilities_selection_flow.png", dpi=160)

Two-panel utility audit plot showing selected station names and selected frequency rows. — The left panel records which station identities pass the name rule; the right panel distinguishes available frequencies from the retained band.#

All three bars reach one because L01_S00? accepts exactly one trailing character after L01_S00 and each name satisfies that structure. In the frequency panel, the point at 1 Hz remains available but is not highlighted: the inclusive interval begins at 10 Hz. The highlighted 10, 100, and 1000 Hz points agree with the printed indices and make the two independent filters auditable without suggesting that name matching changed the frequency data.

13.9.18. Common Mistakes#

Using is_edi_collection() on a one-shot generator: The function peeks at the first item. Prefer iter_edifiles() when you need to consume an iterable safely.
Assuming maybe_copy() always returns a distinct object: If deep-copying fails, the original object is returned. Functions that need strict copy isolation should test identity or implement a backend-specific copy path.
Forgetting that get_freq() sorts the returned vector: The helper returns a sorted array for matching convenience, but it does not reorder the EDI object’s data arrays. Use editing tools for real row selection.
Using select_by_name() when you need a Sites container: select_by_name returns a plain list. Use pycsamt.site.selection.by_names() for a Sites result.
Expecting get_coords() to validate coordinates: It is an accessor. Use the location tools when you need parsing, normalization, distance, projection, or topography handling.

13.9.19. Next Pages#

Site Containers for the higher-level Site and Sites wrappers;
Site Metadata for validated renaming, coordinated metadata changes, auditing, and metadata-aware export;
Site Selection for container-returning station filters;
Site Editing for data-changing operations built on these utilities;
Location And Profiles for coordinate parsing, projection, chainage, and profiles;
Export And Reporting for delivery files and survey summaries.
