Forward Modelling Concepts

Forward modelling is the controlled side of electromagnetic interpretation. The model is known, the survey geometry is known, and the solver computes the response. Inversion reverses this relationship: the response is known and the model is estimated.

In pyCSAMT, forward modelling is used for five related tasks:

• computing synthetic MT, CSAMT, and TEM responses from known models;

• testing whether a target should be visible at a planned frequency range, time range, and station spacing;

• generating training data for AI inversion;

• validating inversion settings with synthetic recovery tests;

• producing diagnostic plots that explain why an inversion succeeds or fails.

The forward package is intentionally separate from pycsamt.models. pycsamt.forward contains in-process solvers, grids, synthetic models, noise models, and datasets. pycsamt.models wraps external engines such as Occam2D, ModEM, and MARE2DEM.

The Forward Problem

For an electromagnetic forward problem, pyCSAMT usually works with:

• a resistivity model \(\rho(\mathbf{x})\);

• a source assumption, such as a plane-wave MT source, a controlled-source approximation, or a TEM transmitter loop;

• receiver locations and sampled frequencies or time gates;

• a solver that implements a physical approximation;

• response quantities such as impedance, apparent resistivity, phase, or transient decay.

The basic relationship is:

\[d_\mathrm{pred} = F(m),\]

where \(m\) is the model, \(F\) is the forward operator, and \(d_\mathrm{pred}\) is the predicted data vector.

The same expression appears inside inversion:

\[m_\mathrm{inv} = \arg\min_m \left[ \| W_d(F(m) - d_\mathrm{obs}) \|_2^2 + \lambda R(m) \right].\]

The forward operator \(F\) is therefore not a side detail. It defines how models are compared to data. If the forward assumption is wrong, the inversion can fit the data while still producing a misleading model.

Physical Inputs

A useful forward experiment should make every physical input explicit.

Input	pyCSAMT object or setting	Why it matters
Resistivity model	LayeredModel, Grid2D, Grid3D	Defines where current can flow and where fields diffuse.
Dimensionality	1-D, 2-D, quasi-3-D	Controls which geological structures the solver can represent.
Frequency grid	freqs or ForwardConfig.freq_grid()	Sets the period range and depth sensitivity for MT/CSAMT.
Time gates	times or ForwardConfig.time_grid()	Sets the transient sampling for TEM.
Source assumption	MT plane wave, CSAMT source offset, TEM loop	Determines whether the response is natural-source, controlled-source, or transient.
Station layout	x_stations or stations_xy	Controls lateral sampling and pseudo-section geometry.
Noise model	GaussianNoise, MultiplicativeNoise, FieldRealisticNoise	Makes synthetic data closer to field conditions.

The minimum reproducible forward run should record the model, solver, sampled axis, station geometry, noise model, random seed, and output file.

Dimensionality

The forward package exposes three practical dimensionality levels. Each is a deliberate approximation, not merely a larger array shape.

Level	Objects	Best use	Main limitation
1-D	LayeredModel, MT1DForward, CSAMT1DForward, TEM1DForward	Fast soundings, method comparison, synthetic AI datasets, and sanity checks.	No lateral structure.
2-D	Grid2D, MT2DForward	Survey-line responses, TE/TM comparison, anomaly tests, and pseudo-sections.	Assumes structure is constant along strike.
Quasi-3-D	Grid3D, MT3DForward	Area-style station layouts, approximate tensor responses, and survey-scale synthetic experiments.	Approximate 3-D physics; not a replacement for a full 3-D production solver.

Use the simplest dimensionality that can represent the question. If the question is “Can a conductive layer be detected?”, 1-D may be enough. If the question is “Can stations across a profile detect a buried block?”, use 2-D. If the question involves area coverage, tensor components, or spatially correlated training data, quasi-3-D is more appropriate.

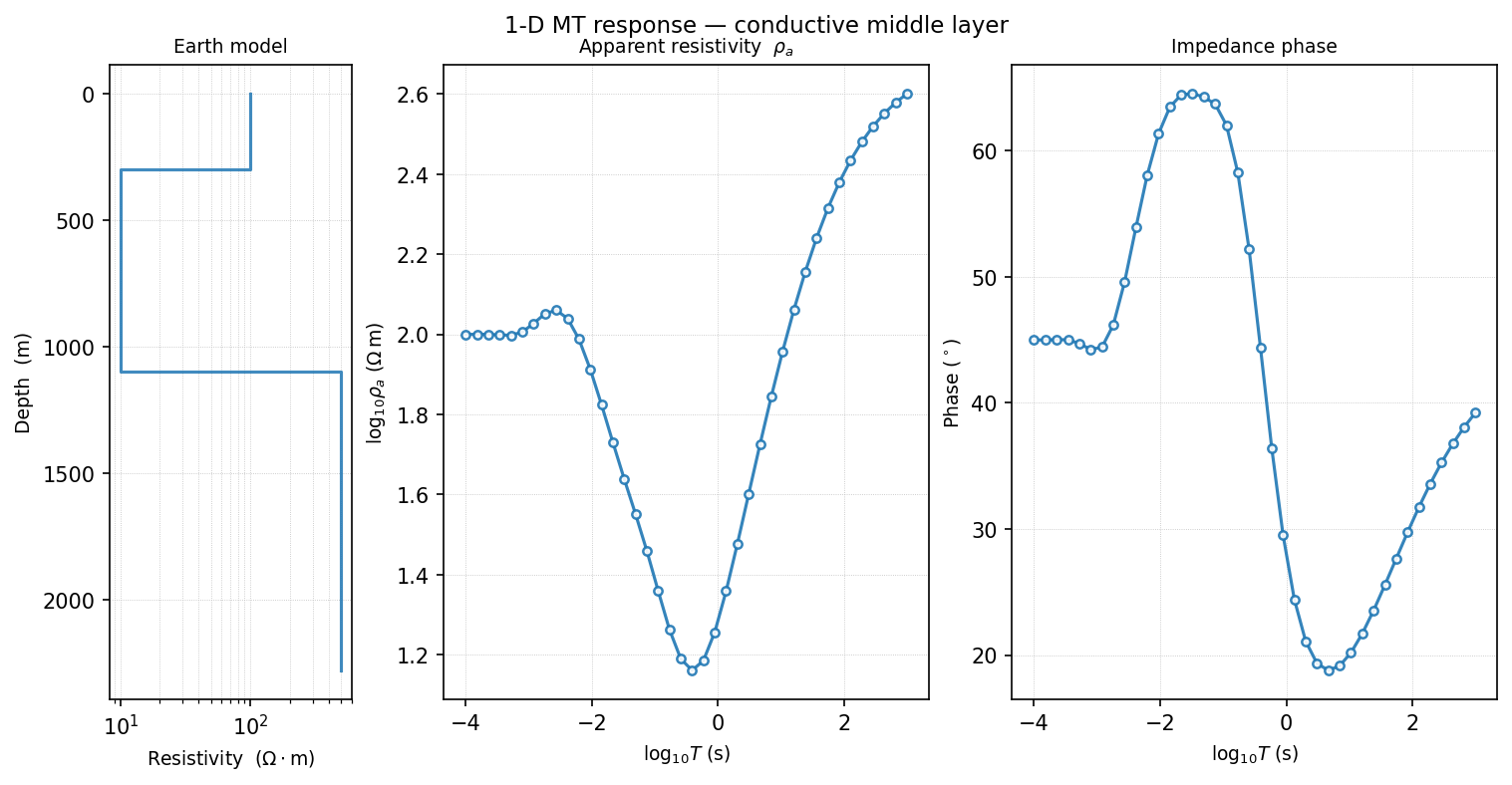

1-D Forward Models

The 1-D model is a stack of horizontal layers. Resistivity varies with depth only:

\[\rho(\mathbf{x}) = \rho(z).\]

pycsamt.forward.LayeredModel stores layer resistivities and thicknesses. The final layer is the halfspace and has no thickness value.

import numpy as np

from pycsamt.forward import LayeredModel, MT1DForward

model = LayeredModel(
    resistivity=[100.0, 10.0, 500.0],
    thickness=[300.0, 800.0],
    name="conductive_middle_layer",
)

freqs = np.logspace(-3, 4, 40)
response = MT1DForward(freqs).run(model)

print(response.rho_a.shape)
print(response.phase.shape)

1-D forward modelling is fast because each frequency or time gate only needs to propagate fields through a layer stack. That makes it ideal for:

• synthetic training datasets with thousands or millions of samples;

• checking apparent resistivity and phase behaviour;

• designing frequency grids;

• comparing MT, CSAMT, and TEM sensitivity;

• teaching and debugging inversion concepts.

It is not appropriate when station-to-station variation is caused by lateral geology rather than noise or near-surface distortion.

MT, CSAMT, And TEM Assumptions

The 1-D solvers share the same model container but represent different field methods.

Solver	Source assumption	Sampled axis	Main output
MT1DForward	Natural plane wave	Frequency \(f\)	Impedance, \(\rho_a\), phase.
CSAMT1DForward	Controlled-source AMT with far-field MT-like behaviour and optional near-field correction.	Frequency \(f\)	Impedance, \(\rho_a\), phase.
TEM1DForward	Central-loop step-off transient.	Time \(t\)	\(\partial B_z / \partial t\).

For MT and CSAMT, angular frequency is:

\[\omega = 2 \pi f.\]

For a 1-D MT response, apparent resistivity is computed from surface impedance:

\[\rho_a = \frac{|Z|^2}{\mu_0 \omega}.\]

The impedance phase is:

\[\phi = \tan^{-1}\left(\frac{\operatorname{Im}(Z)} {\operatorname{Re}(Z)}\right).\]

TEM is different. It observes a transient decay after transmitter current changes. A useful scale estimate is:

\[z(t) \propto \sqrt{\frac{\rho t}{\mu_0}},\]

where later times and more resistive earth tend to sample greater depths. This is only a sensitivity scale, not a direct depth conversion.

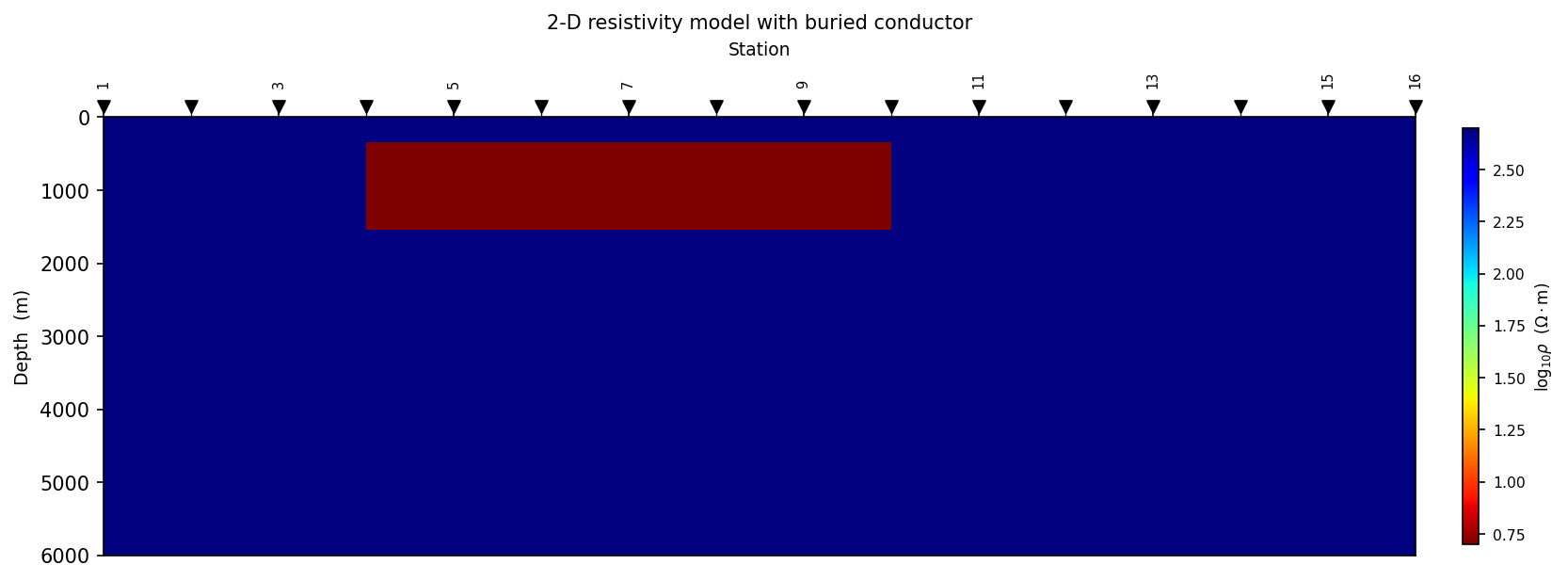

2-D Forward Modelling

In a 2-D model, resistivity varies with horizontal distance and depth but is constant along strike:

\[\rho(\mathbf{x}) = \rho(x, z).\]

pycsamt.forward.Grid2D stores cell widths, depths, resistivity, and station positions. pycsamt.forward.MT2DForward solves both TE and TM polarization modes on the grid.

from pycsamt.forward import Grid2D, MT2DForward

grid = Grid2D.with_anomaly(
    bg_rho=500.0,
    anomaly_rho=5.0,
    anomaly_bounds=(2000.0, 6000.0, 300.0, 1500.0),
    nx=50,
    nz=35,
    x_max=10_000.0,
    z_max=6000.0,
    n_pad=8,
    n_stations=16,
)

response = MT2DForward(
    freqs=[1.0, 10.0, 100.0],
    grid=grid,
    verbose=False,
).run()

features = response.to_feature_array(mode="both")

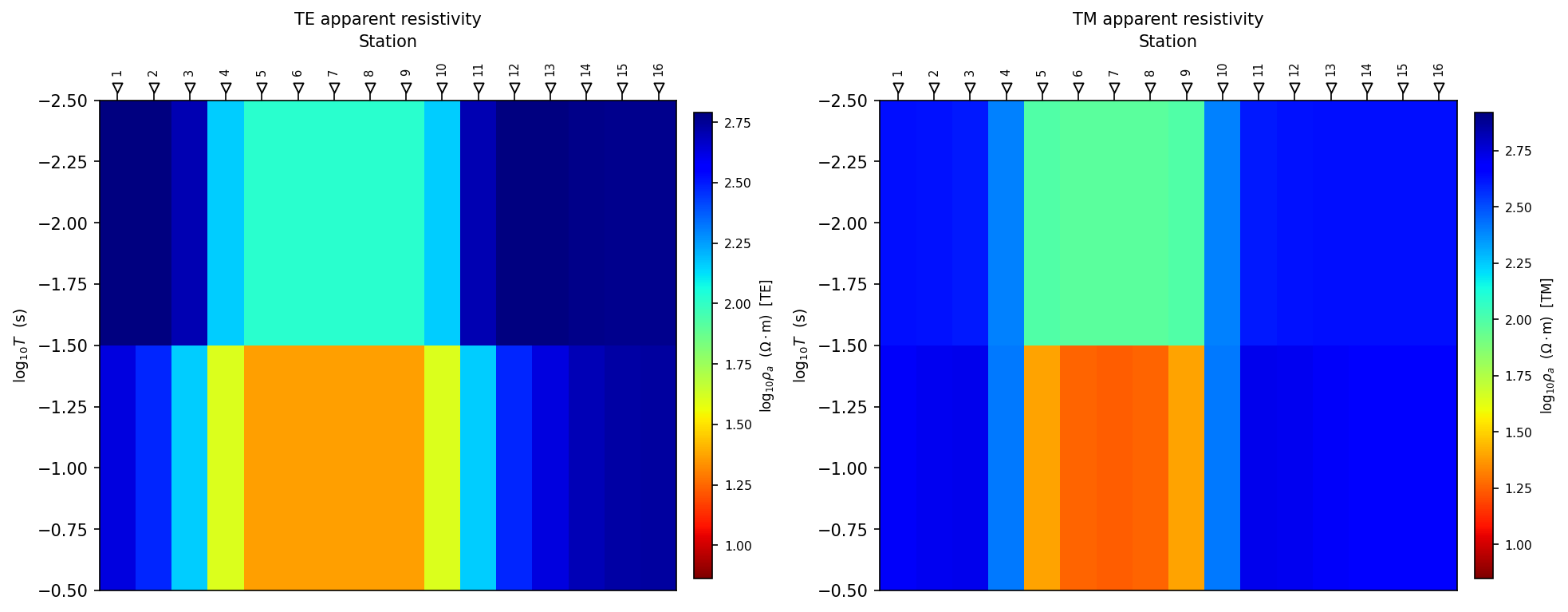

The TE mode uses electric field parallel to strike. In pyCSAMT’s 2-D response object, this corresponds to ZXY. The TM mode uses magnetic field parallel to strike and corresponds to ZYX by convention.

Mode	Response component	Interpretation note
TE	zxy, rho_a_te, phase_te	Often sensitive to conductive structures connected along strike.
TM	zyx, rho_a_tm, phase_tm	Often responds strongly to charge accumulation across resistivity contrasts.

The TE/TM distinction is important for inversion. A 2-D inversion that fits one mode but not the other may be telling you that the dimensionality assumption, strike direction, static shift correction, or error model needs review.

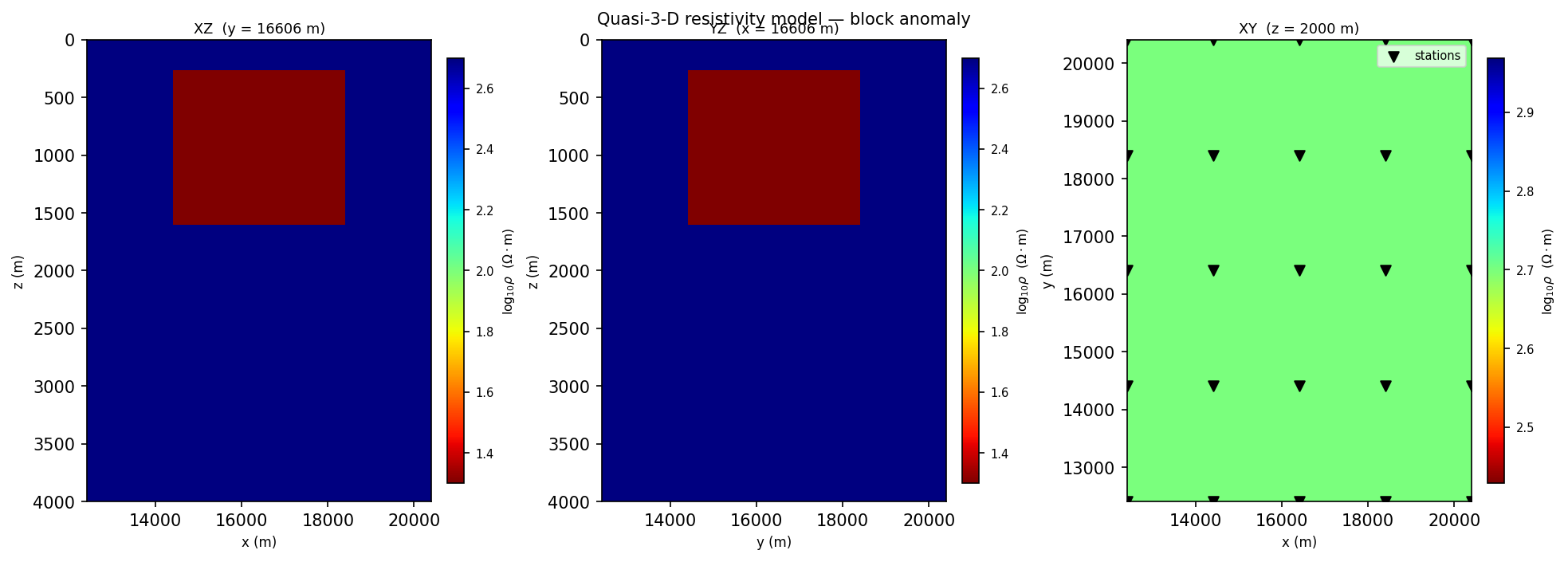

Quasi-3-D Forward Modelling

The quasi-3-D solver is designed for survey-scale synthetic experiments and AI training where station layouts are two-dimensional but a full production 3-D solver would be too expensive.

pycsamt.forward.MT3DForward extracts orthogonal 2-D slices from a pycsamt.forward.Grid3D, solves 2-D responses, and assembles an approximate tensor response. It can return xy, yx, xx, and yy apparent resistivity and phase arrays.

from pycsamt.forward import Grid3D, MT3DForward

grid = Grid3D.block_anomaly(
    bg_rho=500.0,
    anomaly_rho=20.0,
    bounds=(2000.0, 6000.0, 2000.0, 6000.0, 300.0, 1500.0),
    nx=20,
    ny=20,
    nz=15,
    x_max=8000.0,
    y_max=8000.0,
    z_max=4000.0,
    nx_stations=5,
    ny_stations=5,
)

response = MT3DForward(
    freqs=[1.0, 10.0, 100.0],
    grid=grid,
    method="quasi3d",
    verbose=False,
).run()

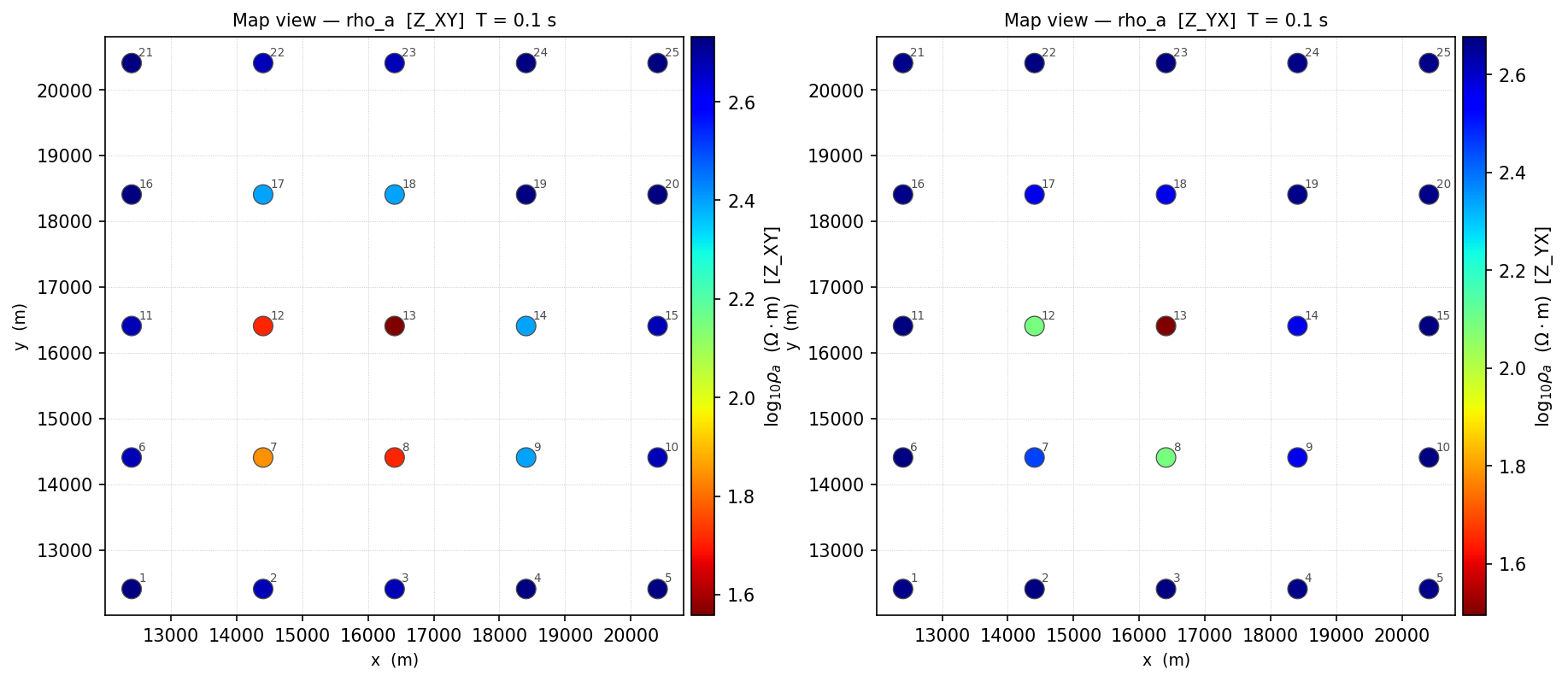

x = response.to_feature_array(components="xy_yx")

The quasi-3-D result is useful for:

• generating spatially varying synthetic responses;

• testing station-layout effects;

• building AI datasets with multi-station features;

• checking tensor-style plotting and response maps;

• developing workflows before moving to ModEM or MARE2DEM.

It should not be presented as a full 3-D Maxwell solver result for final geological interpretation. For production 3-D inversion and reporting, use an appropriate external backend such as ModEM or MARE2DEM.

Frequency, Period, And Depth Sensitivity

Frequency-domain EM responses are commonly plotted against period \(T = 1/f\). Lower frequencies, or longer periods, generally sample greater depths. A useful plane-wave skin-depth scale is:

\[\delta \approx 503 \sqrt{\frac{\rho}{f}},\]

where \(\delta\) is in metres when \(\rho\) is in \(\Omega m\) and \(f\) is in Hz.

This is only a scale estimate. Actual sensitivity depends on:

• dimensionality;

• source geometry;

• resistivity contrast;

• station spacing;

• topography and near-surface structure;

• error floors and noise;

• which response component is used.

Still, the skin-depth estimate is useful when choosing frequency ranges. If the lowest frequency is too high, a deep target may not affect the response enough to recover. If the highest frequency is too low, shallow structure may be poorly resolved.

Response Quantities

Forward responses are returned in physical arrays and can also be flattened into feature arrays for AI and inversion experiments.

Quantity	Where it appears	Use
Complex impedance z	ForwardResponse.z, zxy, zyx, tensor components	Native frequency-domain EM response.
Apparent resistivity rho_a	1-D, 2-D, quasi-3-D response objects	Easy to inspect across period and station.
Phase	1-D, 2-D, quasi-3-D response objects	Adds independent information about conductivity contrasts and inductive behaviour.
dBz_dt	TEM1DForward	Time-domain transient decay.
Feature array	to_array or to_feature_array	Machine-learning or inversion-ready data vector.

For MT/CSAMT training data, a common feature vector is:

[log10(rho_a_0), ..., log10(rho_a_n),
 phase_0, ..., phase_n]

For 2-D and quasi-3-D responses, the feature array is usually organized by station, so the result has shape (n_stations, n_features).

Synthetic Priors

A synthetic dataset is only as useful as its model prior. If the prior contains unrealistic resistivity ranges, layer counts, depths, or lateral correlation, the trained model may perform well on synthetic validation data and poorly on field data.

LayeredModel supports several constructors:

Constructor	Purpose
LayeredModel.random	Draws random layer resistivities and thicknesses from broad bounds.
LayeredModel.blocky	Builds sharper layered contrasts.
LayeredModel.smooth	Builds smoother vertical variation.
LayeredModel.from_geology	Uses named geological priors such as sedimentary, crystalline, geothermal, marine, and permafrost settings.

Use geological priors when the goal is AI training for a known target class. Use broader random priors when the goal is method exploration or robustness testing.

Noise And Realism

Noise-free synthetic data are useful for checking solver behaviour, but they are usually too clean for training robust AI models or evaluating field workflows. pyCSAMT includes Gaussian, multiplicative, and field-realistic noise models so synthetic responses can include controlled uncertainty.

Noise model	Meaning	Good use
GaussianNoise	Adds independent perturbations to response values.	Baseline uncertainty tests.
MultiplicativeNoise	Applies log-space relative perturbations.	Responses spanning orders of magnitude.
FieldRealisticNoise	Adds frequency-dependent noise, dead-band effects, and power-line style contamination.	MT/CSAMT training data and field-like stress tests.

Noise should be documented as part of the experiment:

• noise type;

• noise level;

• random seed;

• whether phase was included;

• any response clipping or log transform;

• the final saved dataset path.

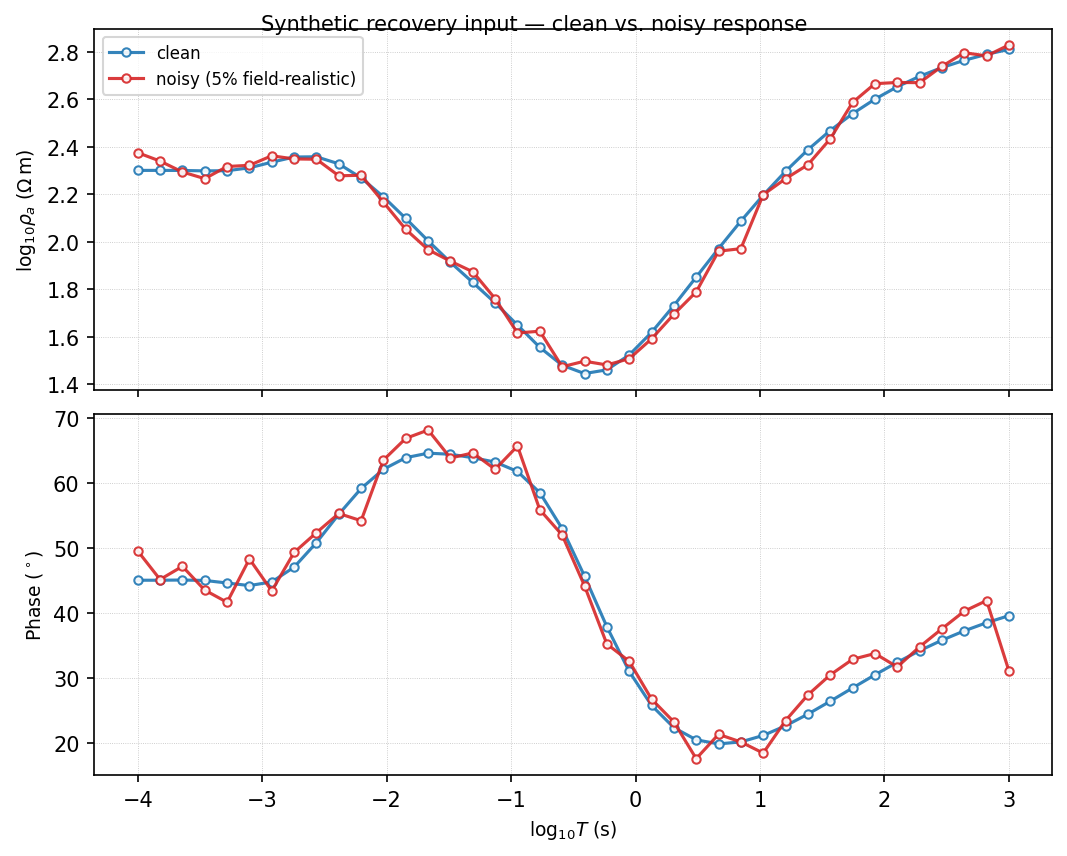

Synthetic Recovery

The most useful forward experiment is often a synthetic recovery test. The workflow is:

1. create a known model;

2. compute a clean response;

3. add controlled noise;

4. invert the synthetic response;

5. compare recovered and true models;

6. repeat with different frequencies, noise levels, and regularization.

import numpy as np

from pycsamt.forward import FieldRealisticNoise, LayeredModel, MT1DForward

true_model = LayeredModel(
    resistivity=[200.0, 20.0, 800.0],
    thickness=[400.0, 1200.0],
)

freqs = np.logspace(-3, 4, 40)
clean = MT1DForward(freqs).run(true_model)
noisy = FieldRealisticNoise(base_level=0.05).apply(clean, seed=0)

features = noisy.to_array(include_phase=True)

This test does not prove that a field inversion is correct. It proves that, under controlled assumptions, the inversion workflow can recover a known model from a response similar to the one being studied.

Common Failure Modes

Forward modelling is often where mistakes are easiest to catch.

Symptom	Likely cause
Apparent resistivity is flat for every model.	Frequency range may not sample the target depth, or the model contrast is too weak.
Phase looks unrealistic or unstable.	Sign convention, component choice, or numerical resolution may need review.
2-D stations show no lateral variation.	The anomaly may be too deep, too small, outside the station aperture, or masked by grid/padding choices.
Quasi-3-D tensor components look over-interpreted.	Remember that the method is approximate and assembled from 2-D profiles.
AI training accuracy is high but field performance is poor.	Synthetic priors, noise model, or feature layout may not match field conditions.
Inversion recovers the wrong model in a synthetic test.	The problem may be non-unique, under-sampled, over-regularized, or using incompatible data errors.

Good Practice Checklist

Before using a forward response in inversion, training, or reporting, verify:

• the dimensionality matches the question;

• resistivity values and thicknesses are physically plausible;

• sampled frequencies or times cover the expected target sensitivity;

• station spacing resolves the lateral scale of interest;

• padding and grid resolution are adequate;

• response units and component labels are clear;

• noise settings are recorded and reproducible;

• feature arrays include the intended quantities;

• plots have been reviewed for obvious physical or numerical issues.

Next Steps

• Forward Configuration explains source-of-truth configuration files.

• Solvers And Grids gives concrete solver and grid examples.

• Synthetic Datasets And Noise explains dataset generation and noise.

• Forward Plotting shows how to inspect responses and models.

• From Forward Modelling To Inversion connects forward tests to inversion workflows.

• ../theory/inversion_concepts provides the inversion background.
