Phased-Array Source Design

pycsamt.emtools.source_array is the transmitter-design module in emtools. Unlike most pages in this section, it does not load EDI files or operate on Sites objects. It implements formulas for a phased-array transmitting source (PAS): a line of controlled-source audio-frequency magnetotelluric dipoles whose relative phases can steer and narrow the transmitted beam.

The traditional source is a single-dipole antenna source, abbreviated SDAS. The phased-array source combines N co-linear SDAS elements with spacing d and inter-element phase shift beta. The module helps you answer practical design questions:

• What wavelength should be used at CSAMT frequencies?

• How directional is one finite-length dipole?

• How much does an N-element array narrow the beam?

• Which phase shift steers the beam to the area of interest?

• Are there unwanted grating lobes?

• How much SNR gain is expected from coherent arraying?

Full function signatures and parameter defaults are maintained in the API reference. The examples below use the public two-level imports from pycsamt.emtools.

Concepts And Angles

The module uses two related angle conventions:

Symbol	Used by	Meaning
theta_deg	sdas_element_pattern	Angle from the dipole axis. 0 and 180 degrees are along the dipole; 90 degrees is broadside.
theta_b_deg	array_factor, pas_pattern, plot_radiation_pattern	Broadside angle. 0 degrees is perpendicular to the array; -90 and +90 degrees are end-fire directions.
theta_m_deg	beam_steer	Desired main-lobe broadside angle.

This distinction matters. The element pattern is written in the dipole axis convention, while the array factor is written in the broadside convention. pas_pattern handles the conversion internally.

Workflow Map

Task	Use this	Output
Compute propagation wavenumber	wavenumber	Earth or free-space wavenumber k in m^-1.
Model one finite SDAS dipole	sdas_element_pattern	Normalized amplitude pattern versus dipole-axis angle.
Model array interference	array_factor	Normalized array factor versus broadside angle.
Combine element and array effects	pas_pattern	Total PAS amplitude pattern.
Steer the main beam	beam_steer	Inter-element phase shift beta in radians.
Check all beam solutions	steering_angles	Target beam and any grating-lobe angles.
Estimate single-source directivity	sdas_directivity	Dimensionless directivity from numerical integration.
Estimate coherent SNR gain	snr_gain_db	Gain in decibels, 20 log10(N).
Plot patterns	plot_radiation_pattern	Polar or Cartesian pattern figure.

Earth Wavenumber

For CSAMT transmitter design, use the effective earth wavenumber when a representative half-space resistivity is known:

\[k_\mathrm{earth} = \sqrt{\frac{\pi f \mu_0}{\rho}}\]

If rho is omitted, wavenumber returns the free-space value 2*pi*f/c. That can be useful as a reference, but it is usually the wrong scale for CSAMT array geometry.

import numpy as np

from pycsamt.emtools import wavenumber

freq = 8.0      # Hz
rho = 300.0     # ohm.m

k_earth = wavenumber(freq, rho=rho)
k_free = wavenumber(freq)

wavelength_earth = 2.0 * np.pi / k_earth
wavelength_free = 2.0 * np.pi / k_free

print(f"earth wavelength: {wavelength_earth:,.0f} m")
print(f"free-space wavelength: {wavelength_free:,.0f} m")

earth wavelength: 19,365 m
free-space wavelength: 37,474,057 m

Use the earth wavelength to judge whether the chosen element spacing is small, moderate, or large in wavelengths:

d = 2000.0
print(f"d / earth wavelength = {d / wavelength_earth:.3f}")

d / earth wavelength = 0.103

A physical spacing that is small at low frequency can become larger than one wavelength at a high CSAMT frequency. That is when side lobes and grating lobes become much more important.

Single-Dipole Element Pattern

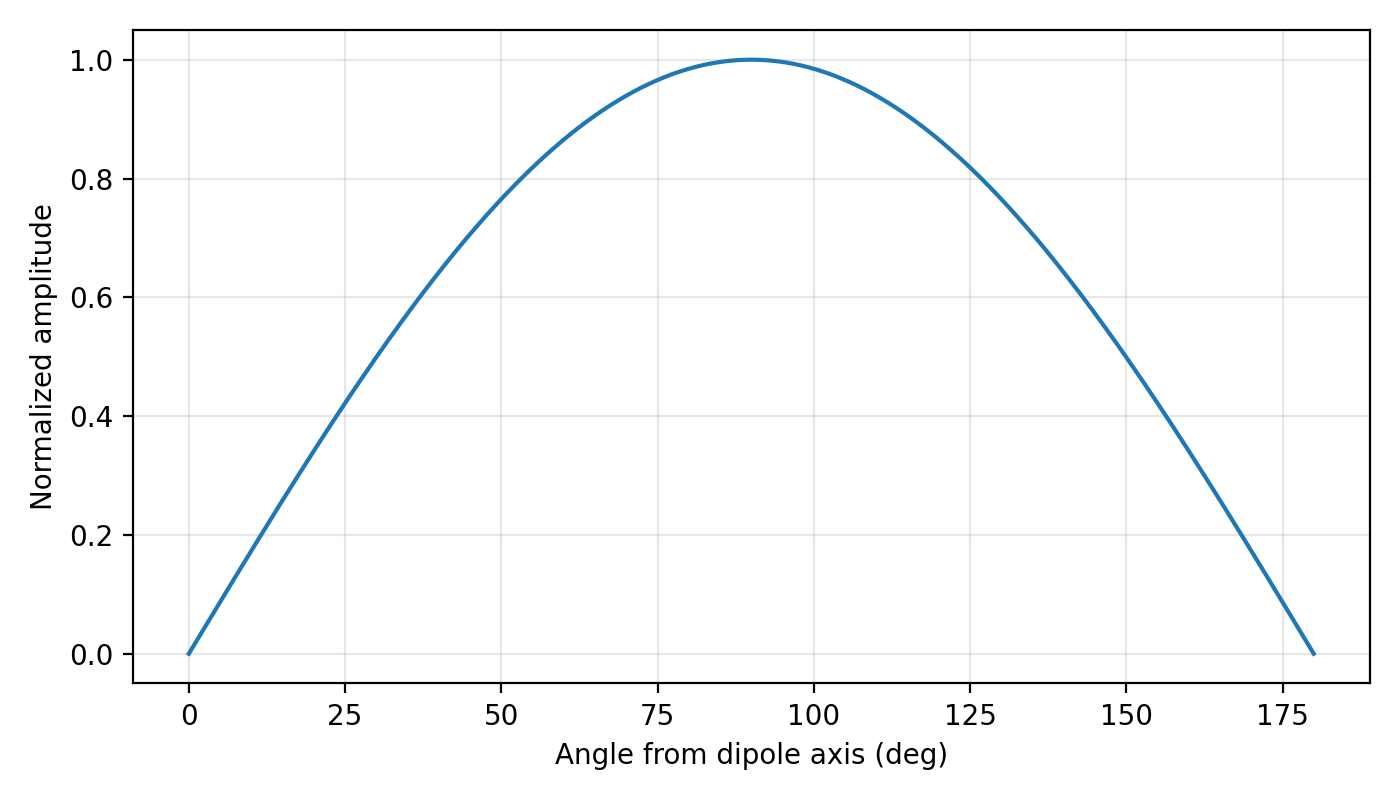

sdas_element_pattern computes the finite-length SDAS element pattern:

\[F(\theta) = \left| \frac{\cos(k l \cos\theta / 2) - \cos(k l / 2)} {\sin\theta} \right|\]

Here theta is measured from the dipole axis. Along the dipole axis the response is a null. Broadside to the dipole the normalized response is usually the maximum.

import matplotlib.pyplot as plt
import numpy as np

from pycsamt.emtools import sdas_element_pattern, wavenumber

freq = 8.0
rho = 300.0
length = 1000.0
k = wavenumber(freq, rho=rho)

theta = np.linspace(0.0, 180.0, 721)
element = sdas_element_pattern(theta, l=length, k=k)

print(element[0], element[360], element[-1])

fig, ax = plt.subplots(figsize=(7, 4))
ax.plot(theta, element)
ax.set_xlabel("Angle from dipole axis (deg)")
ax.set_ylabel("Normalized amplitude")
ax.grid(True, alpha=0.3)
fig.tight_layout()
fig.savefig("sdas_element_pattern.png", dpi=200)
plt.close(fig)

0.0 1.0 0.0

Set normalize=False when you need the unnormalized formula value, for example before computing directivity or comparing absolute pattern shape for different lengths.

Array Factor

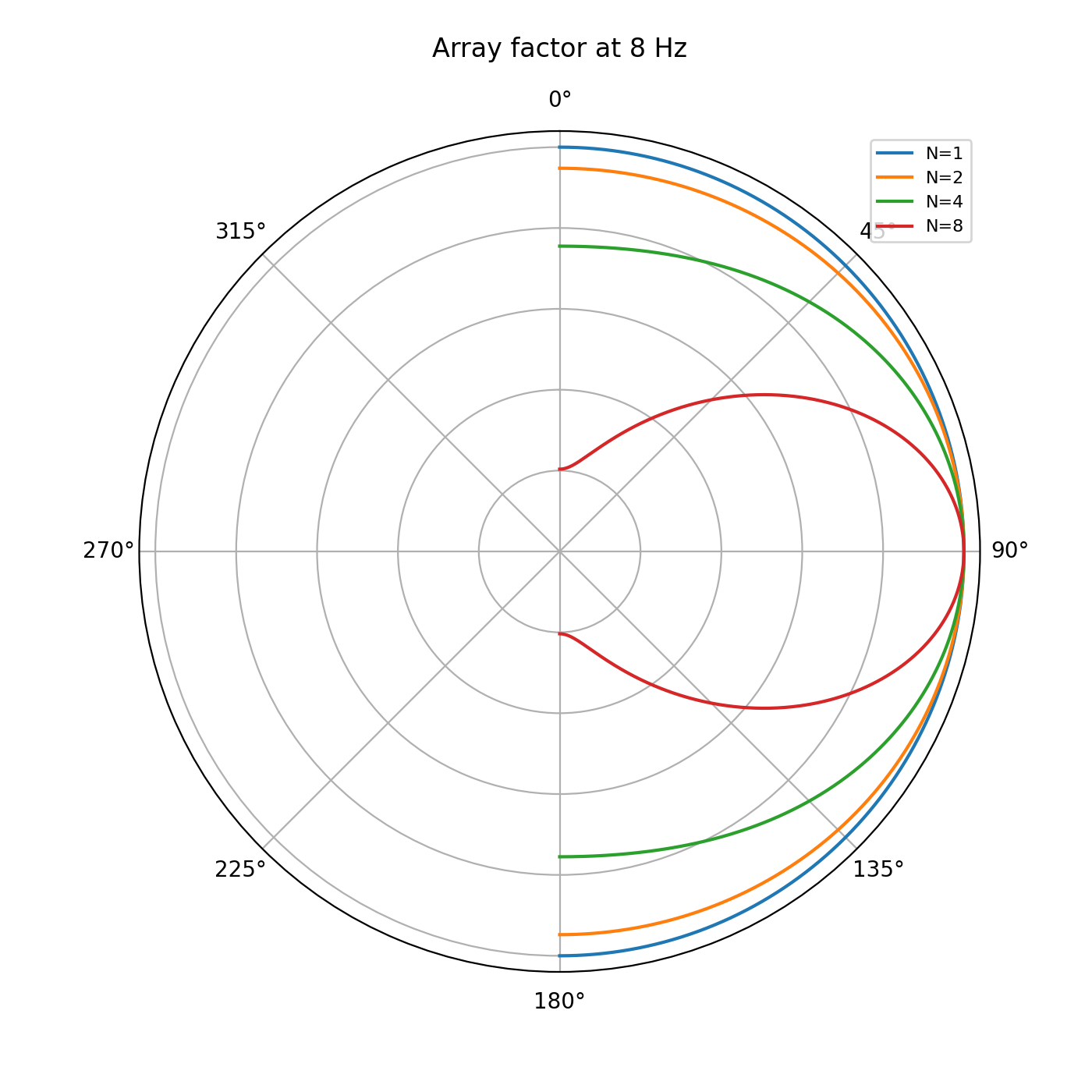

array_factor models interference among N equally spaced co-linear source elements:

\[AF_n = \frac{\sin(N \psi / 2)} {N \sin(\psi / 2)}\]

\[\psi = k d \sin(\theta_b) + \beta\]

The angle theta_b is measured from broadside. With beta=0, the main lobe is broadside at theta_b = 0.

import numpy as np

from pycsamt.emtools import array_factor, plot_radiation_pattern, wavenumber

freq = 8.0
rho = 300.0
d = 2000.0
k = wavenumber(freq, rho=rho)

theta_b = np.linspace(-90.0, 90.0, 721)
patterns = [
    array_factor(theta_b, N=1, d=d, k=k),
    array_factor(theta_b, N=2, d=d, k=k),
    array_factor(theta_b, N=4, d=d, k=k),
    array_factor(theta_b, N=8, d=d, k=k),
]

plot_radiation_pattern(
    theta_b,
    patterns,
    labels=["N=1", "N=2", "N=4", "N=8"],
    title="Array factor at 8 Hz",
)
plt.gcf().savefig("array_factor_8hz.png", dpi=200)
plt.close(plt.gcf())

At low frequency, a kilometer-scale array may be much smaller than one earth wavelength. It can still narrow the beam, but it may not form sharp nulls. Recompute the pattern at the high end of the frequency sweep before trusting a design.

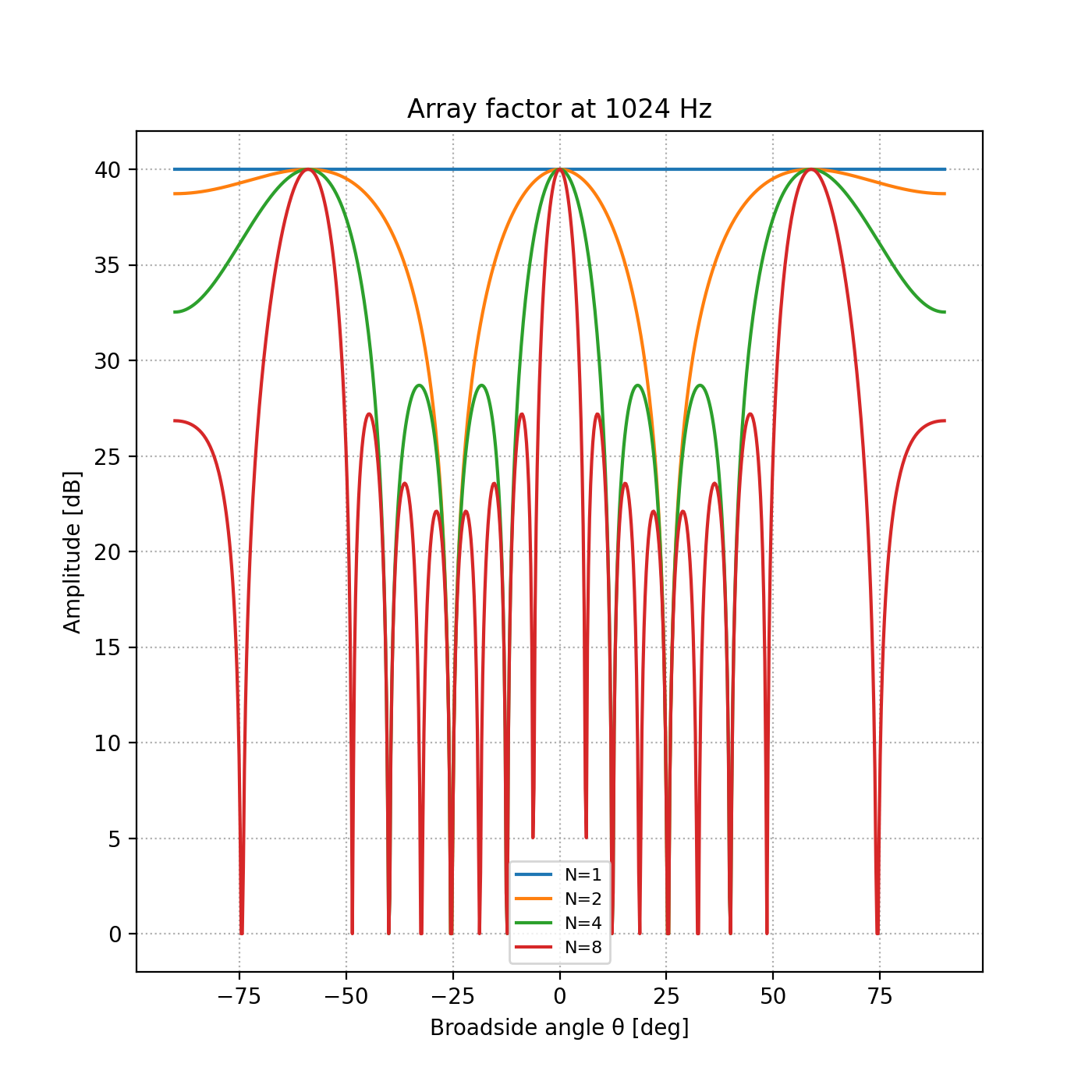

High-Frequency Check

The same physical layout can behave very differently at higher frequency.

import numpy as np

from pycsamt.emtools import array_factor, plot_radiation_pattern, wavenumber

rho = 300.0
d = 2000.0
freq = 1024.0
k = wavenumber(freq, rho=rho)
wavelength = 2.0 * np.pi / k

theta_b = np.linspace(-90.0, 90.0, 721)
patterns = [array_factor(theta_b, N=n, d=d, k=k) for n in (1, 2, 4, 8)]

print(f"d / wavelength = {d / wavelength:.3f}")

plot_radiation_pattern(
    theta_b,
    patterns,
    labels=["N=1", "N=2", "N=4", "N=8"],
    polar=False,
    log_scale=True,
    title="Array factor at 1024 Hz",
)
plt.gcf().savefig("array_factor_1024hz.png", dpi=200)
plt.close(plt.gcf())

d / wavelength = 1.168

When d / wavelength approaches or exceeds 1, grating lobes are likely. A design that looks clean at low frequency can radiate strongly in unintended directions at high frequency.

Beam Steering

beam_steer computes the inter-element phase shift required to steer the main lobe:

\[\beta = -k d \sin(\theta_m)\]

Use steering_angles immediately after beam_steer. It solves the periodic steering equation and reveals whether the requested beam has additional main-lobe solutions.

import numpy as np

from pycsamt.emtools import (
    array_factor,
    beam_steer,
    steering_angles,
    wavenumber,
)

freq = 1024.0
rho = 300.0
d = 2000.0
N = 4
target_angle = 20.0

k = wavenumber(freq, rho=rho)
beta = beam_steer(target_angle, d=d, k=k)

theta_b = np.linspace(-90.0, 90.0, 1801)
af = array_factor(theta_b, N=N, d=d, k=k, beta=beta)
peak_angle = theta_b[np.argmax(af)]
all_lobes = steering_angles(N=N, d=d, k=k, beta=beta, n_range=3)

print(f"beta = {beta:.4f} rad")
print(f"peak angle = {peak_angle:.2f} deg")
print(f"all steering-angle solutions = {all_lobes}")

beta = -2.5110 rad
peak angle = 20.00 deg
all steering-angle solutions = [-30.917035  20.      ]

The peak angle should match the target angle on a fine angular grid. If steering_angles returns multiple values, the design has grating-lobe directions that deserve explicit review.

Combined PAS Pattern

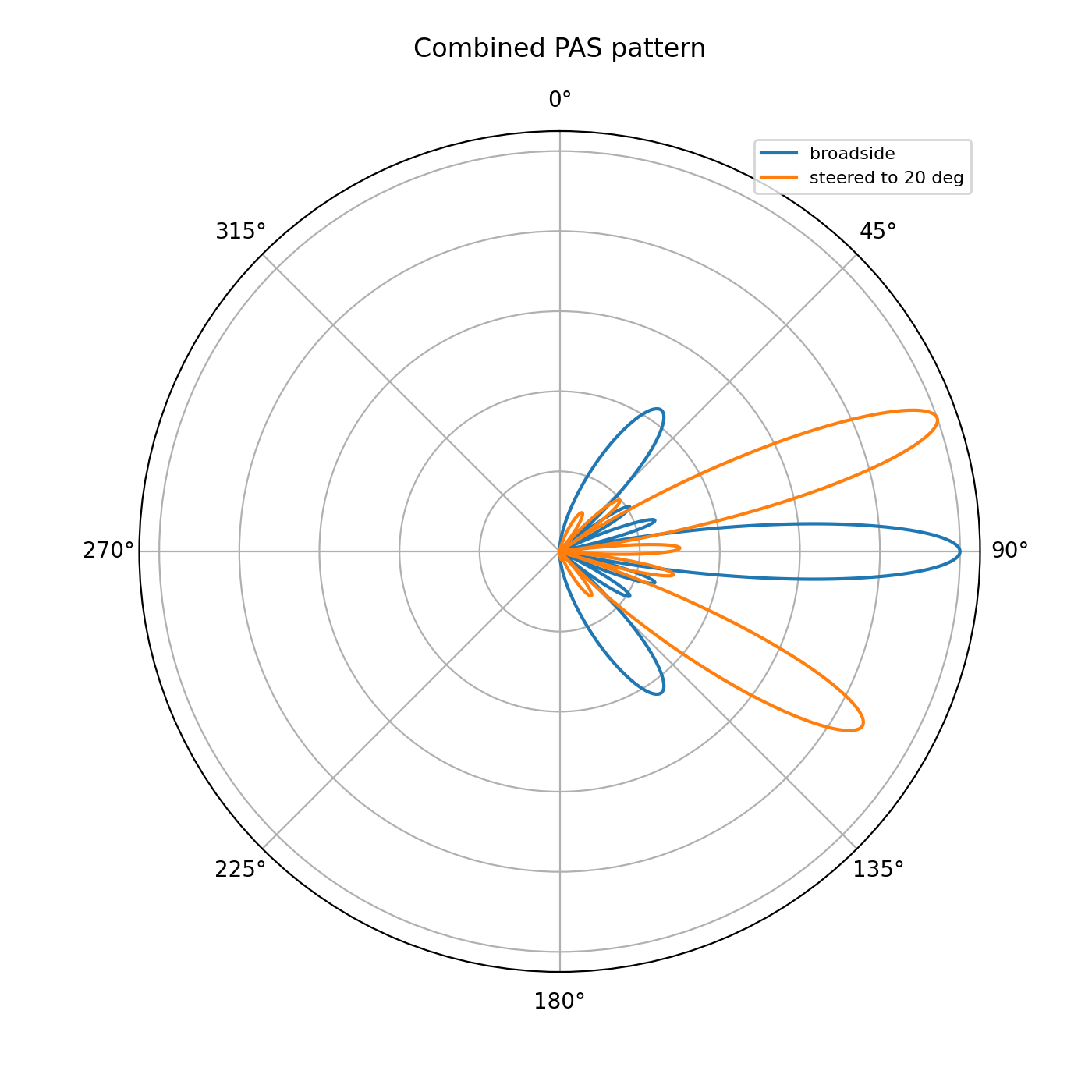

pas_pattern multiplies the single-dipole element pattern by the array factor. This is the practical radiation pattern for the phased array.

import numpy as np

from pycsamt.emtools import (
    beam_steer,
    pas_pattern,
    plot_radiation_pattern,
    wavenumber,
)

theta_b = np.linspace(-90.0, 90.0, 721)
freq = 1024.0
rho = 300.0
d = 2000.0
length = 1000.0
N = 4

k = wavenumber(freq, rho=rho)
beta = beam_steer(20.0, d=d, k=k)

broadside = pas_pattern(theta_b, N=N, d=d, k=k, beta=0.0, l=length)
steered = pas_pattern(theta_b, N=N, d=d, k=k, beta=beta, l=length)

plot_radiation_pattern(
    theta_b,
    [broadside, steered],
    labels=["broadside", "steered to 20 deg"],
    title="Combined PAS pattern",
)
plt.gcf().savefig("combined_pas_pattern.png", dpi=200)
plt.close(plt.gcf())

Use pas_pattern for design figures. Use array_factor alone when you want to isolate what the array geometry contributes independently of the finite dipole element pattern.

Directivity

sdas_directivity numerically integrates the single-dipole element pattern and returns dimensionless directivity. A value of 1 would be omnidirectional in the integration convention; a larger value means more concentrated radiation.

from pycsamt.emtools import sdas_directivity, wavenumber

freq = 1024.0
rho = 300.0
k = wavenumber(freq, rho=rho)

for length in (500.0, 1000.0, 2000.0, 5000.0):
    directivity = sdas_directivity(length, k=k, n_theta=2000)
    print(f"length={length:7.0f} m  directivity={directivity:.3f}")

length=    500 m  directivity=1.544
length=   1000 m  directivity=1.703
length=   2000 m  directivity=3.039
length=   5000 m  directivity=2.985

Do not assume that a longer dipole is always better. Once length becomes a significant fraction of wavelength, directivity can change non-monotonically with frequency and length.

SNR Gain

snr_gain_db returns the coherent PAS gain relative to one SDAS:

\[G_\mathrm{dB} = 20 \log_{10}(N)\]

from pycsamt.emtools import snr_gain_db

for n_elem in (1, 2, 4, 8, 16):
    print(f"N={n_elem:2d}: {snr_gain_db(n_elem):5.2f} dB")

N= 1:  0.00 dB
N= 2:  6.02 dB
N= 4: 12.04 dB
N= 8: 18.06 dB
N=16: 24.08 dB

This is the ideal coherent-array gain. It does not guarantee that all extra energy reaches the intended area. If grating lobes are present, a large fraction of the gain can be radiated into an unintended direction.

Plotting Patterns

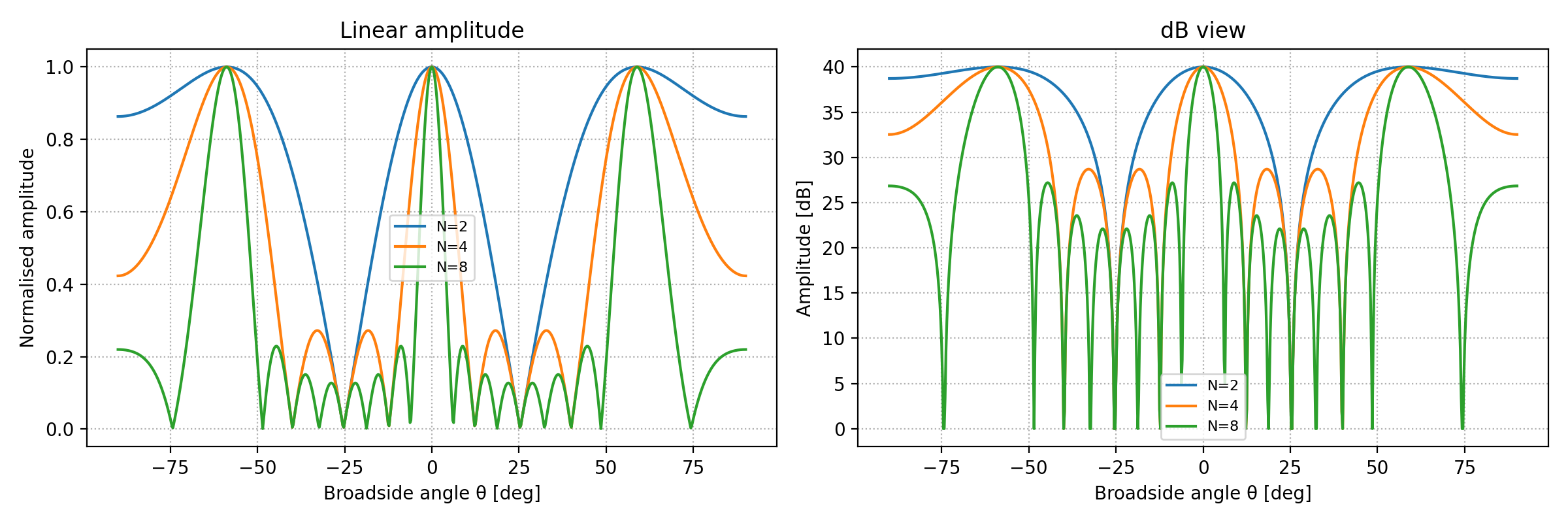

plot_radiation_pattern accepts one pattern or a stack/list of patterns. It can draw polar plots for quick design review or Cartesian dB plots for side-lobe inspection.

import matplotlib.pyplot as plt
import numpy as np

from pycsamt.emtools import array_factor, plot_radiation_pattern, wavenumber

theta_b = np.linspace(-90.0, 90.0, 721)
k = wavenumber(1024.0, rho=300.0)
d = 2000.0

patterns = [array_factor(theta_b, N=n, d=d, k=k) for n in (2, 4, 8)]

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

plot_radiation_pattern(
    theta_b,
    patterns,
    labels=["N=2", "N=4", "N=8"],
    polar=False,
    ax=axes[0],
    title="Linear amplitude",
)

plot_radiation_pattern(
    theta_b,
    patterns,
    labels=["N=2", "N=4", "N=8"],
    polar=False,
    log_scale=True,
    db_floor=-40.0,
    ax=axes[1],
    title="dB view",
)
fig.tight_layout()
fig.savefig("source_array_pattern_views.png", dpi=200)
plt.close(fig)

Use the dB view when side lobes matter. A weak-looking side lobe on a linear-amplitude plot may still be too strong for a field design.

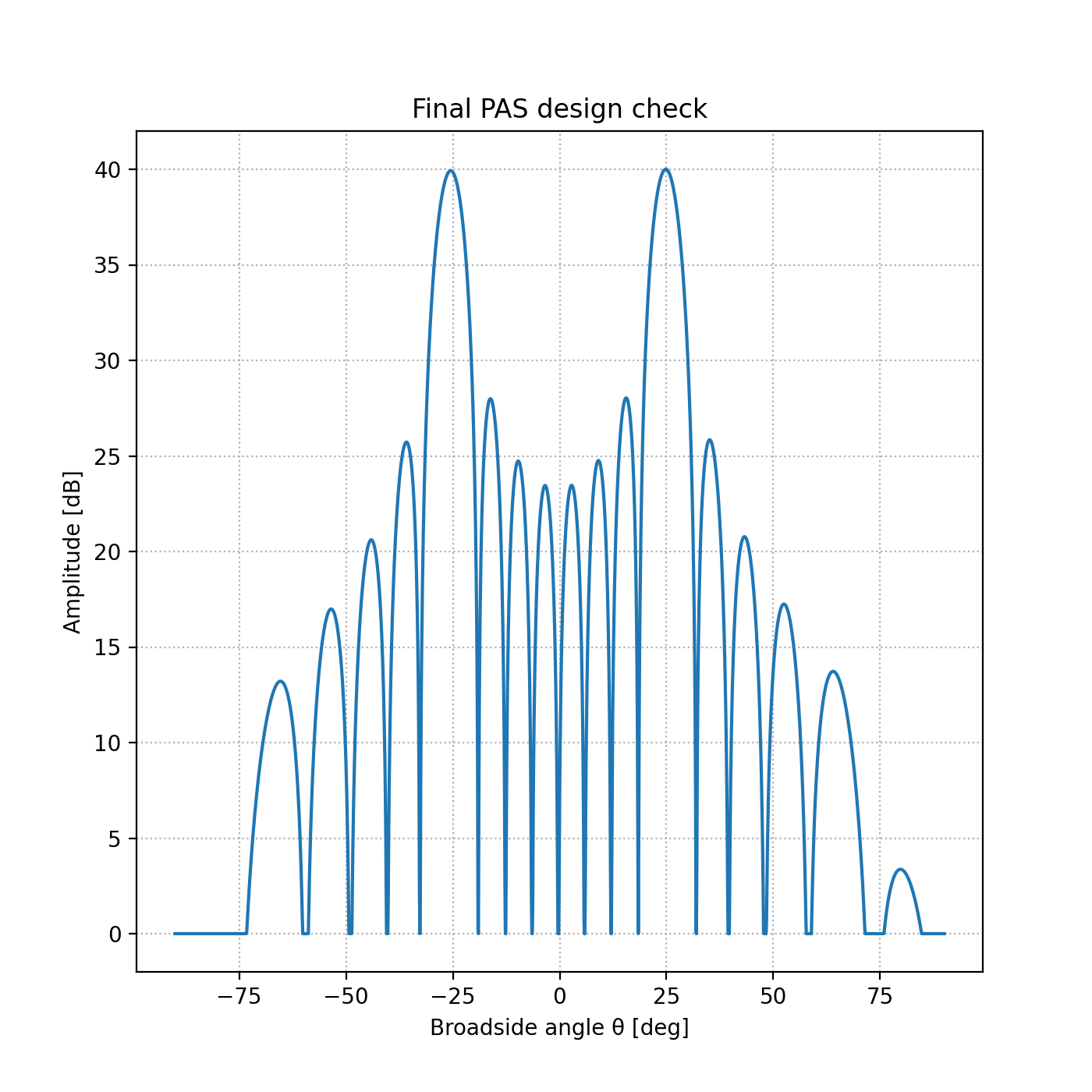

Design Checklist

For a concrete PAS design, keep the calculation explicit:

import numpy as np

from pycsamt.emtools import (
    beam_steer,
    pas_pattern,
    plot_radiation_pattern,
    snr_gain_db,
    steering_angles,
    wavenumber,
)

freq = 1024.0
rho = 300.0
N = 8
d = 2000.0
length = 1000.0
target_angle = 25.0
theta_b = np.linspace(-90.0, 90.0, 1801)

k = wavenumber(freq, rho=rho)
wavelength = 2.0 * np.pi / k
beta = beam_steer(target_angle, d=d, k=k)
lobes = steering_angles(N=N, d=d, k=k, beta=beta, n_range=4)
pattern = pas_pattern(theta_b, N=N, d=d, k=k, beta=beta, l=length)

print(f"earth wavelength = {wavelength:.1f} m")
print(f"d / wavelength = {d / wavelength:.3f}")
print(f"beta = {beta:.4f} rad")
print(f"steering-angle solutions = {lobes}")
print(f"ideal coherent SNR gain = {snr_gain_db(N):.2f} dB")

plot_radiation_pattern(
    theta_b,
    pattern,
    polar=False,
    log_scale=True,
    title="Final PAS design check",
)
plt.gcf().savefig("final_pas_design_check.png", dpi=200)
plt.close(plt.gcf())

earth wavelength = 1711.6 m
d / wavelength = 1.168
beta = -3.1028 rad
steering-angle solutions = [-25.6707  25.    ]
ideal coherent SNR gain = 18.06 dB

Review the output in this order:

• d / wavelength tells you whether grating lobes are physically plausible.

• steering_angles tells you where all main-lobe solutions are.

• The radiation pattern shows main-lobe width and side-lobe strength.

• snr_gain_db tells you the ideal coherent gain from element count.

Common Pitfalls

Do not design from free-space wavelength at CSAMT frequencies. Use wavenumber(freq, rho=...) when a representative resistivity is available.

Do not check only one frequency. A layout with modest spacing at low frequency can have d / wavelength > 1 at the high end of the sweep.

Do not treat SNR gain as directional selectivity. snr_gain_db(8) is about 18 dB, but grating lobes can send much of that coherent energy away from the intended target.

Do not mix the angle conventions. sdas_element_pattern uses angle from the dipole axis; array_factor and pas_pattern use broadside angle.

Worked Example

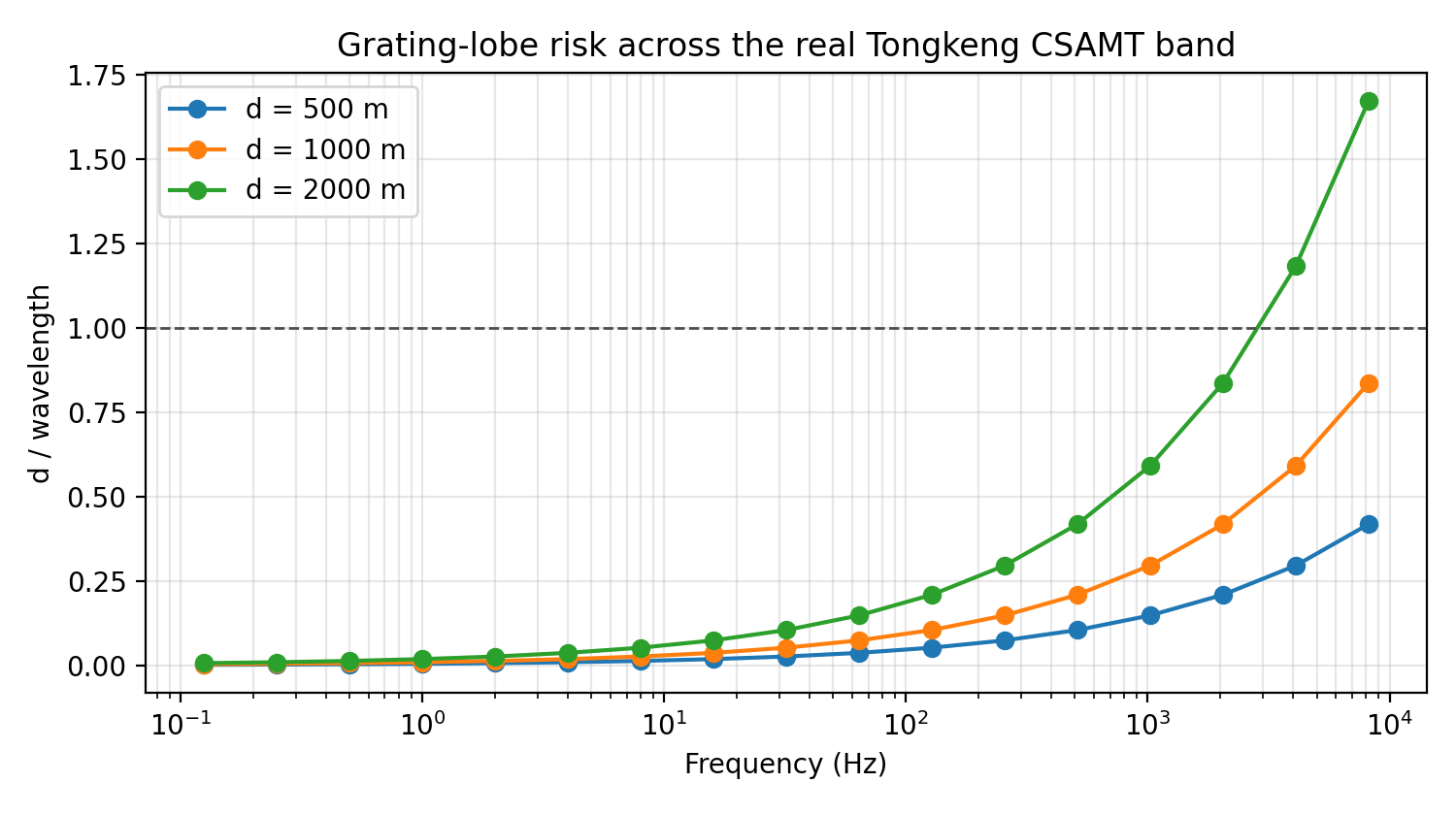

The example walks through the single-dipole pattern, earth versus free-space wavenumber, low- and high-frequency array factors, beam steering, grating-lobe detection, combined PAS patterns, directivity, SNR gain, and one concrete 8-element design.

Open the rendered gallery page here: Phased-array CSAMT transmitter design (pycsamt.emtools.source_array).
