Processing a tipper survey (spectra to induction arrows)

The corrections so far worked on the impedance tensor; this one follows the vertical-field tipper through a complete run. MT data begins life as raw cross-spectra, from which both the impedance and the tipper are derived — so we open at the spectra level, then process a real tipper-bearing line (KAP03, a SAMTEX long-period profile whose station coordinates live in the hidden REFLAT/REFLONG fields), watching the induction response clean up and writing tipper-preserving EDIs at the end.

Where tipper comes from: the raw spectra

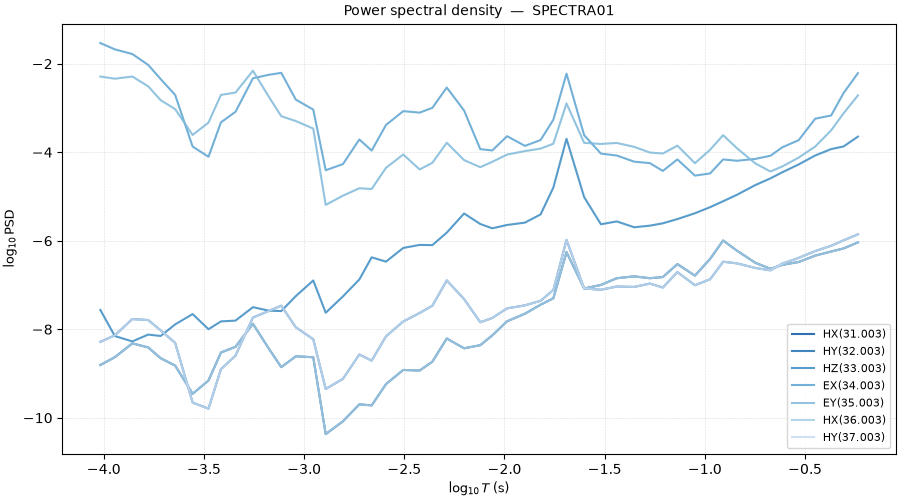

Spectra.from_file reads the >=SPECTRASECT cross-power block. plot_psd() shows the channel power spectra — the signal levels every transfer function is estimated from.

import os
from pathlib import Path

import numpy as np

from pycsamt.emtools import (
    plot_psd,
    plot_tipper_from_spectra,
    spectra_summary,
)
from pycsamt.seg.spectra import Spectra

ROOT = Path(os.environ.get("PYCSAMT_DOCS_REPO_ROOT", "."))
sp = Spectra.from_file(
    str(ROOT / "data" / "MT" / "SPECTRA" / "spectra01.edi")
)
print("spectra summary:")
print(spectra_summary(sp))
_ax = plot_psd(sp)

spectra summary:
APIFrame: spectra_summary
kind: emtools.spectra.summary
shape: 51 rows x 13 columns
columns: freq, period, bw, avgt, rotspec, psd_HX(31.003), psd_HY(32.003), psd_HZ(33.003), ...
numeric: 13 columns
missing: 0.0%
source: Spectra: SPECTRA01
n_freq: 51
f[Hz]: min=1.72, max=10400
errors: no
arrays:
  - _freq: (51,)@float64
  - _S: (51, 7, 7)@complex128
  - bw: (51,)@float64
  - avgt: (51,)@float64
  - avgf: (51,)@float64
  - rotspec: (51,)@float64
  - segnum: (51,)@int64
description: Compact per-frequency spectra summary.

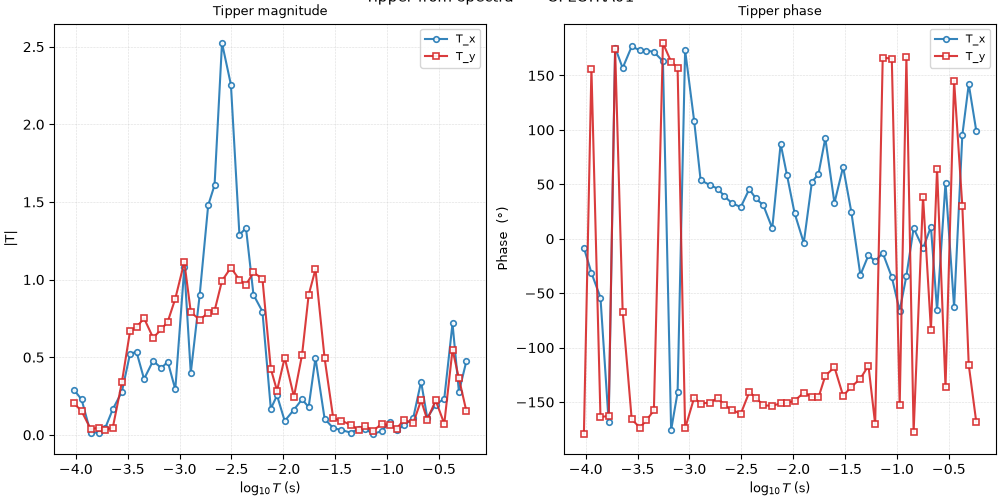

The tipper, recovered from the spectra

plot_tipper_from_spectra() solves the vertical-field transfer function (Tx, Ty) straight from the cross-spectra — the tipper at its origin, before it is written into an EDI. This is the quantity the rest of the workflow conditions.

_tzx = plot_tipper_from_spectra(sp)

Load the tipper line

KAP03 ships the derived impedance and tipper. Its 26 stations span 25 s - 17,067 s, and unlike the AMT lines it carries a genuine vertical field, so every induction arrow below is real tipper.

from pycsamt.emtools import (
    drop_duplicates,
    drop_low_confidence_frequencies,
    notch_powerline,
    plot_induction_arrows,
    plot_induction_rose,
    plot_induction_section,
    select_band,
    smooth_logfreq,
)
from pycsamt.emtools._core import _iter_items, ensure_sites
from pycsamt.site.export import write_sites

K = ensure_sites(str(ROOT / "data" / "MT" / "kap03lmt_edis"))


def n_freq(sites):
    return np.array([len(np.asarray(e.freq)) for e in _iter_items(sites)])


print(
    f"KAP03: {len(n_freq(K))} stations, {n_freq(K).max()} frequencies "
    f"(period 25-17067 s), real tipper channel"
)

KAP03: 26 stations, 20 frequencies (period 25-17067 s), real tipper channel

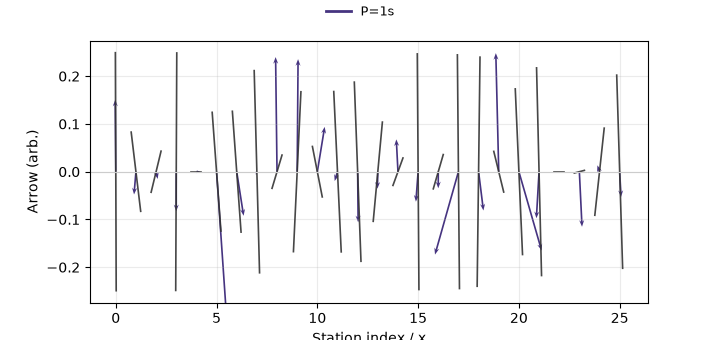

Raw induction arrows

plot_induction_arrows() draws the real induction vectors at several periods. Under the Parkinson convention they point away from conductors, so a coherent arrow pattern is real structure and a noisy one flags tipper that needs cleaning.

ax = plot_induction_arrows(K)

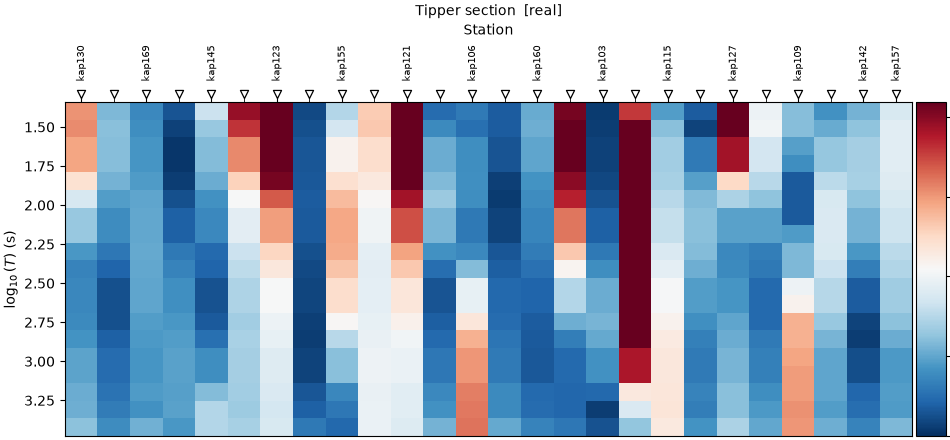

Raw tipper section

plot_induction_section() images tipper magnitude across station and period — effectively a spectral view of the vertical field. The raw section is speckled where the tipper estimate is noisy.

ax = plot_induction_section(K, component="real")

Process the survey (tipper carried through)

The correction functions accept also="both", so they clean the tipper alongside the impedance. We trim the frequency axis, then notch and smooth — each step returning a new Sites whose tipper is processed, not dropped.

s1 = drop_duplicates(K, recursive=False)
s2 = select_band(s1, fmin=1e-4, fmax=5e-2, recursive=False)
s3 = drop_low_confidence_frequencies(s2, threshold=0.5, recursive=False)
s4 = notch_powerline(s3, also="both", recursive=False)
final = smooth_logfreq(s4, win=5, also="both", recursive=False)
print(
    f"frequencies: {n_freq(K).max()} raw -> {n_freq(final).max()} processed "
    f"(band-trimmed and confidence-pruned)"
)
print(
    "chain: raw -> drop_dup -> select_band -> drop_low_conf -> "
    "notch(both) -> smooth(both)"
)

frequencies: 20 raw -> 18 processed (band-trimmed and confidence-pruned)
chain: raw -> drop_dup -> select_band -> drop_low_conf -> notch(both) -> smooth(both)

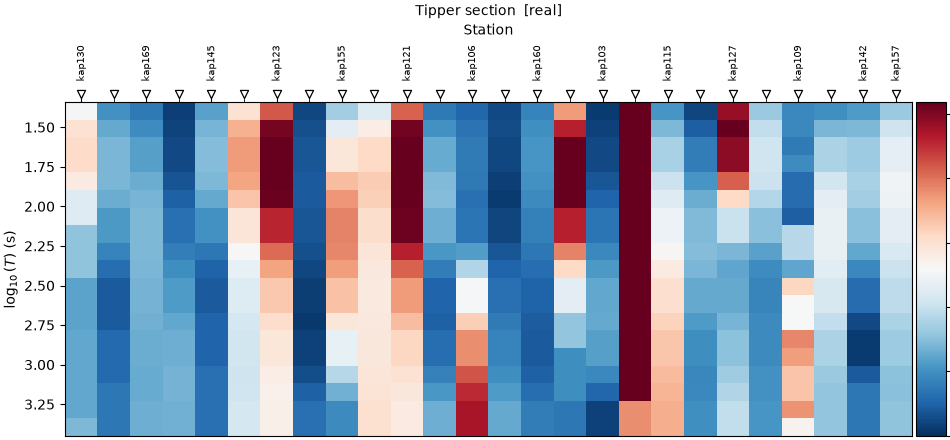

Processed tipper section

The same section on the processed data: band-limited to the trustworthy periods and smoothed, so the coherent induction signal stands clear of the noise the raw section carried.

ax = plot_induction_section(final, component="real")

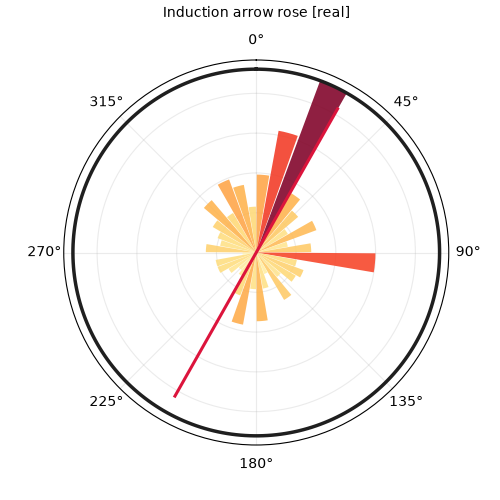

Processed induction rose

plot_induction_rose() folds the arrow azimuths into a rose — after cleaning, a tighter preferred direction confirms a coherent regional conductor rather than scatter.

ax = plot_induction_rose(final, component="real")

Write tipper-preserving EDIs

write_sites() serialises the processed line back to EDIs with the cleaned tipper intact — the deliverable for a tipper-inclusive inversion.

import tempfile

outdir = Path(tempfile.mkdtemp(prefix="kap03_tipper_"))
paths = write_sites(final, outdir, exist_ok=True)
reloaded = ensure_sites(str(outdir))
print(
    f"wrote {len(paths)} tipper-preserving EDIs; re-loaded "
    f"{len(n_freq(reloaded))} with {n_freq(reloaded).max()} frequencies"
)

wrote 26 tipper-preserving EDIs; re-loaded 26 with 18 frequencies

Takeaway. Tipper rides through the same Sites -> Sites pipeline as the impedance: process it with also="both", watch the induction section and rose clean up, and write EDIs that keep the vertical field. Combined with the impedance waves (static shift, rotation), this completes a tipper-inclusive processing run — spectra in, sanitised induction arrows out.
