Exporting selected site collections

The first two site-gallery examples covered loading, reporting, and selecting stations. This page finishes the basic workflow:

“I have a clean subset. How do I hand it off?”

Export is useful when a selected set of EDI files needs to be used by another program, attached to a processing report, archived with a manifest, or passed to a colleague without the rest of the survey directory.

This example demonstrates a careful export pattern:

• build a small deterministic subset from the bundled WILLY survey;

• preview the stations before writing anything;

• choose stable, collision-resistant filenames;

• write EDI files to a clean output directory;

• write and inspect a CSV manifest;

• package the same subset into a zip archive;

• verify the exported directory can be loaded back with pycsamt.emtools.ensure_sites().

The original EDI files are never modified. The generated files are written to site_gallery_exports/ relative to the current working directory.

1. Imports and example-data location

Gallery examples are easiest to read when imports are visible up front. The small sys.path bootstrap lets this downloaded script run from a source checkout; during documentation builds, docs/source/conf.py already does this setup.

import csv
import os
import shutil
import sys
import zipfile
from pathlib import Path

import matplotlib.pyplot as plt


def repo_root():
    root = os.environ.get("PYCSAMT_DOCS_REPO_ROOT")
    return Path(root) if root else Path(__file__).resolve().parents[3]


ROOT = repo_root()
if str(ROOT) not in sys.path:
    sys.path.insert(0, str(ROOT))

from pycsamt.emtools import ensure_sites
from pycsamt.site import (
    SitesReport,
    by_freq,
    by_index,
    by_names,
    drop_empty,
    keep_finite_z,
    pack_zip,
    write_sites,
)

edi_root = ROOT / "data" / "AMT" / "WILLY_DATA"
export_root = Path("site_gallery_exports")
export_dir = export_root / "line18_first5"
manifest_csv = export_dir / "manifest.csv"
archive_path = export_root / "line18_first5.zip"
archive_manifest_csv = export_root / "line18_first5_zip_manifest.csv"

2. Prepare a deterministic subset

This example intentionally uses a small subset so documentation builds stay fast and generated files remain easy to inspect. The selection chain mirrors a realistic workflow:

• load all WILLY lines recursively;

• keep stations with finite impedance;

• keep line 18 by station-name pattern;

• require overlap with a useful frequency band;

• keep the first five stations for a compact export;

• drop structurally empty stations as a final guard.

all_sites = ensure_sites(edi_root, recursive=True, verbose=0)

selected_sites = keep_finite_z(all_sites)
selected_sites = by_names(selected_sites, "18-*")
selected_sites = by_freq(selected_sites, 10.0, 1_000.0)
selected_sites = by_index(selected_sites, [0, 1, 2, 3, 4])
selected_sites = drop_empty(selected_sites)

if len(selected_sites) == 0:
    raise RuntimeError(
        "The export selection is empty; nothing can be written."
    )

if export_dir.exists():
    shutil.rmtree(export_dir)
if archive_path.exists():
    archive_path.unlink()
if archive_manifest_csv.exists():
    archive_manifest_csv.unlink()

selected_table = SitesReport(selected_sites).to_dataframe()

print(f"Loaded survey stations:   {len(all_sites)}")
print(f"Selected export stations: {len(selected_sites)}")
print(
    selected_table[
        ["station", "nfreq", "freq_min", "freq_max", "has_Zxy", "has_Zyx"]
    ].to_string(index=False)
)

Loaded survey stations:   53
Selected export stations: 5
station  nfreq  freq_min  freq_max  has_Zxy  has_Zyx
18-015U     53     1.008   10400.0     True     True
18-008U     53     1.008   10400.0     True     True
18-003A     53     1.008   10400.0     True     True
18-016A     53     1.008   10400.0     True     True
18-025A     53     1.008   10400.0     True     True

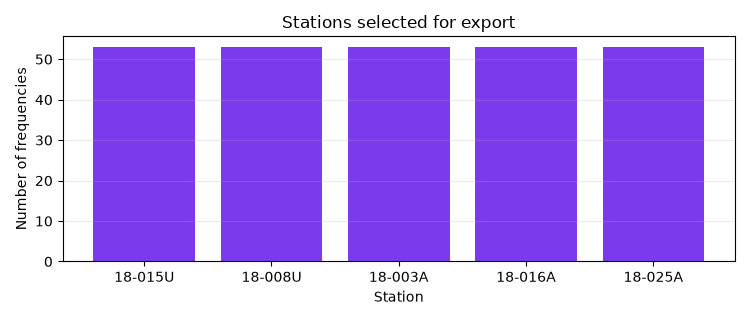

A small preview plot is helpful in the rendered gallery: it shows the subset size and confirms the selected stations all carry the same number of frequency samples.

fig, ax = plt.subplots(figsize=(7.5, 3.2))
ax.bar(selected_table["station"], selected_table["nfreq"], color="#7c3aed")
ax.set_title("Stations selected for export")
ax.set_xlabel("Station")
ax.set_ylabel("Number of frequencies")
ax.grid(axis="y", alpha=0.25)
fig.tight_layout()

3. Choose a filename template

pycsamt.site.write_sites() renders filenames with a small template language. Common fields include:

{station}

Station name.

{index}

Zero-based position in the selected collection.

{lat}, {lon}, {elev}

Coordinates from the EDI header when available.

{chainage}

Optional profile distance when available.

A good export template is stable and collision-resistant. Prefixing the station with {index:03d} preserves selection order and keeps filenames sorted in file browsers.

filename_template = "{index:03d}_{station}.edi"

expected_names = [
    filename_template.format(index=i, station=station)
    for i, station in enumerate(selected_table["station"])
]
print("Expected export filenames:")
print("\n".join(expected_names))

Expected export filenames:
000_18-015U.edi
001_18-008U.edi
002_18-003A.edi
003_18-016A.edi
004_18-025A.edi

4. Write selected EDI files and a manifest

write_sites creates the output directory if needed. exist_ok=True is appropriate for gallery builds and repeatable notebooks: rerunning the page refreshes the files instead of failing on existing outputs.

In production, consider leaving exist_ok=False until you are certain the destination is disposable. That protects previous handoff packages from accidental overwrite.

written_paths = write_sites(
    selected_sites,
    export_dir,
    template=filename_template,
    exist_ok=True,
    manifest_csv=manifest_csv,
)

print(f"Wrote {len(written_paths)} EDI file(s) to {export_dir}")
for path in written_paths:
    print(f"  {path}")
print(f"Manifest written to {manifest_csv}")

Wrote 5 EDI file(s) to site_gallery_exports/line18_first5
  site_gallery_exports/line18_first5/000_18-015U.edi
  site_gallery_exports/line18_first5/001_18-008U.edi
  site_gallery_exports/line18_first5/002_18-003A.edi
  site_gallery_exports/line18_first5/003_18-016A.edi
  site_gallery_exports/line18_first5/004_18-025A.edi
Manifest written to site_gallery_exports/line18_first5/manifest.csv

5. Inspect the manifest

The manifest is deliberately simple CSV. It records one row per exported station with enough metadata to audit the handoff:

index

Position in the selected collection.

station

Station name.

lat, lon, elev, chainage

Header metadata where available.

filename

Exported EDI filename.

path

Full path written by the export helper.

with manifest_csv.open("r", encoding="utf-8", newline="") as f:
    manifest_rows = list(csv.DictReader(f))

print(f"Manifest rows: {len(manifest_rows)}")
print("First manifest row:")
print(manifest_rows[0])

Manifest rows: 5
First manifest row:
{'index': '0', 'station': '18-015U', 'lat': '32.132933333333334', 'lon': '119.12875', 'elev': '103.0', 'chainage': 'nan', 'filename': '000_18-015U.edi', 'path': 'site_gallery_exports/line18_first5/000_18-015U.edi'}

The manifest can also be used as a cheap consistency check.

manifest_filenames = [row["filename"] for row in manifest_rows]
written_filenames = [path.name for path in written_paths]

if manifest_filenames != written_filenames:
    raise RuntimeError("Manifest filenames do not match written files.")

print("Manifest filenames match written files.")

Manifest filenames match written files.

6. Package the same subset into a zip archive

pack_zip writes the selected sites to a temporary directory first, then compresses the rendered EDI files into a zip archive. The source survey and the directory export above are not modified.

zip_path = pack_zip(
    selected_sites,
    archive_path,
    template=filename_template,
    manifest_csv=archive_manifest_csv,
)

print(f"Archive written to {zip_path}")
print(f"Archive manifest written to {archive_manifest_csv}")

Archive written to site_gallery_exports/line18_first5.zip
Archive manifest written to site_gallery_exports/line18_first5_zip_manifest.csv

Inspect the archive contents using Python’s standard zipfile module. This is a good habit in automated examples because it catches empty archives and filename-template mistakes.

with zipfile.ZipFile(zip_path, "r") as zf:
    archive_names = sorted(zf.namelist())

print("Archive members:")
print("\n".join(archive_names))

if archive_names != sorted(written_filenames):
    raise RuntimeError(
        "Zip archive contents do not match the directory export."
    )

print("Archive contents match the directory export.")

Archive members:
000_18-015U.edi
001_18-008U.edi
002_18-003A.edi
003_18-016A.edi
004_18-025A.edi
Archive contents match the directory export.

7. Reload the exported directory

A practical final verification is to load the exported directory back into pyCSAMT. This confirms that the written EDI files are visible to the same loader used by normal workflows.

reloaded_sites = ensure_sites(export_dir, recursive=False, verbose=0)
reloaded_table = SitesReport(reloaded_sites).to_dataframe()

print(f"Reloaded exported stations: {len(reloaded_sites)}")
print(
    reloaded_table[["station", "nfreq", "freq_min", "freq_max"]].to_string(
        index=False
    )
)

if len(reloaded_sites) != len(selected_sites):
    raise RuntimeError(
        "Reloaded station count does not match selected station count."
    )

Reloaded exported stations: 5
    station  nfreq  freq_min  freq_max
001_18-008U     53     1.008   10400.0
004_18-025A     53     1.008   10400.0
002_18-003A     53     1.008   10400.0
003_18-016A     53     1.008   10400.0
000_18-015U     53     1.008   10400.0

8. What to keep from this pattern

For a robust handoff workflow, keep four ideas:

1. select first, export second;

2. use explicit filename templates;

3. always write a manifest;

4. verify the exported package, either by inspecting the zip contents or by loading the exported directory back into ensure_sites().

This makes the export reproducible for the next developer, reviewer, or processing notebook that consumes the selected site collection.
