14.3. Channels and Orientation#

A transfer function is a matrix, but the matrix only means something once its rows and columns are tied to physical channels. ChannelMeta describes one measured channel – field type, orientation angle, and sensor position – and SiteLayout groups the full set of input and output channels that define a station’s measurement geometry. OrientationMeta then records how the data – the transfer-function matrix itself – relates to geographic north, independently of that physical geometry. Both are format-neutral metadata, mapping to EMTF XML’s <SiteLayout> and <Orientation>/<RotationInfo> elements and populated identically whether the source was EDI or XML.

Keeping site layout and orientation as two separate classes is deliberate, not incidental. As OrientationMeta’s own docstring states: it describes the orientation of the data, not the physical sensor geometry, so that a transfer function can later be rotated for processing while the physical channel layout it was actually measured with stays exactly as recorded. Rotation is scientific processing; SiteLayout is a historical fact about where the sensors sat.

14.3.1. Reading a Real Site Layout#

data/gv_data/xml/gv100.xml – the real Gabbs Valley document already used in Provenance and Bibliography – carries a <SiteLayout> block with the standard MT convention: the two horizontal magnetic channels as input, and the vertical magnetic plus both electric dipoles as output.

Note

Public-domain USGS data; see Provenance and Bibliography for the required citation.

>>> from pycsamt.emtf import EMTF

>>> tf_gv = EMTF.from_xml("data/gv_data/xml/gv100.xml")
>>> layout = tf_gv.site_layout
>>> print(layout.input_names, layout.output_names)
('Hx', 'Hy') ('Hz', 'Ex', 'Ey')
>>> print(layout.n_input, layout.n_output)
2 3

>>> hx = layout.get_channel("Hx")
>>> print(hx)
ChannelMeta(name='Hx', field_type='magnetic', orientation=-12.5, tilt=None, x=0.0, y=0.0, z=0.0, x2=None, ...)

>>> ex = layout.get_channel("Ex", role="output")
>>> print(ex)
ChannelMeta(name='Ex', field_type='electric', orientation=347.459250694624, tilt=None, x=0.0, y=0.0, z=0.0, x2=50.8, ...)
>>> print(ex.is_electric, ex.has_second_endpoint)
True True
>>> print(hx.has_second_endpoint)
False

get_channel() searches both groups by default; role="output" above restricts the search when a name could exist on either side (it cannot here, but a symmetric processing scheme might reuse a name). has_second_endpoint is True for Ex because an electric dipole has two electrodes – the real x2=50.8 above is the second electrode’s position 50.8 m from the first along the local x axis – while a magnetic coil is a point sensor and never carries x2/y2/z2.

Not every field the real station recorded made it into ChannelMeta, and that is also by design. The vertical channel’s free-text field notes elsewhere in the same document say gv100a.hz.measurement_tilt = 90.0 – physically correct, a vertical coil – but the structured <SiteLayout> element’s <Magnetic name="Hz" .../> tag carries no tilt attribute at all, so ChannelMeta leaves it unset instead of inferring 90° from the channel’s name:

>>> hz = layout.get_channel("Hz")
>>> print(hz.tilt)
None

14.3.2. Field Types and Manual Construction#

field_type accepts common aliases – "e"/"electric", "h"/"b"/"magnetic", "other" – and normalizes them to one of three canonical values at construction:

>>> from pycsamt.metadata import ChannelMeta, SiteLayout

>>> manual = ChannelMeta(name="Hx", field_type="h", orientation=-12.5, x=0.0, y=0.0, z=0.0)
>>> print(manual.field_type)
magnetic

>>> try:
...     ChannelMeta(name="Bad", field_type="unknown")
... except ValueError as exc:
...     print(type(exc).__name__, exc)
ValueError field_type must describe electric, magnetic, or other data

SiteLayout rejects a channel name that collides case-insensitively with another channel in the same group – the same identity discipline as Station identity applied one level down, at the channel rather than the station:

>>> try:
...     SiteLayout(
...         input_channels=[
...             ChannelMeta(name="Hx", field_type="h"),
...             ChannelMeta(name="hx", field_type="h"),
...         ]
...     )
... except ValueError as exc:
...     print(type(exc).__name__, exc)
ValueError duplicate channel name in input_channels

14.3.3. Two Real Layouts Compared#

The WILLY L18 EDI line used throughout Site and Survey Metadata has the same input/output structure as the Gabbs Valley XML document, despite coming from an unrelated survey and a different processing chain:

>>> from pathlib import Path
>>> from pycsamt.seg.edi import EDIFile

>>> edi = EDIFile(Path("data/AMT/WILLY_DATA/L18PLT/18-001A.edi"))
>>> tf_willy = EMTF.from_edi(edi)
>>> print(tf_willy.site_layout.input_names, tf_willy.site_layout.output_names)
('Hx', 'Hy') ('Hz', 'Ex', 'Ey')

The figure below plots each station’s horizontal channel orientations on a compass, magnetic channels solid/dashed in blue and electric channels solid/dashed in red at a shorter radius so a near-identical direction does not hide one arrow behind the other:

import numpy as np
import matplotlib.pyplot as plt

def channel_angles(layout):
    out = {}
    for group in (layout.input_channels, layout.output_channels):
        for ch in group:
            if ch.name.lower() != "hz" and ch.orientation is not None:
                out[ch.name] = ch.orientation
    return out

gv_angles = channel_angles(tf_gv.site_layout)
willy_angles = channel_angles(tf_willy.site_layout)

radius = {"Hx": 1.0, "Hy": 1.0, "Ex": 0.62, "Ey": 0.62}
colors = {"Hx": "#1f77b4", "Hy": "#1f77b4", "Ex": "#d62728", "Ey": "#d62728"}
styles = {"Hx": "-", "Ex": "-", "Hy": "--", "Ey": "--"}

fig, axes = plt.subplots(1, 2, figsize=(9, 5), subplot_kw={"projection": "polar"})
for ax, angles, title in zip(
    axes,
    (gv_angles, willy_angles),
    ("gv100 (Gabbs Valley, XML)", "18-001A (WILLY L18, EDI)"),
):
    ax.set_theta_zero_location("N")
    ax.set_theta_direction(-1)
    for name, angle in angles.items():
        theta = np.deg2rad(angle)
        r = radius[name]
        ax.annotate(
            "", xy=(theta, r), xytext=(0, 0),
            arrowprops=dict(arrowstyle="-|>", color=colors[name], lw=2, ls=styles[name]),
        )
        ax.text(theta, r + 0.18, f"{name} {angle:.1f}°", ha="center", va="center",
                 fontsize=8, color=colors[name])
    ax.set_ylim(0, 1.4)
    ax.set_yticklabels([])
    ax.set_title(title, fontsize=10, pad=24)
fig.tight_layout()

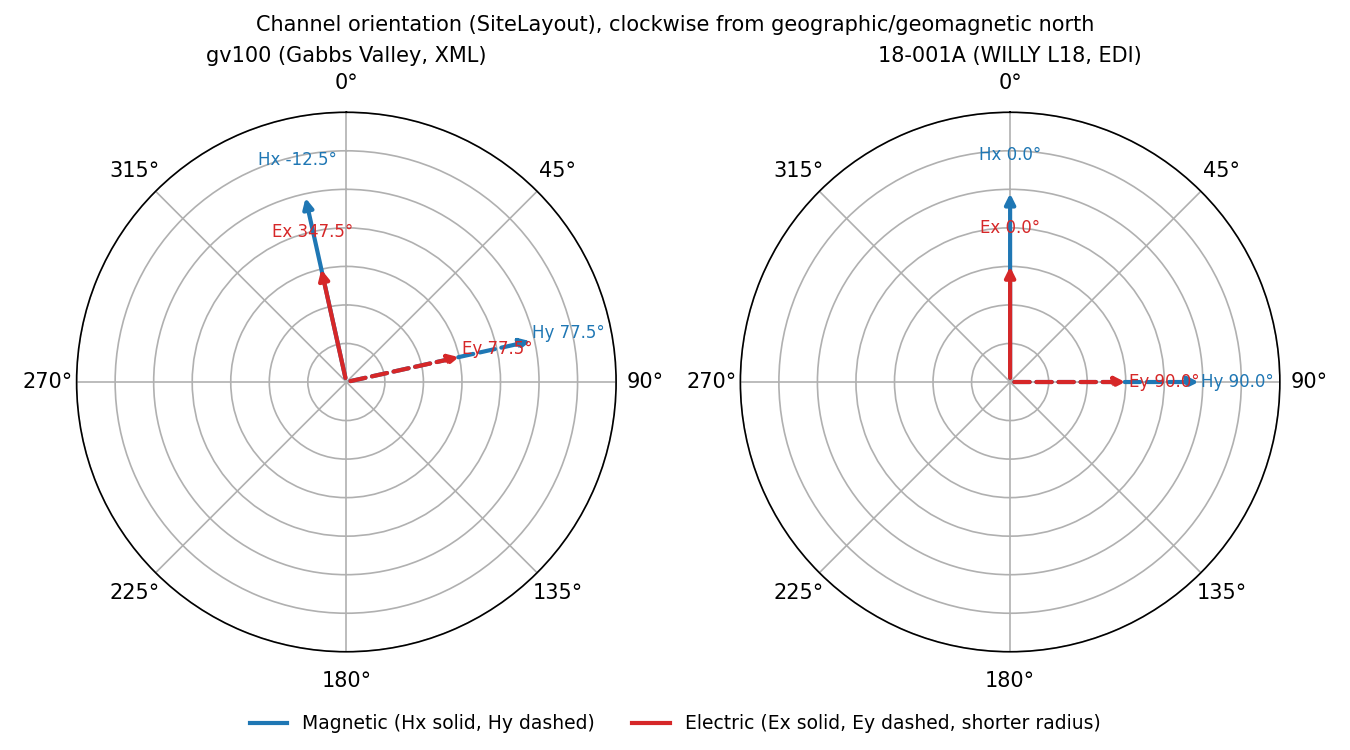

Two compass plots comparing magnetic (blue) and electric (red) channel orientations for the gv100 and 18-001A stations, with electric arrows drawn at a shorter radius so overlapping directions remain visible.

Horizontal channel orientations for both real stations. In each case Ex points in almost exactly the same direction as Hx, and Ey almost exactly matches Hy – the electric dipoles were laid out along the same reference axes as the magnetic coils.#

The two stations differ in how exact that agreement is. WILLY’s Hx/Ex are both precisely \(0^\circ\) and Hy/Ey both precisely \(90^\circ\) – a nominal orthogonal layout with no measured deviation recorded. Gabbs Valley’s Hx sits at \(-12.5^\circ\) while Ex sits at \(347.459250694624^\circ \equiv -12.540749^\circ\), a real \(0.04^\circ\) difference consistent with as-built electrode placement not landing on the coil azimuth exactly – the kind of small, genuine field tolerance a nominal-only layout would hide.

14.3.4. Orientation Mode and Rotation History#

Neither real document declares an explicit orientation mode:

>>> print(tf_gv.orientation)
OrientationMeta(mode=None, angle_to_geographic_north=None, rotation_info='EDI ZROT is constant at 347.5 deg relative to...', extra=dict(len=0, keys=[]))
>>> print(tf_gv.orientation.is_orthogonal, tf_gv.orientation.follows_site_layout)
False False

>>> print(tf_willy.orientation)
OrientationMeta(mode=None, angle_to_geographic_north=None, rotation_info='EDI ZROT is constant at 0 deg relative to HEA...', extra=dict(len=5, keys=['edi_coordsys', 'edi_had_zrot', 'edi_had_trot', ...]))

Both carry a human-readable rotation_info instead: the EDI adapter recognized a constant ZROT in each file but, because neither file’s HEAD.COORDSYS says "geographic" (Gabbs Valley says "Geomagnetic North"), it declined to promote that angle into angle_to_geographic_north – exactly the pattern already seen in Provenance and Bibliography. Since mode is None rather than either recognized value, both convenience properties correctly report False for both stations: pycsamt does not guess that an undeclared mode means “probably orthogonal.”

Constructing OrientationMeta directly shows the accepted modes and the one constraint tying them to angle_to_geographic_north:

>>> from pycsamt.metadata import OrientationMeta

>>> layout_mode = OrientationMeta(mode="site_layout")
>>> print(layout_mode.mode, layout_mode.follows_site_layout)
sitelayout True

>>> orthogonal_mode = OrientationMeta(mode="orthogonal", angle_to_geographic_north=12.3)
>>> print(orthogonal_mode.mode, orthogonal_mode.is_orthogonal, orthogonal_mode.angle_to_geographic_north)
orthogonal True 12.3

>>> try:
...     OrientationMeta(mode="sitelayout", angle_to_geographic_north=10.0)
... except ValueError as exc:
...     print(type(exc).__name__, exc)
ValueError sitelayout orientation is defined by channel geometry; angle_to_geographic_north must be None

"site_layout"/"site-layout"/"layout" are accepted spellings that all normalize to "sitelayout". The last error is a real consistency check, not pedantry: "sitelayout" mode means the transfer function is still expressed in the physical channel frame recorded by SiteLayout, so an additional rotation angle to geographic north would describe two contradictory things at once.

14.3.5. Choosing the Right Object#

Need

Object

Notes

One channel’s field type, orientation, and geometry

ChannelMeta

x2/y2/z2 set only for dipoles (see has_second_endpoint).

The full set of channels a matrix’s axes are defined against

SiteLayout

Rejects duplicate names within a group; look up with get_channel().

How the transfer-function matrix relates to geographic north

OrientationMeta

Independent of physical geometry; mode is never guessed from other fields.
