5.4. Terrain Overlays on Section Axes#

pycsamt.topo.overlay is the last stop before a figure leaves this package: it takes an axes that already has data plotted on it and draws terrain on top. draw_topo_section() targets a depth section whose axes already represents absolute elevation in terrain-following coordinates – the kind Draping Flat Grids Over Terrain builds – filling the above-surface polygon, drawing the terrain polyline, and placing station pins at the real terrain elevation. draw_topo_strip() targets the opposite case, a flat period-vs-station pseudosection with no elevation axis at all, and inserts a compact elevation profile above it instead. add_station_labels() is a small, standalone label helper neither of the other two calls internally. All three read TopoConfig for styling and delegate marker/label placement to pycsamt.api.station.PYCSAMT_STATION_RENDERING, the same rendering config used by pyCSAMT’s other section plots.

5.4.1. Set the axes limits first#

draw_topo_section fills everything between the terrain surface and the top of the axes’ current y-limits – it reads ax.get_ylim() at call time to know where “above the surface” ends. If it runs before anything has set a sensible range, it inherits whatever Matplotlib’s default axes happens to have, which is (0.0, 1.0):

>>> fig, ax = plt.subplots()
>>> ax.get_ylim()
(0.0, 1.0)

Calling draw_topo_section against that default, then only afterward setting the intended limits, leaves the fill polygon locked to the stale range it was drawn with – Matplotlib’s autoscaling nudges the data limits to fit the new artists, but it does not retroactively redraw a polygon that already used the old y_top:

>>> from pycsamt.topo import draw_topo_section

>>> fig, (ax_wrong, ax_right) = plt.subplots(
...     1, 2, figsize=(11.5, 4.2), constrained_layout=True,
... )

>>> draw_topo_section(ax_wrong, chain_km, elev_m, names)
>>> _ = ax_wrong.set_xlim(chain_km[0], chain_km[-1])
>>> _ = ax_wrong.set_title("Called before ax.set_ylim(...)")
>>> ax_wrong.get_ylim()
(-0.01115, 1.04815)

>>> _ = ax_right.set_xlim(chain_km[0], chain_km[-1])
>>> _ = ax_right.set_ylim(elev_km.min() - 0.02, elev_km.max() + 0.05)
>>> draw_topo_section(ax_right, chain_km, elev_m, names)
>>> _ = ax_right.set_title("Called after ax.set_ylim(...)")
>>> ax_right.get_ylim()
(0.016999999999999998, 0.194)

>>> _ = ax_wrong.set_xlabel("Profile distance (km)")
>>> _ = ax_wrong.set_ylabel("Elevation (km)")
>>> _ = ax_right.set_xlabel("Profile distance (km)")
>>> _ = ax_right.set_ylabel("Elevation (km)")
>>> fig.savefig("overlay_ylim_order.png", dpi=170, bbox_inches="tight")

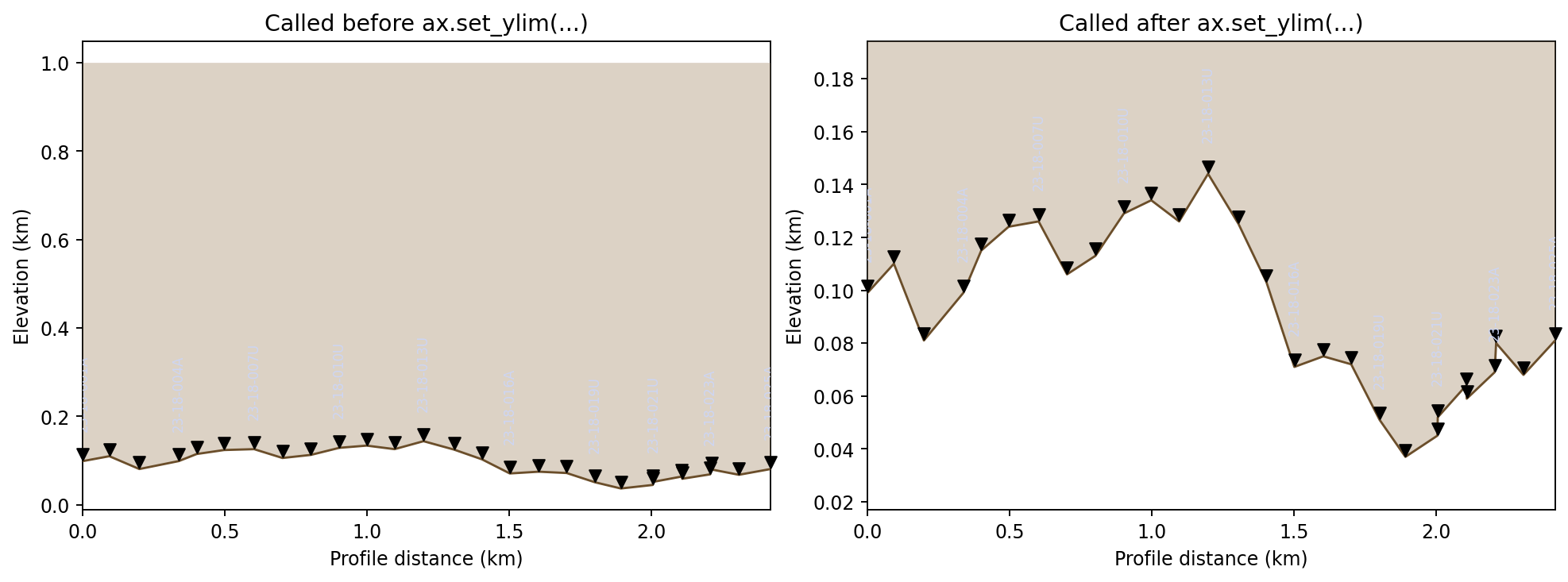

Two panels comparing draw_topo_section called before versus after ax.set_ylim, the first showing an oversized fill polygon reaching up to 1.0.

Left: draw_topo_section ran while the axes still had Matplotlib’s default (0, 1) limits, so the fill polygon’s top edge is stuck at 1.0 – almost the entire panel above the terrain is shaded, and the rotated station labels are barely legible against it. Right: the same call, made after ax.set_ylim was set to the real elevation range, fills only the thin band actually above the terrain. This is why every combined example on the earlier pages set xlim/ylim before calling draw_topo_section – One-Call Topography-Embedded Sections’s plot_topo_section() does the same thing internally, in the same order, for exactly this reason.#

5.4.2. Station markers and label thinning#

Every station gets a marker; not every station gets a visible label. draw_topo_section draws all of them, but only writes text for a thinned subset chosen by pycsamt.api.station.StationAxisStyle.label_indices() – the same “nice step” thinning logic used by ordinary (non-terrain) section plots elsewhere in pyCSAMT, so a 28-station profile does not collapse into an unreadable stack of vertical text:

>>> fig, ax = plt.subplots(figsize=(9.5, 3.6))
>>> _ = ax.set_xlim(chain_km[0], chain_km[-1])
>>> _ = ax.set_ylim(elev_km.min() - 0.02, elev_km.max() + 0.05)
>>> draw_topo_section(ax, chain_km, elev_m, names)
>>> len(names), len(ax.collections[0].get_offsets()), len(ax.texts)
(28, 28, 10)

28 markers, 10 labels. The marker pins themselves sit a small distance above the terrain line, toward the top of the axes, so they do not visually merge with the polyline – but that distance, cfg.marker_pad_fraction (1.5% by default), is a fraction of the axes’ own y-range, not a fixed number of kilometres:

>>> from pycsamt.topo import TopoConfig

>>> fig, ax = plt.subplots()
>>> _ = ax.set_ylim(0.0, 0.3)
>>> draw_topo_section(ax, np.array([0.0, 1.0, 2.0]),
...                    np.array([100.0, 150.0, 120.0]), cfg=TopoConfig())
>>> pad_narrow = ax.collections[0].get_offsets()[0, 1] - 0.1
>>> pad_narrow
0.004500000000000004

>>> fig, ax = plt.subplots()
>>> _ = ax.set_ylim(0.0, 3.0)
>>> draw_topo_section(ax, np.array([0.0, 1.0, 2.0]),
...                    np.array([100.0, 150.0, 120.0]), cfg=TopoConfig())
>>> pad_wide = ax.collections[0].get_offsets()[0, 1] - 0.1
>>> pad_wide
0.04500000000000001

Widening the axes’ y-range by 10x widens the pad by the same 10x – 0.0045 km becomes 0.045 km – because a pin drawn a fixed number of kilometres above the terrain would look cramped on a zoomed-in section and disproportionately large on a zoomed-out one. Tying the pad to the axes’ own scale keeps it visually consistent regardless of how far in or out a particular figure happens to be zoomed.

5.4.3. The pseudosection strip: station index, not real distance#

draw_topo_strip solves a different problem: a period-vs-station pseudosection has no elevation axis at all, so there is nothing for draw_topo_section to draw onto. Instead, draw_topo_strip shrinks the existing axes, inserts a new one above it, and draws the elevation profile there against plain station index – not the chainage_km values its signature suggests:

>>> from pycsamt.topo import draw_topo_strip

>>> fig, ax = plt.subplots(figsize=(9.5, 3.0))
>>> before = ax.get_position()
>>> round(before.height, 4)
0.77
>>> fake_chainage = np.full(len(elev_m), 999.0)  # length matches, values don't
>>> ax_strip = draw_topo_strip(fig, ax, fake_chainage, elev_m, names)
>>> round(ax.get_position().height, 4)
0.6314
>>> ax_strip.lines[0].get_xdata()[:5]
array([0, 1, 2, 3, 4])

Every value in fake_chainage was 999.0, and the strip still plotted [0, 1, 2, 3, 4, ...]. Only len(chainage_km) is used – to build x_idx = np.arange(n) – because a pseudosection’s x-axis is already station order, not physical distance, and the strip has to match it exactly to stay aligned underneath. Real chainage only matters for a genuine distance axis, which is what draw_topo_section is for.

The resize is a real, stateful side effect on main_ax, not a cosmetic default – calling draw_topo_strip a second time on the same axes shrinks it again, compounding:

>>> round(ax.get_position().height / before.height, 4)
0.82
>>> ax_strip2 = draw_topo_strip(fig, ax, fake_chainage, elev_m, names)
>>> round(ax.get_position().height / before.height, 4)
0.6724

0.82 the first time, 0.82² the second – each call assumes it is the only one shrinking main_ax, so calling it twice (for example, once per redraw in an interactive session without recreating the figure) silently produces two overlapping strips rather than one. Build the figure fresh, or call it exactly once per axes.

A full strip, over a synthetic apparent-resistivity pseudosection with the real L18PLT terrain above it, shows the intended result:

>>> rng = np.random.default_rng(4)
>>> n_periods = 24
>>> pseudo = 1.0 + 1.5 * rng.random((n_periods, len(names)))
>>> pseudo += 0.6 * np.sin(np.linspace(0, 3.1, len(names)))[None, :]
>>> from scipy.ndimage import gaussian_filter
>>> pseudo = gaussian_filter(pseudo, sigma=(1.4, 1.4))

>>> fig, ax = plt.subplots(figsize=(9.5, 4.2))
>>> im = ax.imshow(
...     pseudo, aspect="auto", cmap="jet_r", vmin=1.2, vmax=2.6,
...     extent=[-0.5, len(names) - 0.5, n_periods - 0.5, -0.5],
... )
>>> _ = ax.set_xlabel("Station index")
>>> _ = ax.set_ylabel("Period index (short -> long)")
>>> _ = ax.set_title("Synthetic apparent-resistivity pseudosection")
>>> _ = fig.colorbar(im, ax=ax, label=r"$\log_{10}\rho_a$", shrink=0.85)

>>> ax_strip = draw_topo_strip(fig, ax, chain_km, elev_m, names)
>>> fig.savefig("overlay_topo_strip.png", dpi=170, bbox_inches="tight")

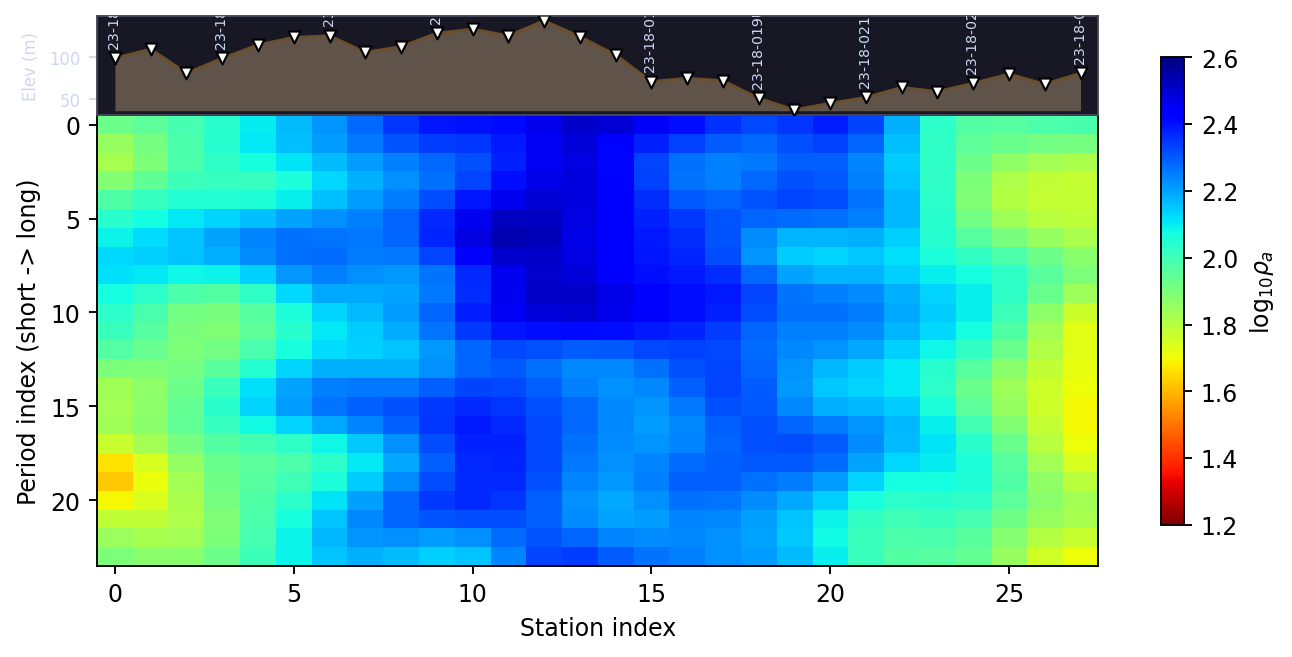

A synthetic period-vs-station pseudosection with a dark elevation strip inserted above it, showing the same L18PLT terrain profile from earlier pages.

This is the same terrain shape traced in Extracting Station Topography’s elevation profile and again as the black line in Terrain-Following Coordinates’s comparison figure – climbing toward station 013U near the middle of the line, then dropping toward the low point past station 019U. The pseudosection below it uses no elevation information at all; the strip exists purely to give a reader the same terrain context a true depth section would carry for free.#

5.4.4. A plain label helper#

add_station_labels() is not called by either function above – it is a small, self-contained convenience for custom figures that want draw_topo_section-style rotated labels without the fill polygon, marker pins, or the rest of the overlay machinery. Its offset convention is deliberately simpler, too: a fixed number of kilometres above each point, regardless of the axes’ scale, rather than a fraction of the y-range:

>>> from pycsamt.topo import add_station_labels

>>> fig, ax = plt.subplots()
>>> _ = ax.set_ylim(0.0, 0.3)
>>> add_station_labels(ax, chain_km[:3], elev_km[:3], names[:3])
>>> ax.texts[0].get_position()[1] - elev_km[0]
0.05000000000000002

A caller who wants the axes-relative padding draw_topo_section uses needs to compute it the same way draw_topo_section does – TopoConfig.marker_pad_fraction times the axes’ y-range – before passing it in as offset_km.

That completes pycsamt.topo’s individual building blocks: Extracting Station Topography reads real elevation out of a survey, Draping Flat Grids Over Terrain warps a flat grid to match it, and this page draws the terrain and stations on top of the result. One-Call Topography-Embedded Sections is where they stop being separate calls – plot_topo_section() chains all three (plus a growing set of model adapters for Occam2D, ModEM, and AI inversion results) behind one function, in the same order and with the same axes-limit discipline this page just walked through by hand.
