11.16. MobileMT Admittance, Apparent Conductivity, And Skew Diagnostics#

Every method covered so far in this section – AFMAG Tilt-Angle Diagnostics And Motion-Coupling Physics and ZTEM Total-Divergence, Phase-Rotation, And Map-View Diagnostics – is, once the ground reference is fixed, a magnetic-field-to-magnetic-field transfer function: a tipper or an interstation tensor, never an impedance. MobileMT (Prikhodko et al. 2022) breaks that pattern deliberately: its ground reference is a fixed electric dipole pair (\(E_x, E_y\)) rather than a second magnetic station, giving a complex admittance tensor that is the reciprocal of the classical MT impedance, \(Y = Z^{-1}\), in the limit where the airborne and ground sensors are co-located. Airborne Natural-Source EM: AFMAG, ZTEM, And MobileMT derives this relationship in full, including the theoretical apparent-conductivity formula this page uses; this page focuses on the practical side – loading real MobileMT data, reading its admittance and derived diagnostics, and interpreting them on two synthetic surveys.

pycsamt.emtools.mobilemt carries MobileMT data through AirborneEMDataset rather than through Site, for the same reason ZTEM/AFMAG avoid the EDI bridge: an EDI file has nowhere honest to put a ground electric reference alongside an airborne magnetic response. ensure_mobilemt_dataset() accepts an AirborneEMDataset/ AirborneEMLine directly, or anything ensure_asites() does – an AirborneSites/ AirborneSite, or a bare path/directory of EMTF-XML files – regrouping the latter into flight lines automatically.

Two synthetic sample surveys, committed under data/mobileMT/, demonstrate this page: flammefjeld_greenland, loosely inspired by Zhdanov et al. (2024)’s MobileMT/TMI survey over a Climax-style porphyry molybdenum-copper breccia pipe in East Greenland, and timiskaming_kimberlite_on, loosely inspired by Prikhodko et al. (2022)’s survey over the KL-22 kimberlite pipe at Lake Timiskaming, Ontario. Both are single 12-station flight lines sampled at the same ten log-spaced frequencies from 25 Hz to 12,000 Hz:

>>> from pycsamt.emtools.mobilemt import ensure_mobilemt_dataset
>>> flammefjeld = ensure_mobilemt_dataset("data/mobileMT/flammefjeld_greenland")
>>> flammefjeld.n_records
12
>>> line = next(flammefjeld.iter_lines())
>>> line.navigation.sample_ids
('FL_001', 'FL_002', 'FL_003', 'FL_004', 'FL_005', 'FL_006', 'FL_007', 'FL_008', 'FL_009', 'FL_010', 'FL_011', 'FL_012')

11.16.1. Admittance Along The Flight Line#

admittance_table() reads every sample’s admittance tensor into one tidy table – real/imaginary parts of the horizontal 2x2 block (\(Y_{xx}, Y_{xy}, Y_{yx}, Y_{yy}\)) and the vertical-field row (\(Y_{hzx}, Y_{hzy}\)), plus the vendor-delivered native apparent conductivity when present:

>>> from pycsamt.emtools.mobilemt import admittance_table
>>> df = admittance_table(flammefjeld)
>>> df.shape
(120, 18)
>>> df.columns.tolist()
['line_id', 'sample_id', 'x_m', 'freq_hz', 'period_s', 'Yxx_real', 'Yxx_imag', 'Yxy_real', 'Yxy_imag', 'Yyx_real', 'Yyx_imag', 'Yyy_real', 'Yyy_imag', 'Yhzx_real', 'Yhzx_imag', 'Yhzy_real', 'Yhzy_imag', 'apparent_conductivity_native_Sm']

12 stations x 10 frequencies gives 120 rows, one admittance tensor each. plot_mobilemt_admittance_profile() plots any one entry – or, with component="det", the horizontal 2x2 determinant that the apparent-conductivity formula below is built from – along the flight line at a chosen frequency:

>>> from pycsamt.emtools.mobilemt import plot_mobilemt_admittance_profile
>>> ax = plot_mobilemt_admittance_profile(flammefjeld, component="det", part="abs", frequency_hz=390.0)
>>> ax.figure.savefig("user-guide-emtools-mobilemt-01.png", dpi=200, bbox_inches="tight")
../../_images/user-guide-emtools-mobilemt-01.png

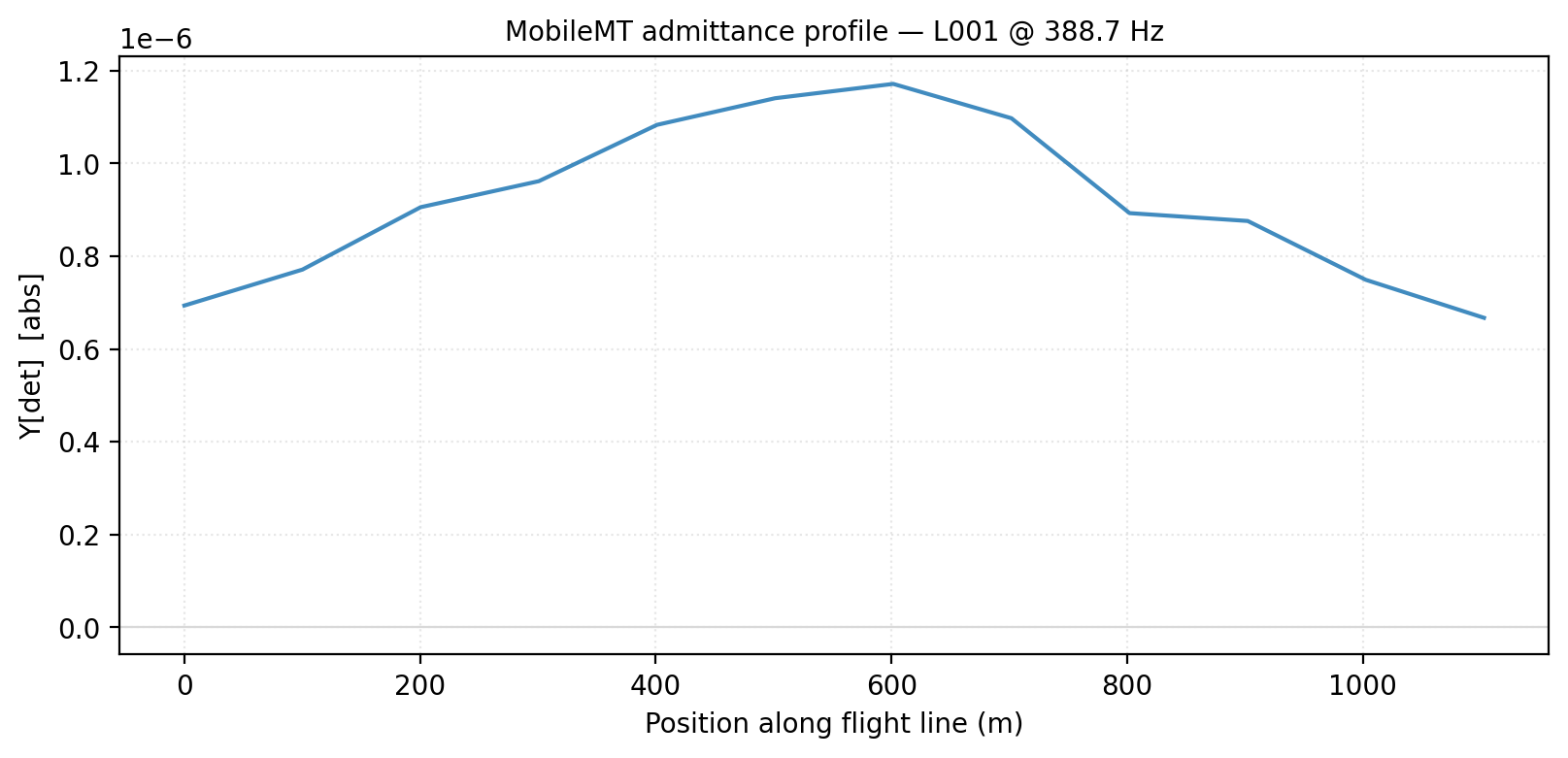

\(|\det Y|\) along the flight line at 388.7 Hz, flammefjeld_greenland.#

The determinant amplitude rises smoothly from the profile’s ends toward a broad maximum near 500-600 m and falls away again – the along-line signature of the synthetic conductive breccia-pipe target centred on the profile, not an instrument artefact or a sharp edge effect. Because \(|\det Y|\) scales with the inverse of resistivity (see (3)), a higher determinant here means lower resistivity, i.e. a more conductive subsurface directly beneath the peak.

11.16.2. Theoretical Apparent Conductivity Versus The Vendor-Delivered Product#

admittance_determinant_table() turns that determinant into a physical apparent conductivity and phase using (3), and reports the vendor-delivered native product alongside it for direct comparison:

>>> from pycsamt.emtools.mobilemt import admittance_determinant_table
>>> dfd = admittance_determinant_table(flammefjeld)
>>> target = sorted(dfd["freq_hz"].unique())[4]
>>> round(float(target), 1)
388.7
>>> sub = dfd[dfd["freq_hz"] == target].sort_values("x_m")
>>> sub["theoretical_rho_a_ohm_m"].round(0).tolist()
[742.0, 667.0, 568.0, 535.0, 475.0, 451.0, 439.0, 469.0, 576.0, 587.0, 687.0, 771.0]

At 388.7 Hz, the theoretical resistivity and the two conductivity columns read:

Sample

\(x\) (m)

\(\rho_a\) theoretical (\(\Omega\cdot\)m)

\(\sigma_a\) theoretical (S/m)

\(\sigma_a\) native (S/m)

FL_001

0

741.7

0.0013

0.0013

FL_002

100

667.1

0.0015

0.0014

FL_003

200

568.1

0.0018

0.0016

FL_004

301

534.9

0.0019

0.0019

FL_005

401

475.0

0.0021

0.0021

FL_006

501

451.1

0.0022

0.0023

FL_007

601

439.2

0.0023

0.0023

FL_008

702

468.8

0.0021

0.0021

FL_009

802

576.2

0.0017

0.0019

FL_010

902

587.3

0.0017

0.0016

FL_011

1002

686.8

0.0015

0.0015

FL_012

1103

771.1

0.0013

0.0013

The theoretical resistivity bottoms out at 439 \(\Omega\cdot\)m under station FL_007 (601 m along the line) against a host of roughly 740-770 \(\Omega\cdot\)m at the profile’s ends – consistent with Zhdanov et al. (2024)’s description of a conductive alteration halo over a resistive core, and close to the 800 \(\Omega\cdot\)m host value the synthetic model was built from. More importantly, theoretical_sigma_a_Sm (pyCSAMT’s own co-located-sensor-limit formula) and apparent_conductivity_native_Sm (the vendor-delivered field, read back from the survey file) agree to within a few percent at every station – exactly what (3)’s derivation predicts, and a useful sanity check to run on any new delivery before trusting either column.

Note

apparent_conductivity_native_Sm is recovered from EMTF.metadata["notes"]["MobileMT"]["ApparentConductivitySm"] – the one part of an EMTF-XML document that survives a write/read round trip losslessly as free text, since fields (an in-memory-only attribute) has no EMTF-XML representation of its own. A real vendor delivery that stores its processed conductivity elsewhere in the file, or not at all, will report nan in this column rather than raise an error – always check for that before comparing it against the theoretical column.

plot_mobilemt_conductivity_psection() images either source as a station-versus-log-period pseudosection. Plotting both with the same colour limits makes the agreement visible directly rather than only in the table above:

>>> from pycsamt.emtools.mobilemt import plot_mobilemt_conductivity_psection
>>> import matplotlib.pyplot as plt
>>> fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(15.0, 5.2), sharey=True)
>>> _ = plot_mobilemt_conductivity_psection(flammefjeld, source="theoretical", clim=(0.0012, 0.0023), ax=ax1)
>>> _ = plot_mobilemt_conductivity_psection(flammefjeld, source="native", clim=(0.0012, 0.0023), ax=ax2)
>>> fig.savefig("user-guide-emtools-mobilemt-02.png", dpi=200, bbox_inches="tight")
../../_images/user-guide-emtools-mobilemt-02.png

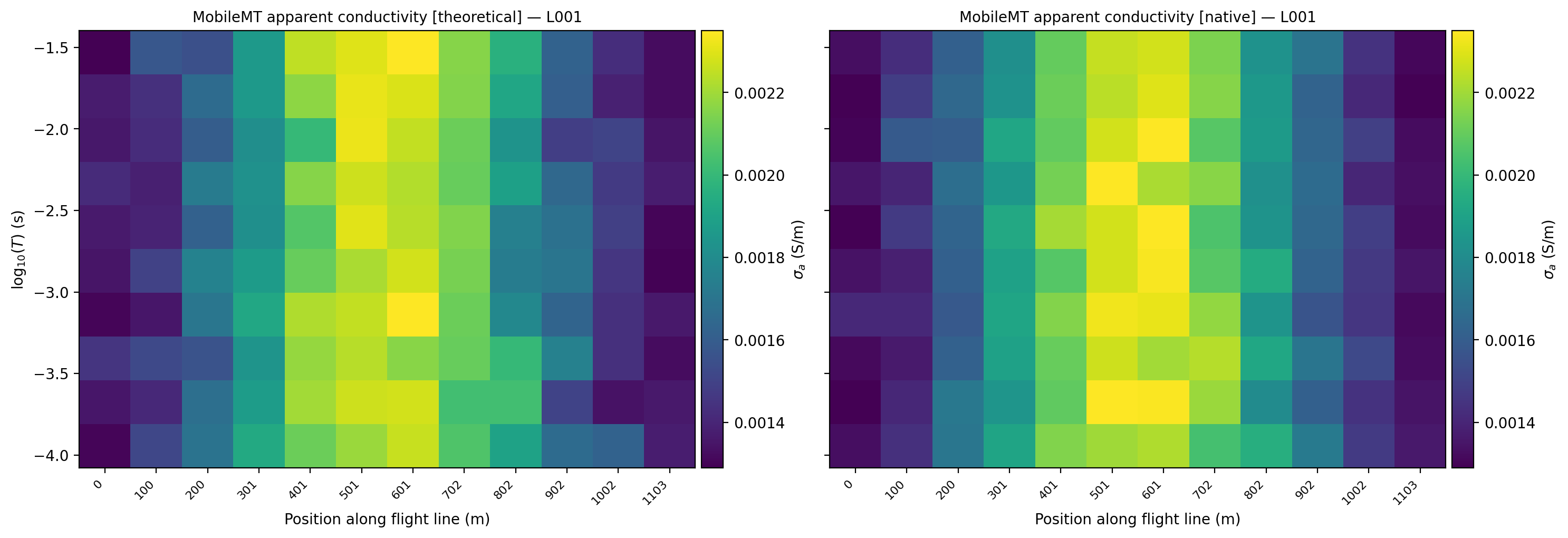

Apparent conductivity, flammefjeld_greenland: pyCSAMT’s theoretical determinant formula (left) against the vendor-delivered native field (right), same colour scale.#

The two panels are visually indistinguishable: the same bright, conductive band sits over stations FL_005-FL_008 in both, at every period. That agreement is the practical payoff of (3)’s co-located-sensor derivation – when it holds, either column is a reliable apparent-conductivity product, and disagreement between them on a real survey is itself a diagnostic (of a genuinely non-co-located reference geometry, or of a processing difference) worth investigating rather than ignoring.

11.16.3. Skew: Departure From An Ideal Admittance Tensor#

admittance_skew_table() applies a Swift (1967)-style skew ratio to the horizontal 2x2 admittance sub-block, (4) – the same diagnostic already used for the impedance tensor elsewhere in pyCSAMT (see Dimensionality, Distortion, And The Phase Tensor), by direct algebraic analogy. Unlike the apparent-conductivity formula above, skew needs no physical constant and is safe to compute from any admittance tensor, co-located or not:

>>> from pycsamt.emtools.mobilemt import admittance_skew_table, plot_mobilemt_skew_profile
>>> timiskaming = ensure_mobilemt_dataset("data/mobileMT/timiskaming_kimberlite_on")
>>> dfs = admittance_skew_table(timiskaming)
>>> round(float(dfs["skew"].mean()), 3), round(float(dfs["skew"].max()), 3)
(0.048, 0.105)
>>> ax = plot_mobilemt_skew_profile(timiskaming, frequency_hz=770.0)
>>> ax.figure.savefig("user-guide-emtools-mobilemt-03.png", dpi=200, bbox_inches="tight")
../../_images/user-guide-emtools-mobilemt-03.png

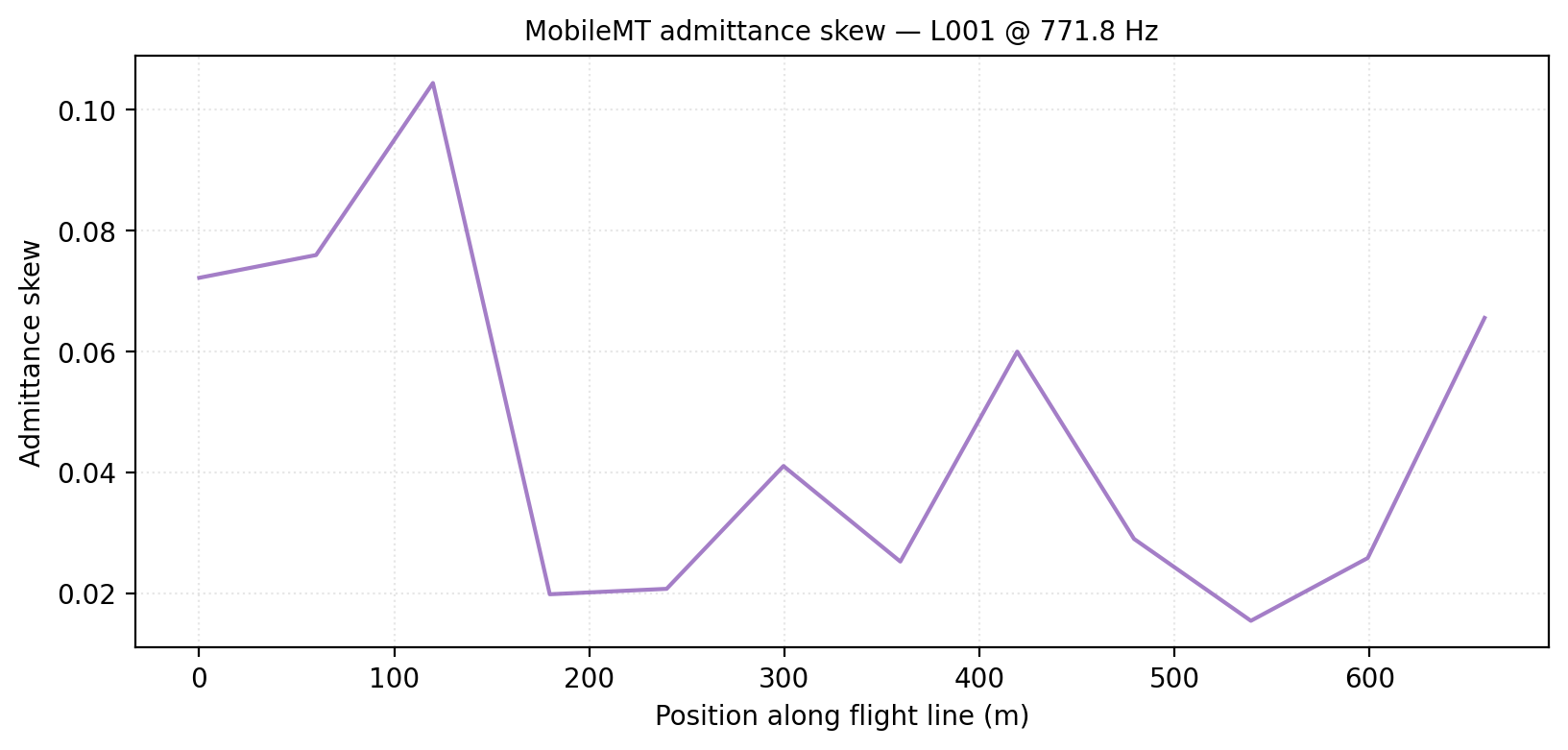

Admittance skew at 771.8 Hz, timiskaming_kimberlite_on.#

Unlike the apparent-conductivity pseudosections above, this profile has no clean relationship to the kimberlite target centred near 300-360 m: it wanders between roughly 0.02 and 0.10 with no systematic dip or rise over the conductive zone. That is expected, not a defect – timiskaming_kimberlite_on’s diagonal admittance terms are built from independent per-station, per-frequency synthetic noise rather than from any structural distortion tied to the target, so the skew here mostly measures that noise floor. On a real survey a skew profile that does track the target boundary would instead point to genuine 3-D structure, instrument coupling error, or a reference geometry departing from the co-located-sensor assumption – precisely the kind of departure (3)’s theoretical column cannot see, which is why the two diagnostics are worth reading together rather than in isolation.

11.16.4. Masking Outside The Usable Band#

mask_outside_mobilemt_band() reuses the survey’s own published usable bandwidth (MobileMTSystemSpec’s nominal_frequency_range_hz, 19-26,000 Hz by default) rather than inventing a QC band – the same mask-only pipeline contract flag_motion_susceptible_band() and mask_outside_ztem_band() already use. That default range comfortably covers every frequency in both synthetic surveys, so an explicit, narrower band shows the effect directly:

>>> from pycsamt.emtools.mobilemt import mask_outside_mobilemt_band
>>> masked = mask_outside_mobilemt_band(timiskaming, band_hz=(100.0, 3000.0))
>>> full_n = admittance_table(timiskaming)["apparent_conductivity_native_Sm"].notna().sum()
>>> masked_n = admittance_table(masked)["apparent_conductivity_native_Sm"].notna().sum()
>>> int(full_n), int(masked_n)
(120, 48)

120 finite samples (12 stations x 10 frequencies) drop to 48 (12 stations x 4 frequencies) once everything outside 100-3,000 Hz is masked to nan – the 25, 49.6, and 98.6 Hz rows (below the band) and the 3,043, 6,043, and 12,000 Hz rows (above it) are removed, leaving the four frequencies in between untouched:

>>> fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(15.0, 5.2), sharey=True)
>>> _ = plot_mobilemt_conductivity_psection(timiskaming, source="native", clim=(0.0032, 0.0056), ax=ax1)
>>> _ = plot_mobilemt_conductivity_psection(masked, source="native", clim=(0.0032, 0.0056), ax=ax2)
>>> fig.savefig("user-guide-emtools-mobilemt-04.png", dpi=200, bbox_inches="tight")
../../_images/user-guide-emtools-mobilemt-04.png

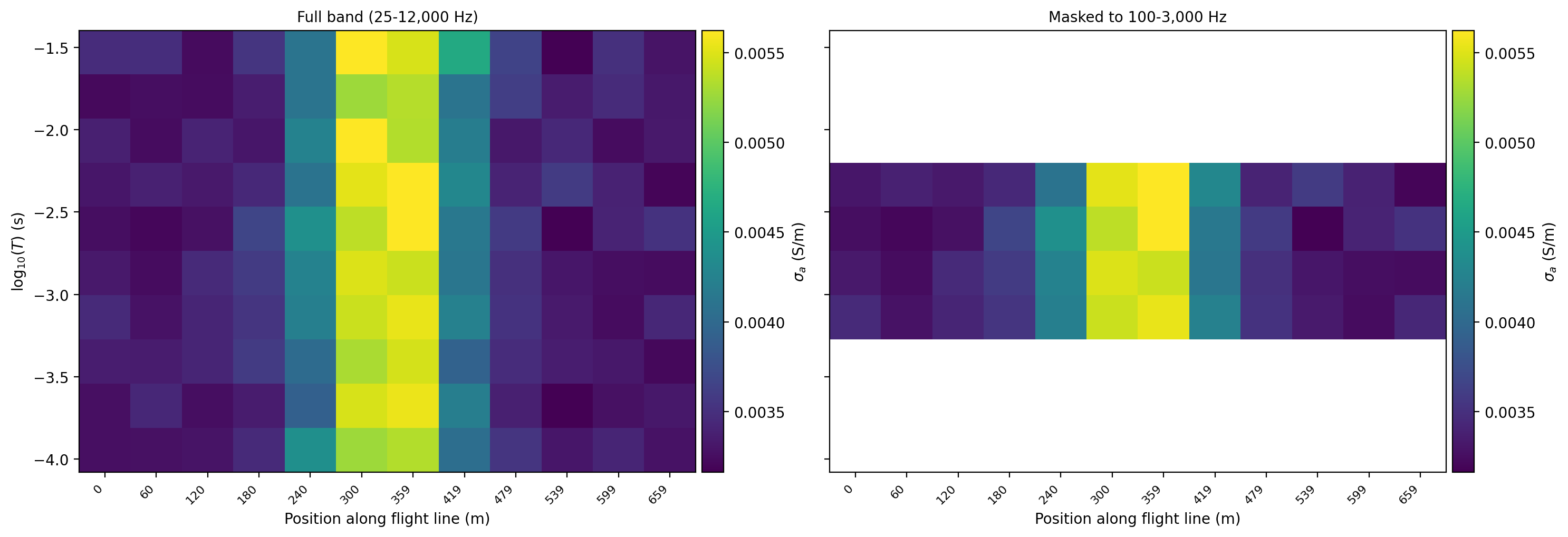

Native apparent conductivity, timiskaming_kimberlite_on: full band (left) against masked to 100-3,000 Hz (right). Blank rows are nan, not a fabricated zero.#

Masking never changes the frequency axis or drops a station – only value cells go blank, exactly the three low and three high rows numpy.ndarray.sum() counted above. This is deliberately mask-only rather than drop-then-rebuild: each AirborneEMRecord packages its admittance tensor alongside auxiliary per-frequency fields (native apparent conductivity, variance, covariances) around one shared period axis, and safely dropping frequencies would require reconstructing all of them consistently, which masking with nan avoids entirely.

Warning

Every file under data/mobileMT/ is synthetic, built by inverting a simple resistivity-vs-position model into an admittance tensor plus multiplicative noise – not a vendor delivery and not a reproduction of either cited paper’s actual field data. Each generated EMTF.description states this explicitly. No proprietary MobileMT archive format is parsed anywhere in pyCSAMT; pycsamt.airborne.mobilemt only maps already-decoded arrays onto the common model.

11.16.6. References#
